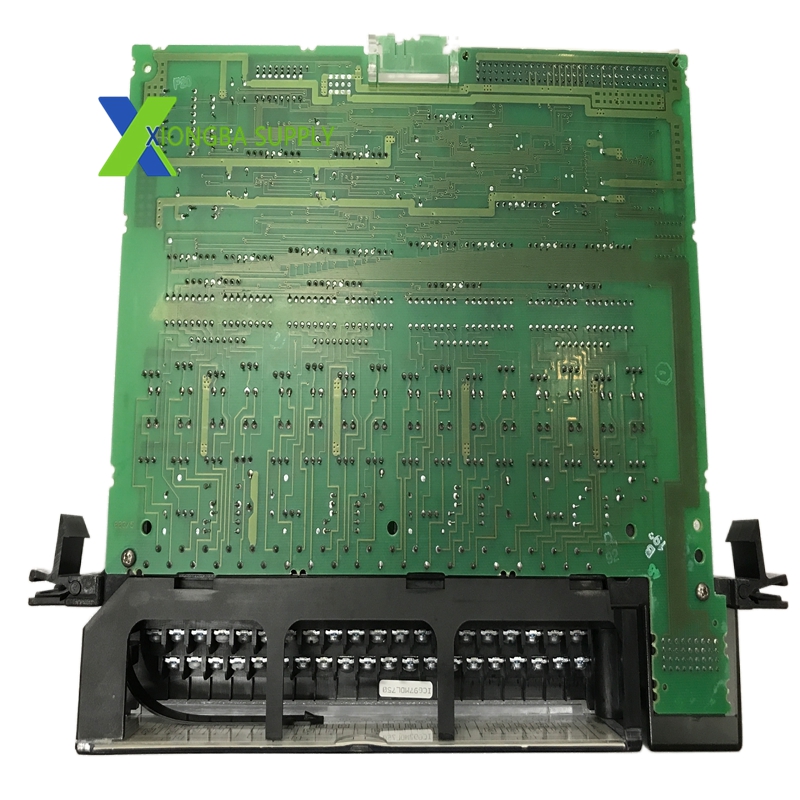

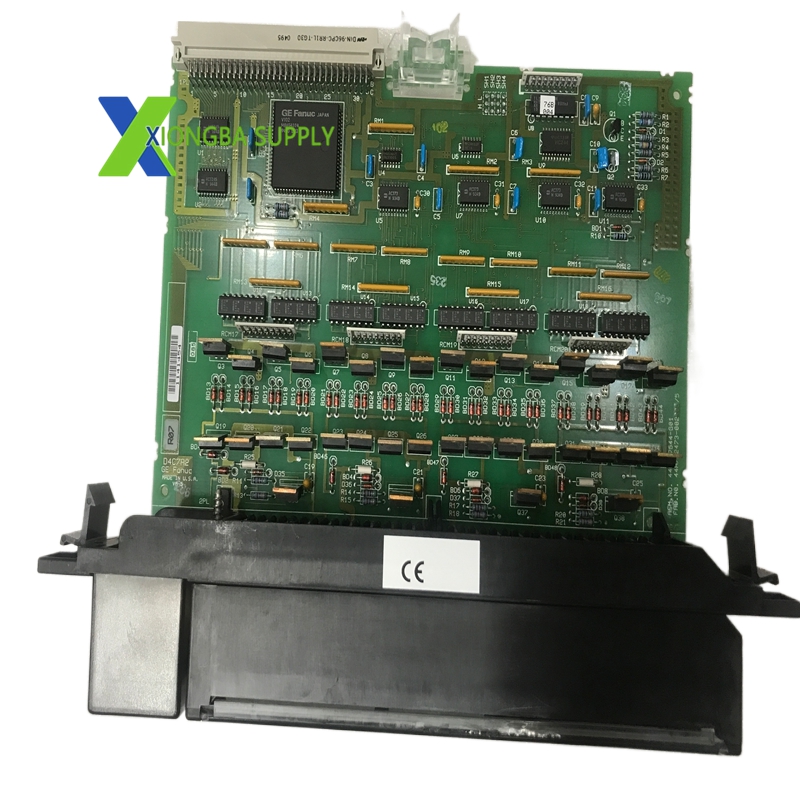

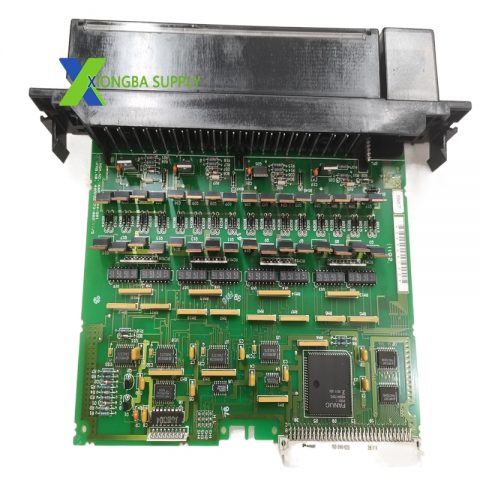

GE Fanuc (Emerson) IC697MDL750E Discrete Output Module

Technical Specifications

• Manufacturer: GE Fanuc (Emerson Automation)
• Series: 90-70 PLC Series
• Module Type: Discrete DC Output Module
• Output Configuration: 32 output points, divided into 4 isolated groups of 8 channels each
• Rated Voltage: 24 VDC / 48 VDC (configurable)
• Output Voltage Range: 20 VDC to 60 VDC
• Continuous Current Per Channel: 0.5 A
• Maximum Current Per Group: 2 A
• Maximum Inrush Current: 10 A for 20 ms (20x rated current)
• Output Voltage Drop: ≤ 1 V (2 Ω maximum)
• Response Time (On/Off): ≤ 1 ms
• Off-State Leakage Current: ≤ 1 mA
• Isolation Voltage:
  • Between outputs and backplane: 1500 VAC
  • Between output groups: 500 VAC
• Backplane Current Consumption: 0.25 A @ 5 VDC
• Dimensions (W × H × D): 180 mm × 180 mm × 30 mm
• Weight: Approximately 1.2 kg
• Operating Temperature: 0 °C to +55 °C
• Storage Temperature: -40 °C to +85 °C
• Humidity: 5% to 95% (non-condensing)

Key Features

1. High-Density Outputs: 32 channels provide extensive control capacity in a single slot, optimizing cabinet space.
2. High Inrush Capability: Withstands up to 10 A inrush current, ideal for driving inductive loads like solenoids and motor starters.
3. Group Isolation: Four electrically isolated groups minimize fault propagation and enhance system safety.
4. Fast Response: 1 ms on/off response time ensures precise, real-time control of high-speed processes.
5. LED Status Indicators: Individual LEDs for each channel display on/off status for immediate visual diagnostics.
6. Software Configurable: I/O addresses and output behavior are set via programming software (no jumpers required).
7. Mechanical Keying: Prevents incorrect module insertion into the PLC rack, safeguarding hardware.
8. Removable Terminal Blocks: Simplifies wiring, installation, and maintenance without removing the module.
9. Industrial-Grade Reliability: Designed for harsh environments with wide temperature tolerance and high electrical noise immunity.

Applications

• Manufacturing & Assembly Lines: Control of conveyor motors, pneumatic cylinders, solenoid valves, and indicator lights.
• Power & Energy Management: Switching control for auxiliary relays, circuit breakers, and monitoring indicators in power plants.
• Chemical & Petrochemical Processing: Driving valves, pumps, and alarm systems in corrosive and hazardous environments.
• Water & Wastewater Treatment: Control of dosing pumps, gate valves, and level alarms.
• Building Automation: Management of HVAC dampers, lighting circuits, and access control relays.
• Material Handling & Logistics: Controlling motor starters, brakes, and status indicators for cranes and forklifts.

Compatibility

• PLC Compatibility: Fully compatible with GE Fanuc Series 90-70 PLC systems, including all CPU models and expansion racks.
• Software Support: Configurable via Emerson’s programming software (e.g., Logic Developer) over Ethernet TCP/IP or SNP port.
• Industry Standards: Complies with VMEbus standard C.1, meeting international industrial control system requirements。
