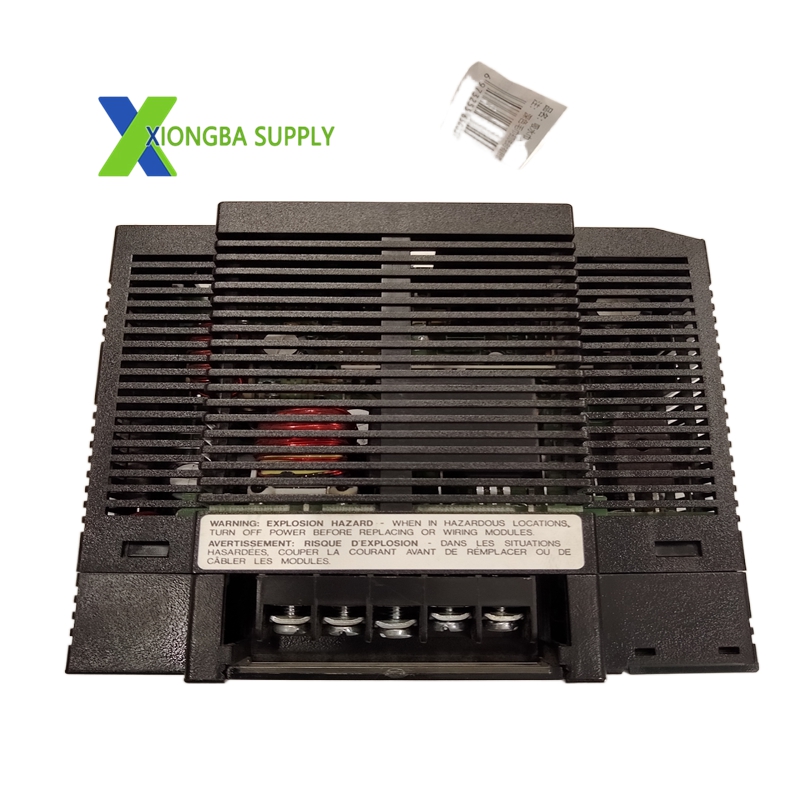

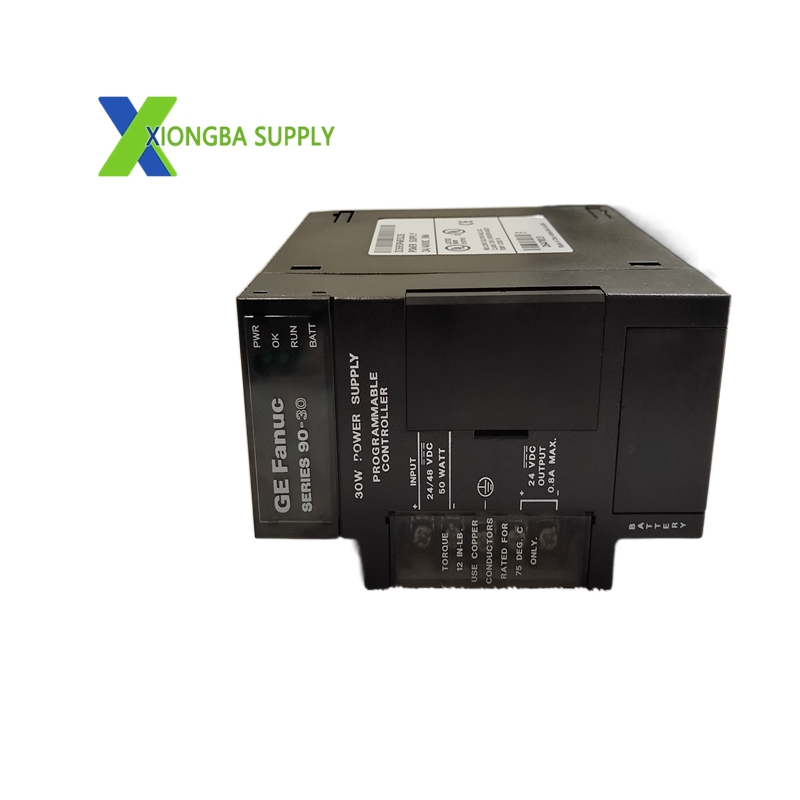

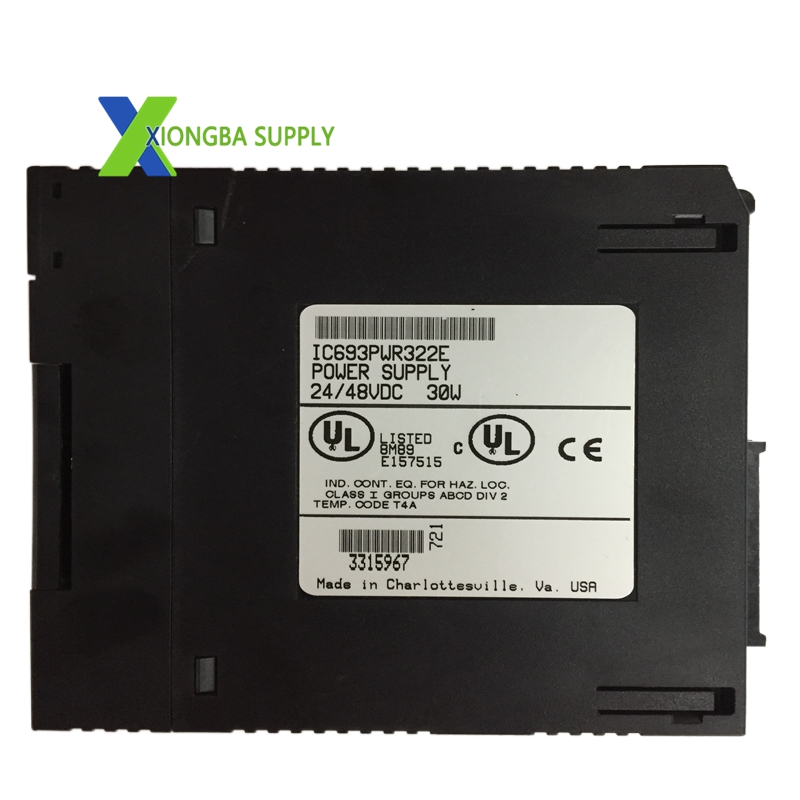

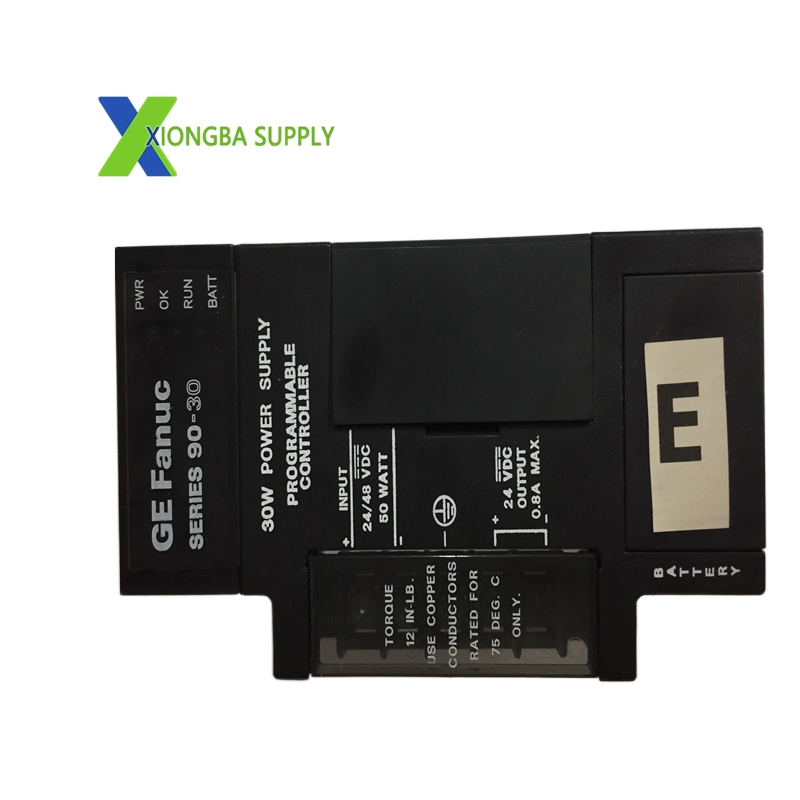

GE Fanuc IC693PWR322 Standard Power Supply Module

Technical Specifications

• Manufacturer: GE Fanuc (Emerson)
• Series: Series 90-30 PLC
• Part Number: IC693PWR322
• Input Voltage:
  • Nominal: 24 VDC / 48 VDC
  • Operating Range: 18–56 VDC
• Input Power: 50 W (max at full load)
• Inrush Current: 4 A peak, ≤100 ms
• Outputs (Total 30 W Max):
  • 5 VDC: 5.0–5.2 VDC (nominal 5.1 VDC), 15 W (3 A) (backplane/logic power)
  • 24 VDC Isolated: 21.5–28 VDC, 20 W (0.83 A) (digital input modules)
  • 24 VDC Relay: 24–28 VDC, 15 W (0.625 A) (relay output modules)
• Holdup Time: ≥14 ms (output maintains during input dropouts)
• Isolation Voltage: 1500 VAC (input-output, output-output)
• Operating Temperature: -10°C to +60°C
• Humidity: 5%–95% RH (non-condensing)
• Dimensions: 140 × 63 × 127 mm (5.5 × 2.5 × 5.0 in)
• Weight: 0.57 kg (1.25 lbs)

Key Features

1. Wide Input Voltage Range: Accepts 18–56 VDC, compatible with 24 VDC and 48 VDC industrial power grids.
2. Triple Regulated Outputs: Provides isolated 24 VDC, non-isolated 24 VDC, and 5 VDC to power diverse PLC system components.
3. High Efficiency: Optimized circuit design minimizes energy loss and heat generation.
4. Comprehensive Protection:
   • Overvoltage Protection: Shuts down outputs if voltages exceed safe limits (e.g., 6.4–7 V for 5 VDC).
   • Overcurrent & Short-Circuit Protection: Prevents damage from overloads or short circuits.
   • OverTemperature Protection: Safeguards the module in high-temperature environments.
5. High Noise Immunity: 1500 VAC isolation between inputs and outputs blocks electromagnetic interference (EMI).
6. Compact & Rugged Design:
   • Metal Housing: Withstands harsh industrial conditions.
   • DIN Rail & Panel Mountable: Flexible installation options.
7. LED Status Indicators: Enables quick visual diagnostics for power, fault, and alarm conditions.

Applications

• Factory Automation: Powers Series 90-30 PLCs in assembly lines, packaging machinery, and material handling systems.
• Machine Tools & CNC Systems: Provides stable power for CNC lathes, milling machines, and machining centers.
• Process Control: Used in water treatment, chemical processing, and food & beverage industries for pump, valve, and sensor control.
• OEM Equipment: Integrated into specialized machinery (e.g., textile, printing, plastics) as a standard power source.
• Building Automation: Supports HVAC, lighting control, and security systems in commercial buildings.
