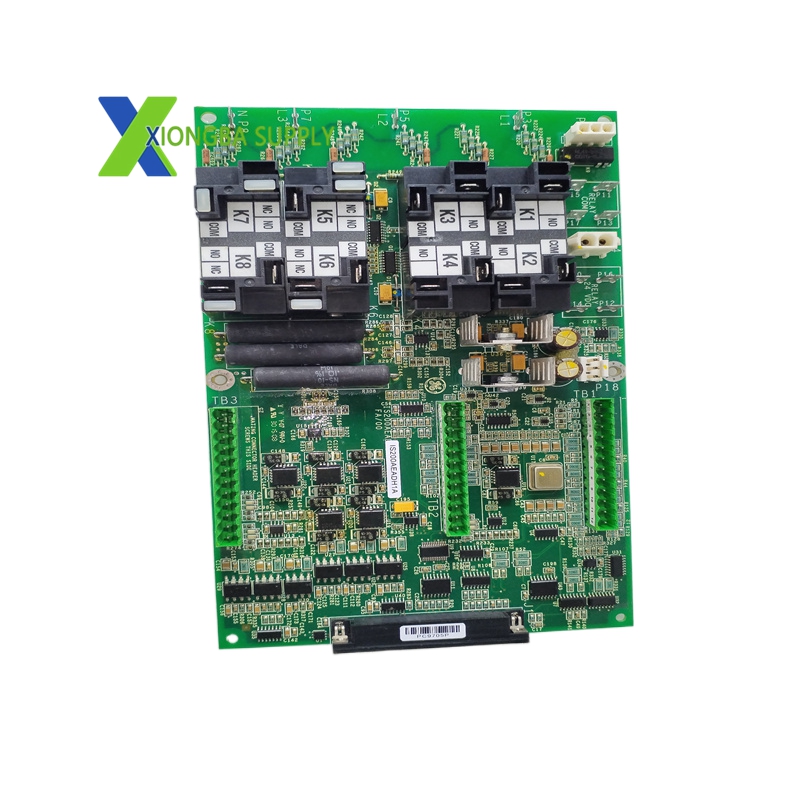

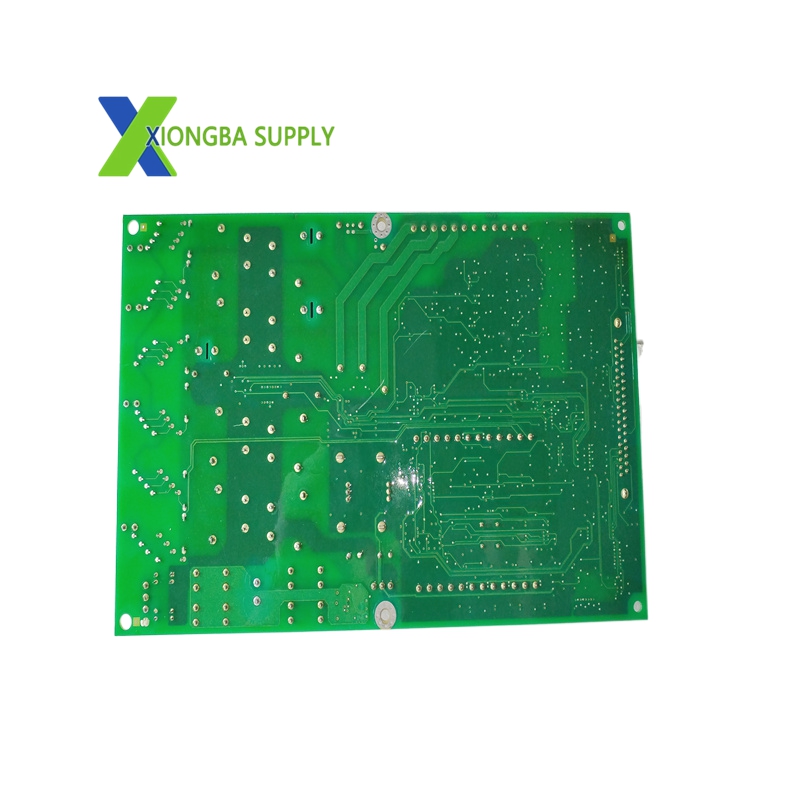

GE Fanuc IS200AEADH1A Analog Input Terminal Board

In stock

Product Overview:
The GE Fanuc IS200AEADH1A is a high-density analog input termination board designed for the Mark VIe and Mark VI Series turbine control systems. This module serves as the critical interface between field analog sensors (such as RTDs, thermocouples, and milliamp/voltage transmitters) and the Mark VI controller’s internal processing units. It provides signal conditioning, isolation, and analog-to-digital conversion for up to 16 channels of analog input data, making it essential for monitoring critical process variables like temperature, pressure, flow, and vibration in power generation and industrial applications.

Technical Specifications:
Series: GE Mark VI / Mark VIe Control System
Channel Count: 16 Single-Ended or 8 Differential Analog Input Channels
Input Types: RTD (Pt100, Pt1000), Thermocouple (J, K, T, E, N, R, S, B), 4-20mA, 0-20mA, 0-10V DC
Resolution: 16-Bit A/D Converter
Sampling Rate: Up to 10 kHz aggregate across all channels
Isolation: Channel-to-Channel and Channel-to-Ground > 1500V DC
Common Mode Rejection Ratio (CMRR): > 120 dB at 50/60 Hz
Accuracy: ±0.1% of Full Scale (Typical)
Backplane Bus: VMEbus (Mark VI) / GEnet (Mark VIe)
Operating Temperature: 0°C to +60°C
Power Consumption: < 5 Watts

Functional Features:
Multi-Sensor Support: Accepts RTDs, thermocouples, current loops, and voltage signals on the same board with auto-detection
High Channel Density: 16 single-ended channels in a single slot, reducing rack space requirements
Channel Isolation: Each input channel is galvanically isolated from all others and from the system ground, eliminating ground loop errors
Cold Junction Compensation: Built-in automatic cold junction compensation for thermocouple inputs
Burnout Detection: Detects open sensor wires (burnout) on current loop inputs and flags fault status
Self-Diagnostics: Continuous on-board monitoring of A/D converter health, reference voltages, and communication status

Performance Parameters:
Input Impedance (Voltage): > 10 MΩ
Input Impedance (Current): 250 Ω (typical for 4-20mA)
Noise Rejection: > 60 dB at 50/60 Hz (Normal Mode)
Settling Time: < 10 μs (to 0.01% of final value)
MTBF: > 200,000 Hours

Material Composition:
PCB: 6-Layer FR-4 High-Tg Epoxy Glass with impedance-controlled traces
Isolation Barriers: Opto-isolators and isolation amplifiers (Analog Devices AD202/AD210)
Connectors: 3M High-Density D-Sub Connectors with gold-plated contacts
Enclosure: Aluminum Alloy with Zinc-Nickel Plating for EMI shielding
