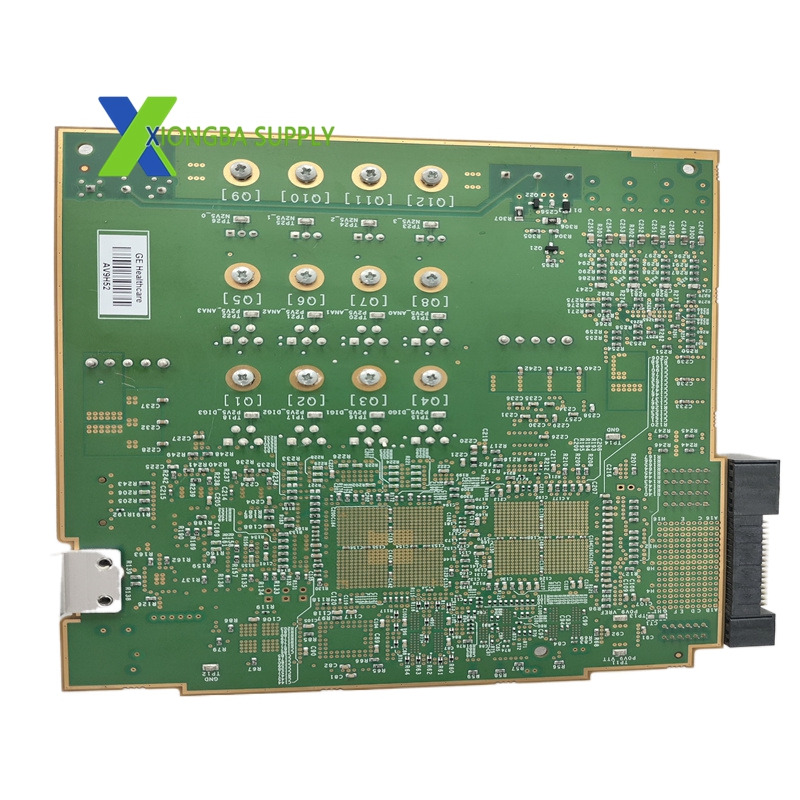

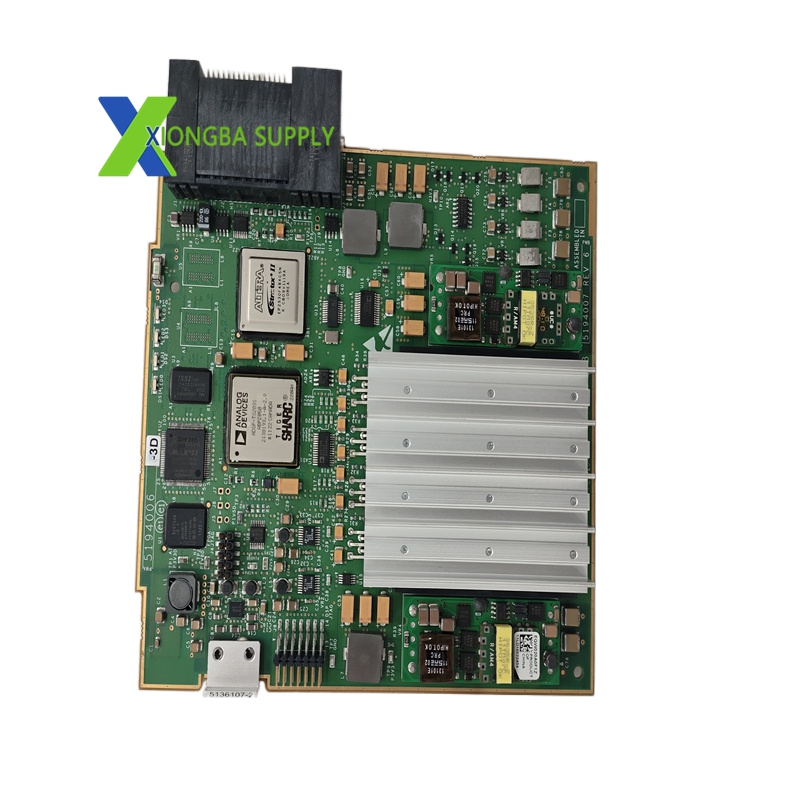

GE HD DIFB 5194006-3 Digital Input Feedback Board

In stock

Product Introduction

The HD DIFB 5194006-3 is a high-reliability digital input feedback board for GE industrial control systems. It acquires and processes digital status signals from field devices, ensuring accurate data feedback for system control and interlock protection.

Technical Specifications

Manufacturer: General Electric (GE)
Model: HD DIFB 5194006-3
Input Channels: 16 isolated digital inputs
Input Voltage: 24 VDC (±10%)
Isolation Voltage: 1500 VAC (channel-to-system)
Response Time: <1 ms
Operating Temperature: -20°C to +70°C
Protection Rating: IP20
Dimensions: 120 mm × 80 mm × 25 mm
Weight: 0.3 kg

Key Features

High-Density Isolation: 16 channels with 1500 VAC isolation for noise immunity in harsh environments.
Fast Signal Processing: <1 ms response for real-time status monitoring.
Fault Tolerance: Surge protection and open-circuit detection for enhanced reliability.
Compact Form Factor: Standard industrial board size for easy cabinet integration.
Wide Environmental Range: Operates reliably across -20°C to +70°C.

Application Scenarios

Power Generation: Turbine control systems, interlock status monitoring.
Process Industries: Oil/gas, chemical plant digital signal acquisition.
Industrial Automation: Factory floor equipment status feedback and safety interlocks.
