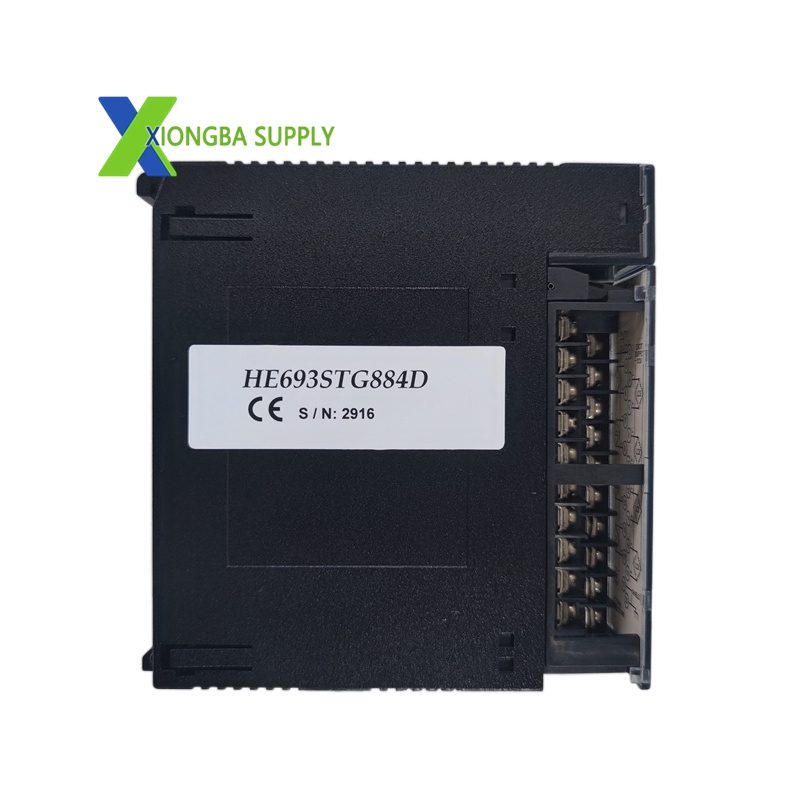

GE HE693STG884D High-Speed Counter/Stepper Module

In stock

Product Introduction

The HE693STG884D is a multifunction high-speed counter and stepper control module for GE Series 90-30 PLCs. It integrates precise pulse counting and stepper motor control for motion control applications.

Technical Specifications

Manufacturer: General Electric (GE)
Model: HE693STG884D
Series: Series 90-30 PLC
Counter Channels: 4 high-speed counters (up to 100 kHz)
Stepper Outputs: 2 pulse/direction outputs (up to 50 kHz)
Counter Modes: Up/down, quadrature, pulse/direction
Output Voltage: 5–24 VDC (open-collector)
Power Supply: 24 VDC (external) + 5 VDC (backplane)
Operating Temperature: -20°C to +70°C
Dimensions: 85 mm × 75 mm × 25 mm
Weight: 0.3 kg

Key Features

4-Channel High-Speed Counting: 100 kHz max frequency for precise position/speed monitoring.
2-Axis Stepper Control: 50 kHz pulse outputs for accurate motor positioning.
Multi-Mode Operation: Supports up/down, quadrature, and pulse/direction counting modes.
Open-Collector Outputs: 5–24 VDC compatibility for diverse stepper drivers.
Dual Power Input: Combines external 24 VDC and backplane 5 VDC for stable operation.

Application Scenarios

Motion Control: Conveyor positioning, CNC machines, and robotic arm control.
Packaging Machinery: High-speed counting for product labeling and sorting.
Material Handling: Automated warehouse carton positioning and tracking.
