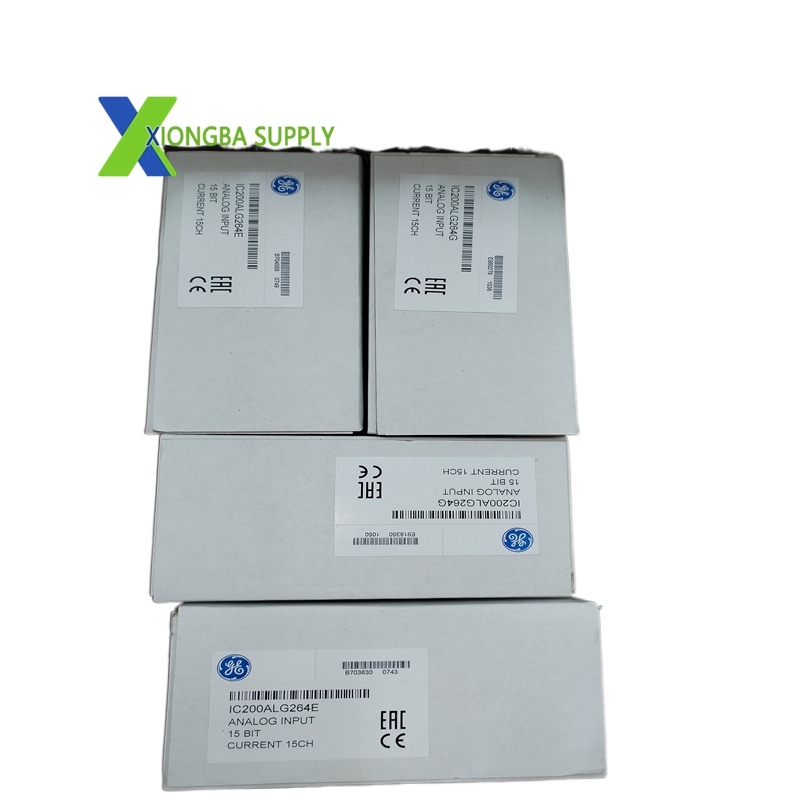

GE IC200ALG264C – VersaMax 15‑Bit Current Analog Input Module (15 Channels)

In stock

Product Introduction

The IC200ALG264C, manufactured by General Electric (GE), is a high‑density, high‑precision analog input module in the VersaMax PLC series. It is designed to acquire 15 channels of industrial current signals (4–20 mA or 0–20 mA) and convert them into 15‑bit digital data for the PLC. With high accuracy, strong noise immunity, and a compact design, it is suitable for large‑scale, high‑reliability current signal monitoring in harsh industrial environments.

Technical Specifications

Manufacturer: General Electric (GE)
Model: IC200ALG264C
Series: VersaMax PLC System
Channels: 15 single‑ended current input channels
Resolution: 15‑bit
Input Ranges: 4–20 mA (default, no jumper); 0–20 mA (with jumper)
Resolution Details: 4–20 mA: 0.5 μA = 1 count; 0–20 mA: 0.625 μA = 1 count
Accuracy (25°C): ±0.3% typical, ±0.5% maximum of full scale
Accuracy (0–60°C): ±1% maximum of full scale
Input Impedance: 100 Ω (current mode)
Update Rate: 7.5 ms per module
Isolation: 250 VAC continuous (input‑to‑logic); 1500 VAC (1 minute) channel‑to‑channel
Power Consumption: 100 mA maximum from 5V backplane
Dimensions (L×W×H): 109.22 mm × 49.70 mm × 66.86 mm
Weight: Approximately 0.28 kg
Operating Temperature: 0°C to +60°C
Storage Temperature: -40°C to +85°C
Certifications: CE, UL, CSA (industrial safety and EMC compliance)

Key Features
High‑Density 15‑Channel Design: Maximizes I/O capacity in a compact form factor, reducing cabinet space and wiring complexity.
15‑Bit High Precision: Delivers fine resolution for accurate measurement of low‑level current signals, ensuring reliable data for critical control loops.
Dual Current Range Support: Jumper‑selectable 4–20 mA or 0–20 mA input ranges, compatible with standard industrial current sensors (e.g., pressure, flow, level).
Strong Isolation & Noise Immunity: High isolation voltage protects the PLC from electrical noise, voltage spikes, and ground loops in harsh industrial environments.
Open‑Wire Detection: Identifies broken wires or sensor faults in 4–20 mA mode, enabling timely maintenance and preventing system downtime.
Diagnostic LED Indicator: Equipped with an OK LED for real‑time status monitoring (power, communication, fault conditions).
Hot‑Swappable: Allows for module replacement without shutting down the entire system, minimizing maintenance downtime.
Robust Industrial Construction: Ruggedized components and wide temperature range ensure reliable operation in extreme industrial conditions.
