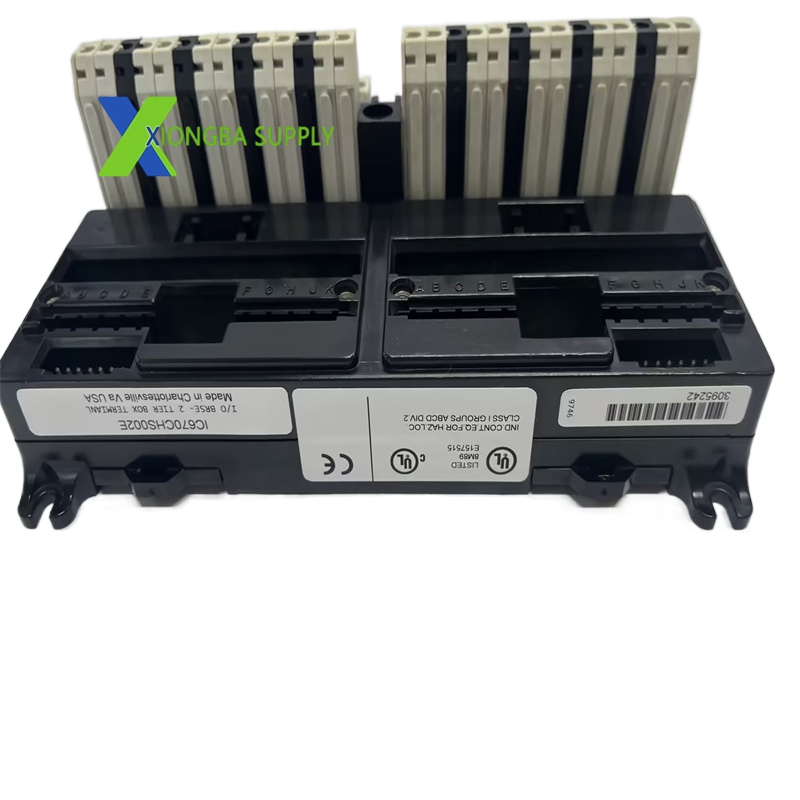

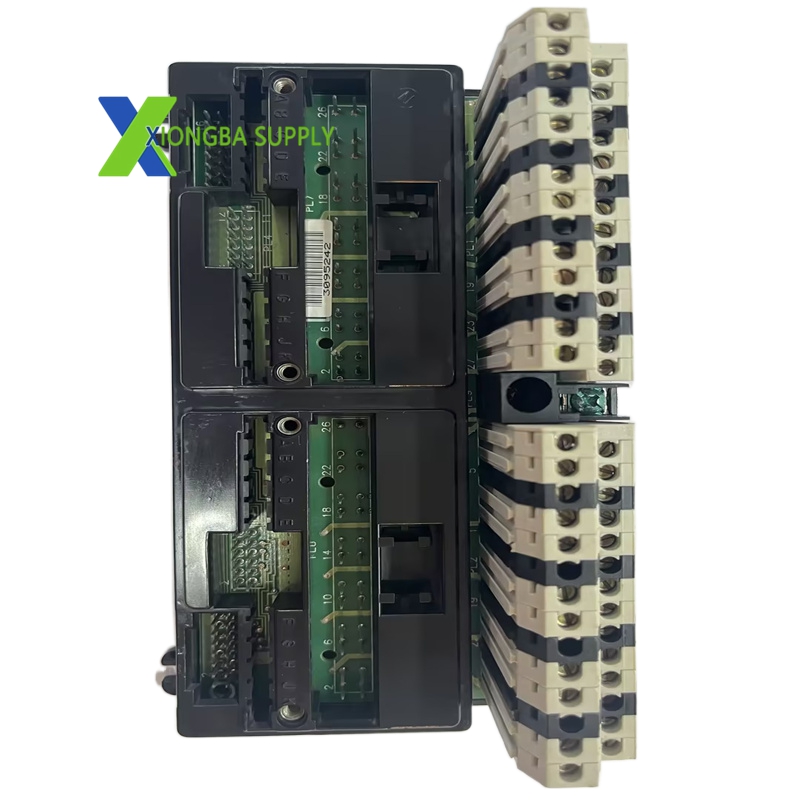

GE IC670CHS002 – GE Field Control 2-Module Box-Style I/O Terminal Block

In stock

Product Introduction:

The IC670CHS002, manufactured by General Electric (GE Fanuc / Emerson Automation), is a heavy‑duty, box‑style I/O terminal block from the GE Field Control product family. It serves as a mounting and interconnection base for up to 2 GE Field Control I/O modules (digital/analog, input/output), providing backplane communication, field wiring terminals, and mechanical mounting in one compact unit. It enables reliable, vibration‑resistant connections and supports hot‑swapping of modules without disturbing field wiring, making it a critical component for modular industrial I/O systems.

Technical Specifications

Manufacturer: General Electric (GE Fanuc / Emerson Automation)
Model: IC670CHS002
Series: GE Field Control, VersaMax Compatibility
Type: Box‑style I/O terminal block / base unit
Module Capacity: 2 I/O modules (screw‑mounted)
Terminal Count: 37 terminals (including common/power/isolated groups)
Terminal Type: Screw terminals, top‑entry, box‑style
Wire Size: 28–24 AWG (0.08–0.5 mm²)
Rated Voltage: 24VDC ±10% (field power)
Backplane Interface: GE Field Control proprietary backplane
Isolation: 250VAC continuous (field‑to‑logic)
Operating Temperature: -20°C to +60°C (-4°F to 140°F)
Storage Temperature: -40°C to +85°C (-40°F to 185°F)
Relative Humidity: 5%–95% (non‑condensing)
Material: Flame‑retardant plastic (UL 94 V‑0), corrosion‑resistant components
Dimensions (W×H×D): 102 mm × 76 mm × 102 mm (4.0 in × 3.0 in × 4.0 in)
Weight: 0.20 kg (0.44 lbs)
Mounting: DIN rail or panel‑mountable
Certifications: CE, UL Listed, CSA
Protection Class: IP20 (finger‑safe)

Key Features

Dual‑Module Support: Accommodates 2 GE Field Control I/O modules for flexible system expansion.
Vibration‑Resistant Design: Modules screw securely to the base; integrated locking lever prevents accidental disconnection.
Hot‑Swap Capability: Modules can be removed/replaced without disconnecting field wiring, reducing downtime.
Organized Terminal Groups:
- Group A: Internally connected common terminals.
- Group B: Internally connected, usable for power distribution.
- Group E: 5 isolated common terminals (separated from power and signal).
Top‑Entry Wiring: Easy access to terminals in crowded control cabinets.
Robust Environmental Ratings: Operates reliably in wide temperature and humidity ranges.
Tool‑Free Installation: Snaps onto DIN rail; modules attach with screws.
