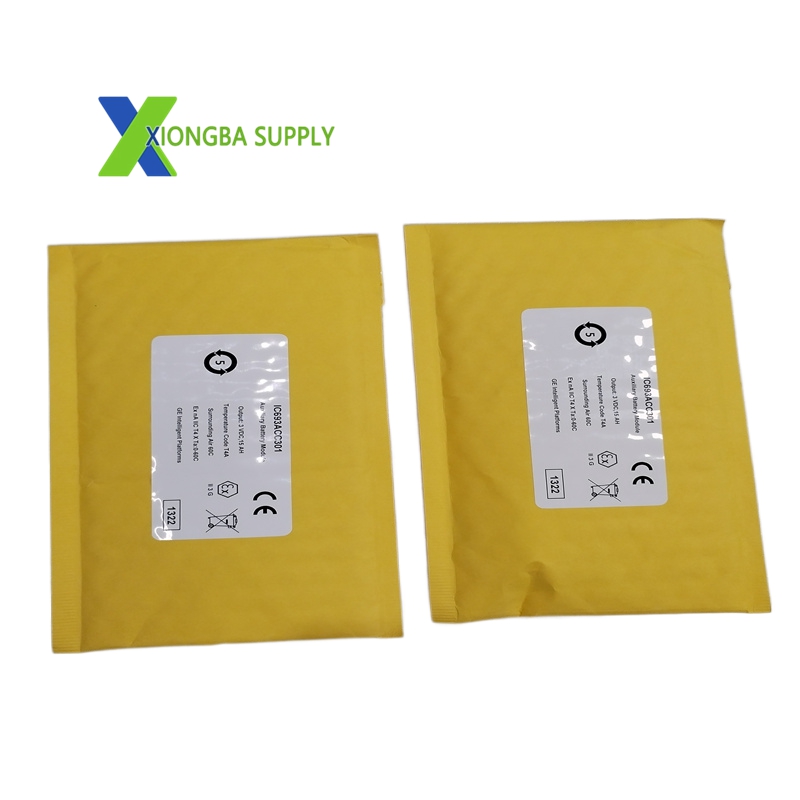

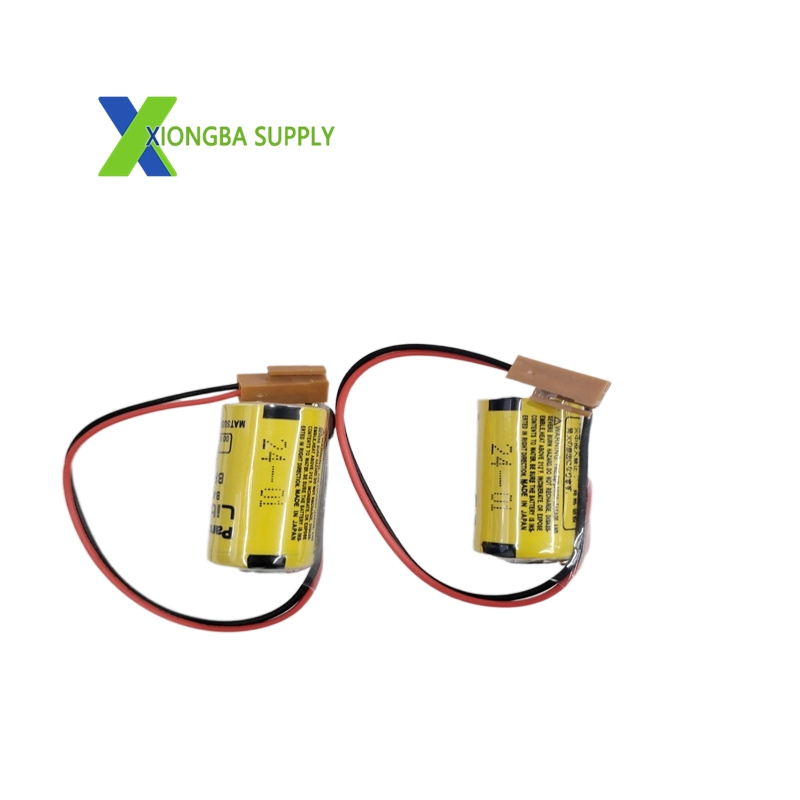

GE IC693ACC301 – Series 90-30 PLC 3V Lithium RAM Backup Battery Module

In stock

Product Introduction:

The IC693ACC301 is a compact, high-reliability lithium battery module manufactured by GE (now Emerson Automation) for the GE Series 90-30 PLC system. Its core purpose is to preserve volatile CMOS RAM data, user programs, configuration logic, and real-time clock (RTC) settings during main power outages, shutdowns, or maintenance events. Without this battery, all unsaved runtime data and program logic would be permanently lost, leading to system downtime, production halts, and costly reprogramming. Designed as a direct OEM replacement, it integrates seamlessly with Series 90-30 CPUs and power supplies, ensuring long-term data integrity in industrial automation environments.

Technical Specifications

Manufacturer: General Electric (GE Fanuc / Emerson Automation)
Model: IC693ACC301
Module Type: PLC RAM & RTC Backup Battery
Battery Chemistry: Lithium (primary, non-rechargeable)
Nominal Voltage: 3VDC
Rated Capacity: 1.2Ah (1200mAh)
Compatibility: GE Series 90-30 CPU modules (IC693CPU311/313/323/331/340/350/360/362/374, etc.)
Connection Interface: 2-wire cable with Berg female connector (mates with PLC power supply PCB)
Mounting: Plastic clip (attaches to inner cover plate of PLC power supply)
Operating Temperature: 0°C to +60°C (32°F to 140°F)
Storage Temperature: -40°C to +85°C (-40°F to 185°F)
Shelf Life: Up to 10 years (under optimal storage conditions: 0°C–25°C, low humidity)
Service Life (In-Use):
- 2 years for CPU311/313/323 (at 25°C)
- 1 year for CPU331–362 (at 25°C)
- 14 months for CPU374 (at 25°C)
Dimensions (L×W×H): 40mm × 16mm × 16mm (1.57in × 0.63in × 0.63in)
Weight: Approximately 30g (0.07lbs)
Certifications: UL, CE, RoHS (industrial safety and environmental compliance)

Key Features

Guaranteed Data Integrity: Maintains RAM data, user programs, and RTC settings indefinitely during power loss, eliminating reprogramming needs.
Long-Life Lithium Chemistry: Primary lithium cell delivers stable 3VDC output with minimal self-discharge, ensuring multi-year reliability.
Hot-Swappable Replacement: Can be replaced while the PLC is powered on (by qualified personnel), avoiding system shutdowns.
Tool-Free Installation: Simple clip-on mounting and plug-and-play connector enable quick, hassle-free replacement.
Battery Low Detection: Works with Series 90-30 CPU diagnostics to trigger low-battery alarms (via HMI or programming software) for proactive replacement.
Compact & Space-Saving: Miniature form factor fits entirely within the PLC power supply enclosure, no external wiring required.
Harsh Environment Resilience: Operates reliably across wide temperature ranges and withstands industrial vibration and humidity.
