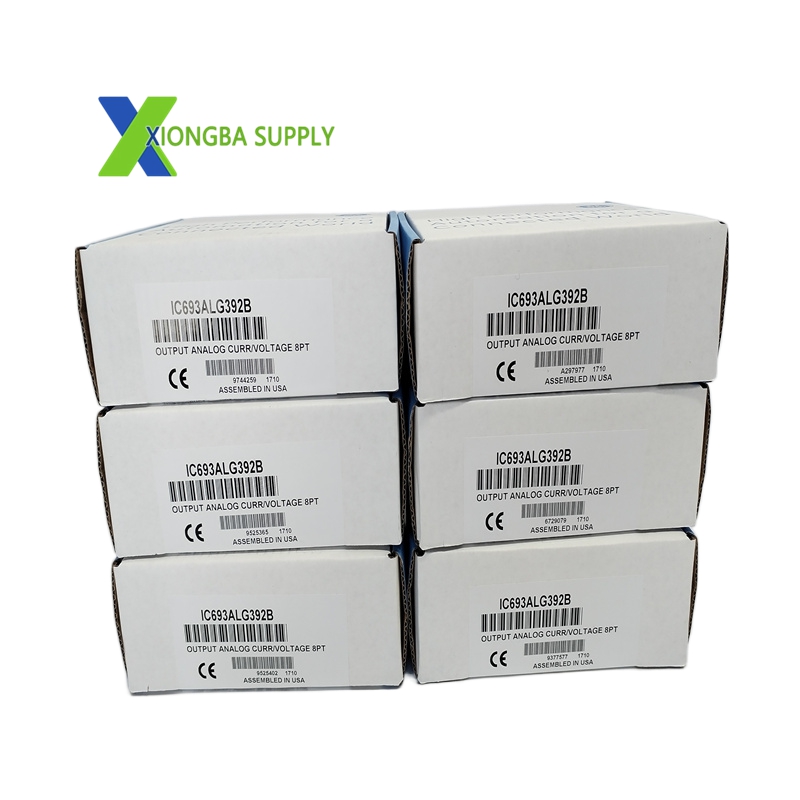

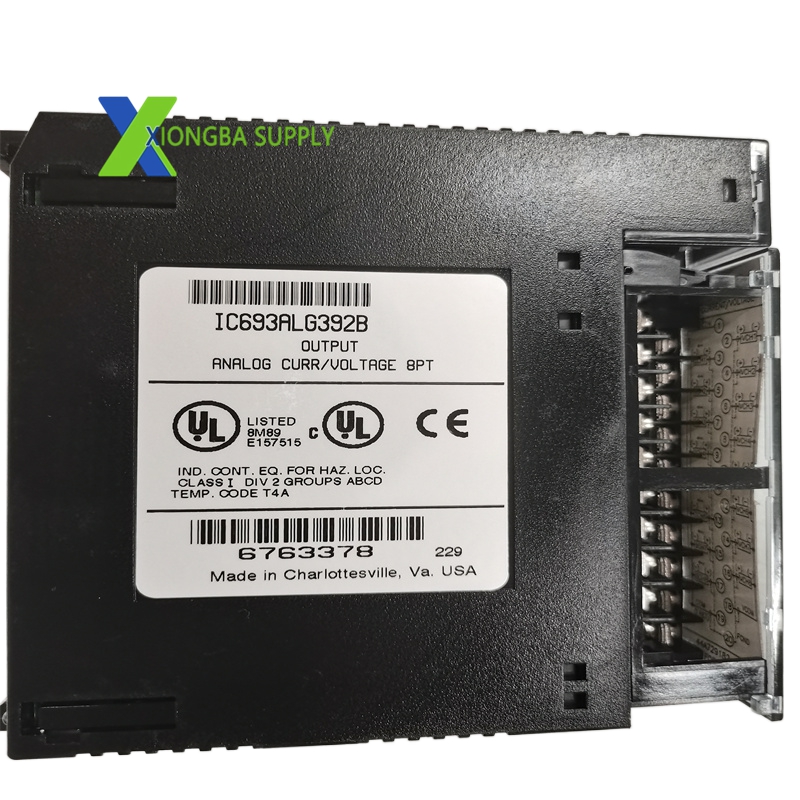

GE IC693ALG392 – Series 90-30 8-Channel High-Density Analog Current/Voltage Output Module

In stock

Product Introduction:

The IC693ALG392, manufactured by GE Fanuc (Emerson Automation), is a high-density analog output module designed for the GE Series 90-30 PLC system and PACSystems RX3i. It converts digital control signals from the PLC into standard analog voltage or current signals to drive field devices like control valves, actuators, variable frequency drives (VFDs), and transmitters. With 8 configurable channels, high resolution, and fast update rates, it delivers reliable, precise process control for diverse industrial automation applications.

Technical Specifications

Manufacturer: GE Fanuc (Emerson Automation)
Model: IC693ALG392
Series: Series 90-30 PLC System, PACSystems RX3i
Module Type: High-Density Analog Current/Voltage Output Module
Output Channels: 8 single-ended channels (independently configurable)
Output Ranges (Software-Configurable):
- Voltage: 0–+10VDC (unipolar), –10–+10VDC (bipolar)
- Current: 0–20mA, 4–20mA (standard industrial)
Resolution: 15-bit or 16-bit (range-dependent)
- 0–20mA: 0.625µA per step (16-bit)
- 0–10VDC: 0.312mV per step (16-bit)
- ±10VDC: 0.625mV per step (15-bit)
Update Rate: 8ms per module (all 8 channels updated simultaneously)
Accuracy: ±0.15% of full scale (typical at 25°C); ±0.3% maximum of full scale
External Power Supply: 24VDC (±10%), 315mA maximum (user-supplied)
Backplane Power: 5VDC at 110mA maximum
Isolation: 250VAC continuous; 1500VAC for 1 minute (channel-to-logic)
Dimensions (L×W×H): 130mm × 35mm × 140mm
Weight: 0.37kg (0.81lbs)
Operating Temperature: 0°C to +60°C (32°F to 140°F)
Storage Temperature: -40°C to +70°C (-40°F to 158°F)
Relative Humidity: 5%–95% (non-condensing)
Certifications: CE, UL, CSA (industrial safety and EMC compliance)
Protection Class: IP20
Mounting: DIN rail or Series 90-30/RX3i I/O carrier

Key Features

8-Channel High-Density Output: Reduces cabinet space and wiring complexity with 8 independently configurable channels.
Dual Voltage/Current Support: Each channel software-selectable for voltage (0–10V/±10V) or current (0–20mA/4–20mA) outputs, eliminating need for extra signal converters.
High Precision Resolution: 15–16-bit resolution ensures accurate, fine-tuned control for critical processes.
Fast 8ms Update Rate: Enables real-time control of dynamic processes with rapid response requirements.
Open-Wire Detection (Current Modes): Monitors for broken wires in 0–20mA/4–20mA loops and alerts the CPU to faults.
Fail-Safe Operation: Configurable to hold last output state or reset to zero on power loss/communication failure, safeguarding processes.
Software Configuration: No jumpers/switches; configure ranges via Logicmaster 90-30/20/Micro or CIMPLICITY Control software.
