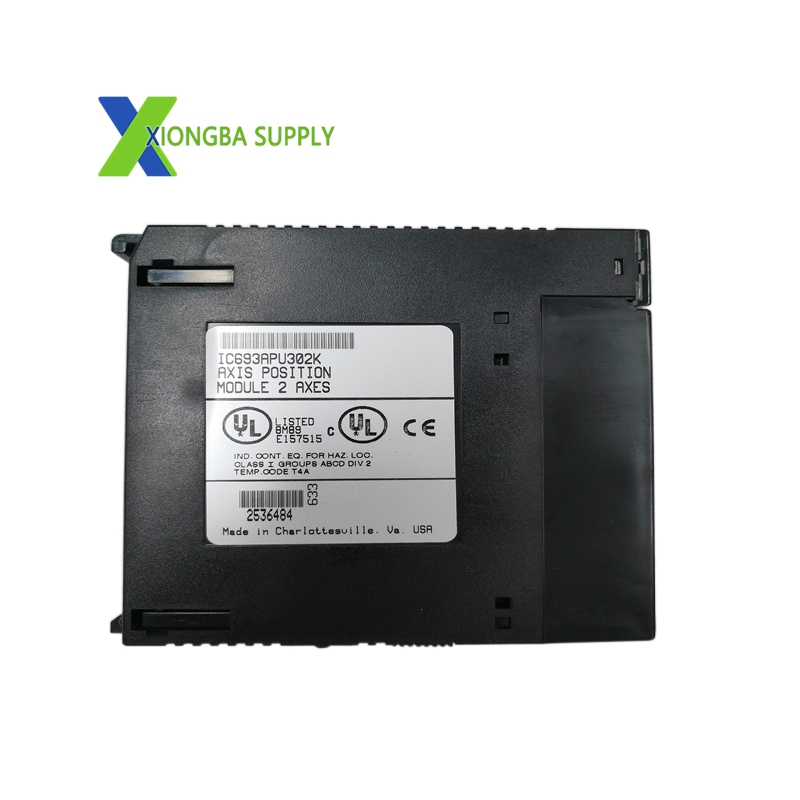

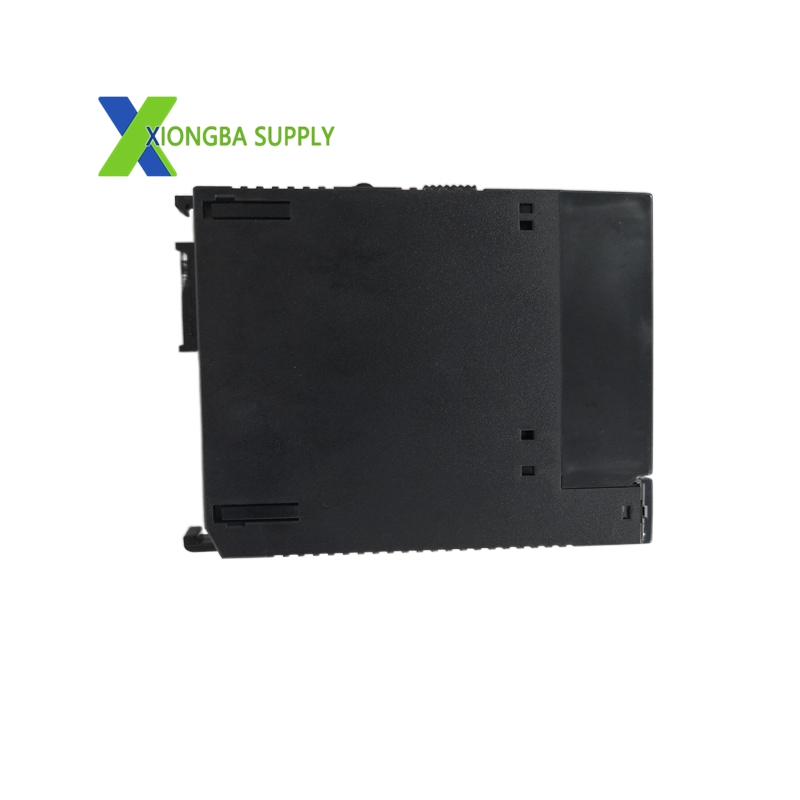

GE IC693APU302 – Series 90-30 Power Mate 2-Axis Positioning Module (APM)

In stock

Product Introduction:

The IC693APU302, originally developed by GE Fanuc and now under Emerson Automation, is an intelligent microprocessor-based motion control module for the GE Series 90-30 PLC platform. It delivers high-precision servo control for two independent axes, integrating seamlessly with PLC logic to handle complex motion tasks. It supports both standard positioning and follower (electronic gearing) modes, making it ideal for synchronized multi-axis applications.

Technical Specifications

Manufacturer: GE Fanuc / Emerson Automation
Model: IC693APU302
Series: Series 90-30 PLC System
Module Type: 2-Axis Motion Positioning Module (APM)
Controllable Axes: 2 independent servo axes (Axis A, Axis B)
Operating Modes: Standard Mode, Follower Mode (Electronic Gearing)
Servo Loop Update Rate: 2 milliseconds
Program Storage: Flash memory for 10 motion programs and 40 subroutines
Connectors:
- 2 × 24-pin high-density I/O ports (front panel)
- 1 × 25-pin D-type servo communication port
Power Consumption: 800mA @ 5VDC (backplane)
LED Indicators: EN1, EN2, STAT, OK, CFG
Compatibility: Works with Series 90-30 CPUs (311, 313, 323, 331 and higher)
Max System Quantity: 8 modules (3 per baseplate)
Dimensions (W×H×D): 110mm × 130mm × 40mm
Weight: 0.28kg (0.63lbs)
Operating Temperature: 0°C to +60°C
Programming Software: VersaPro v1.1+ or Logic Developer-PLC
Certifications: CE, UL, CSA

Key Features

Dual-Axis Precision Control: Controls two servo axes simultaneously with 2ms update for accurate positioning.
Dual Operating Modes:
- Standard Mode: Executes independent point-to-point, jog, and home sequences.
- Follower Mode: Implements high-speed electronic gearing for master-slave synchronization.
Onboard Program Storage: Stores 10 motion programs and 40 subroutines independently of the PLC CPU.
Comprehensive I/O Interface: Two 24-pin connectors provide limit switches, home inputs, and drive enable signals.
Real-Time Diagnostics: Five LEDs display axis enable, status, configuration, and module health.
High Integration: Combines motion control and PLC logic to reduce system complexity and cost.
Predefined Motion Commands: Supports home, move, jog, and stop functions for fast programming.
