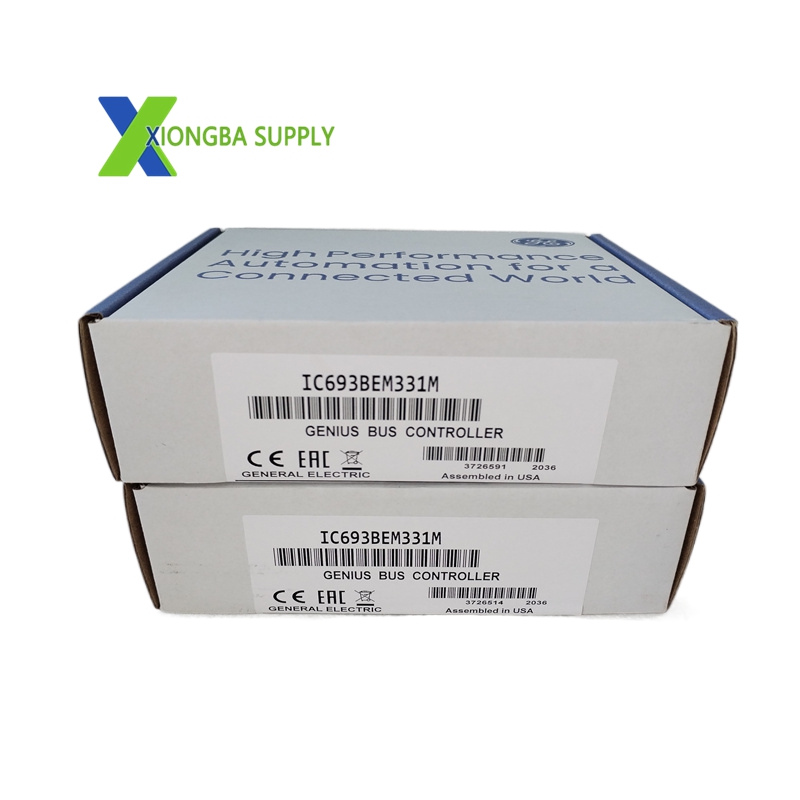

GE IC693BEM331M – Series 90-30 Genius Bus Interface Module (Enhanced Version)

In stock

Product Introduction:

The IC693BEM331M, manufactured by GE Fanuc (Emerson Automation), is an enhanced high-performance communication module in the GE Series 90-30 PLC family. It acts as a dedicated Genius Bus controller, serving as the critical interface between a Series 90-30 PLC and the proprietary Genius I/O serial bus. It enables high-speed, reliable data exchange between the PLC CPU and a network of distributed Genius I/O devices, including discrete, analog, and specialty field modules. The “M” suffix denotes a upgraded revision with enhanced firmware, improved noise immunity, and extended environmental tolerance for demanding industrial environments.

Technical Specifications

Manufacturer: GE Fanuc (Emerson Automation)
Model: IC693BEM331M
Series: GE Series 90-30 PLC System
Module Type: Genius Bus Interface / Controller Module
Bus Compatibility: Proprietary GE Genius I/O Serial Bus
Network Capacity: Supports up to 31 Genius bus devices per module
Data Exchange Size: Up to 128 bytes of input/output data per transaction
Communication Ports: 2 isolated ports (A & B) for redundant bus topologies
Power Supply: 5VDC (≤300mA) from PLC backplane; 24VDC external (optional for bus termination)
Backplane Compatibility: Fits Series 90-30 racks (e.g., IC693CHS397, IC693CHS391)
LED Indicators: 2 front-panel LEDs (OK, COMM OK)
Isolation: 250VAC continuous (channel-to-logic)
Dimensions (W×H×D): 110mm × 80mm × 40mm
Weight: 0.40kg (0.88lbs)
Operating Temperature: 0°C to +60°C
Storage Temperature: -40°C to +70°C
Relative Humidity: 5%–95% (non-condensing)
IP Rating: IP20
Certifications: CE, UL 508, CSA C22.2
Firmware Requirement: Series 90-30 CPU Firmware 5.0 or later

Key Features

Enhanced Genius Bus Connectivity: The “M” revision offers improved communication stability and faster data throughput for large distributed I/O networks.
Redundant Communication Ports: Dual isolated ports (A/B) support redundant bus wiring, eliminating single points of failure in critical control systems.
High Device Capacity: Manages up to 31 slave devices on the Genius bus, including remote I/O racks, analog/digital modules, and specialty controllers.
Robust Diagnostic LEDs:
- OK: Steady illumination indicates healthy module power and self-diagnostics.
- COMM OK: Steady when active communication is established; blinks during data exchange or fault conditions.
