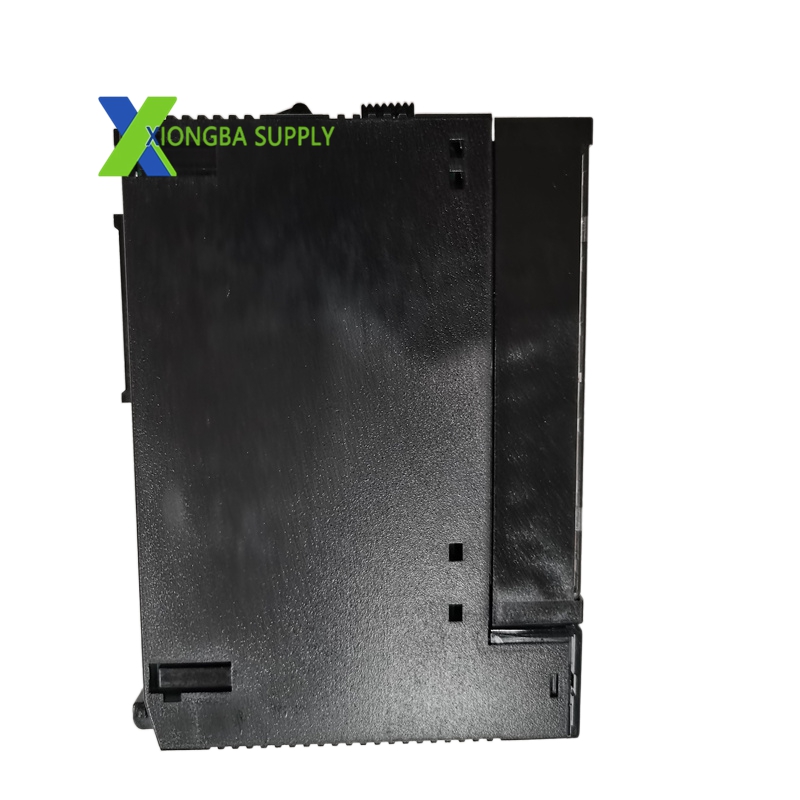

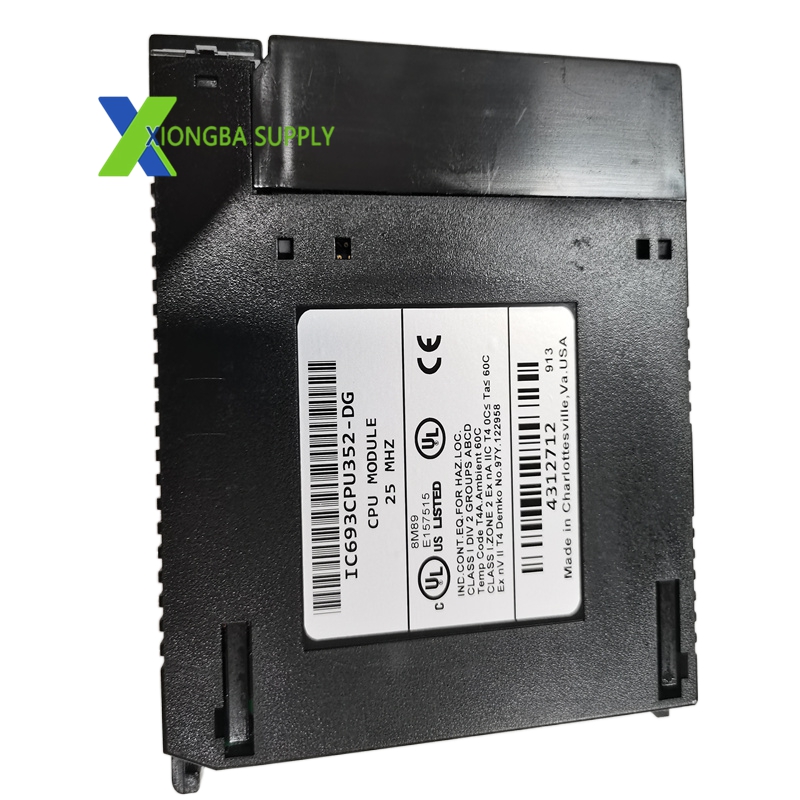

GE IC693CPU352 – Series 90-30 High-Performance Single-Slot CPU Module

In stock

Product Introduction:

The IC693CPU352, manufactured by GE Fanuc (Emerson Automation), is a high-performance CPU module in the Series 90-30 PLC family. Designed as a single-slot “Turbo CPU,” it leverages a 32-bit 80386EX processor to deliver fast logic execution, floating-point math, and extensive I/O control for medium-to-large hybrid discrete/analog automation systems. Integrated with multiple serial ports, a real-time clock, and support for advanced communication modules, it serves as the core controller for complex industrial applications requiring high reliability and processing power.

Technical Specifications

Manufacturer: GE Fanuc (Emerson Automation)
Model: IC693CPU352
Series: Series 90-30 PLC System
Processor: 32-bit 80386EX, 25 MHz
Scan Rate: 0.22 ms per 1K Boolean instructions
User Memory: 240 KB configurable (ladder diagram + shared data, firmware v9.0+)
Register Memory: 9,999 words (%R)
Discrete I/O Capacity: 4,096 DIs + 4,096 DOs (%I/%Q)
Analog I/O Capacity: 2,048 AI words (%AI) + 512 AQ words (%AQ)
Internal Bits: 4,096 %M, 256 %T, 1,280 %G, 128 %S (including %SA/%SB/%SC)
Timers/Counters: Over 2,000
Real-Time Clock: Battery-backed
Interrupts: 4 high-speed input interrupts + timer interrupts
Floating-Point Arithmetic: IEEE-754 hardware-accelerated
Communication Ports: 3 serial ports (Port 1: RJ45; Port 2: 9-pin D-sub; Port 3: power connector)
Supported Protocols: RTU slave, SNP/SNPX master/slave, serial I/O
Backplane Power: +5VDC at 890mA (typical)
Power Dissipation: 4.55W (typical)
Dimensions (W×H×D): 177.8mm × 101.6mm × 63.5mm (single slot)
Weight: 0.5kg (1.1lbs)
Operating Temperature: 0°C to +60°C (32°F to 140°F)
Storage Temperature: -40°C to +85°C (-40°F to 185°F)
Relative Humidity: 5%–95% (non-condensing)
Certifications: CE, UL, CSA

Key Features

High-Speed 32-Bit Processing: 25MHz 80386EX core delivers fast logic scanning and complex math operations.
Large User Memory: 240KB memory supports extensive ladder logic programs and data logging.
Mixed I/O Support: Controls up to 4,096 discrete points and 2,048 analog input words for hybrid systems.
Integrated Communication: Three serial ports enable direct connection to HMIs, SCADA, and serial devices.
Advanced Math: Hardware-accelerated floating-point arithmetic for precise process calculations.
Battery-Backed RTC: Maintains accurate time for event logging and scheduling.
Expandable Communication: Supports optional modules for Ethernet, Profibus, and DeviceNet connectivity.
Compact Single-Slot Design: Fits standard Series 90-30 racks, optimizing cabinet space.
Robust Industrial Reliability: Wide temperature tolerance and compliance with global safety standards.
