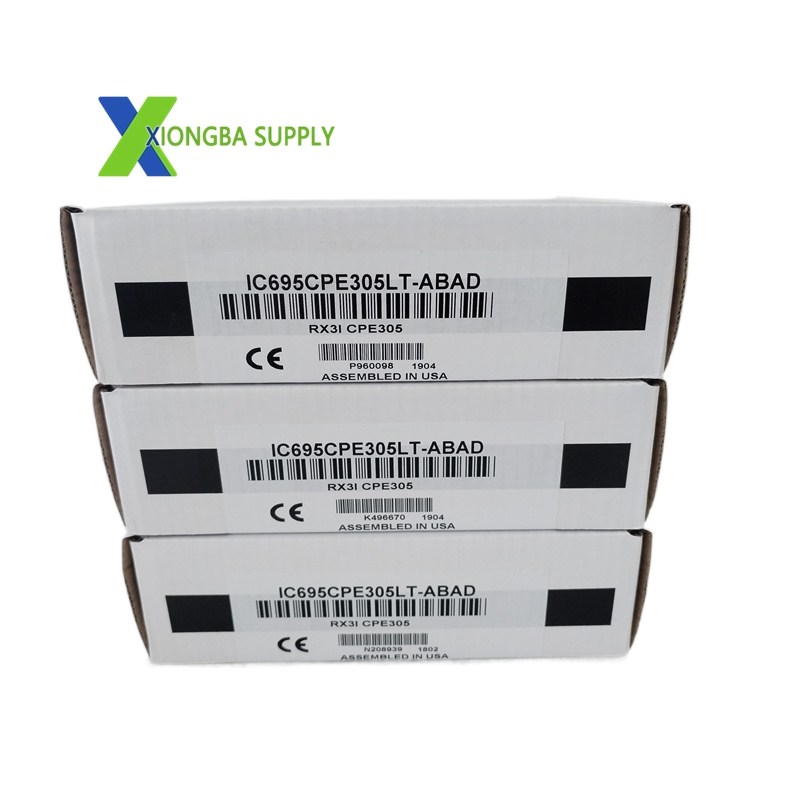

GE IC695CPE305LT-ABAD – PACSystems RX3i High‑Performance Extended Temperature CPU Module

In stock

Product Introduction:

The IC695CPE305LT-ABAD is an extended‑temperature, high‑performance CPU module for the Emerson PACSystems RX3i PLC platform, designed for complex industrial automation applications in extreme environments. It features a 1.1GHz processor, 5MB user memory, multiple high‑speed communication ports, and an extended operating temperature range (-20°C to +60°C), delivering ultra‑fast logic execution, real‑time data processing, and reliable operation in cold storage, outdoor, and harsh industrial settings. Engineered for scalability and advanced motion/process control, it supports large I/O configurations and complex algorithms, making it ideal for demanding applications in extreme environments.

Technical Specifications

Manufacturer: Emerson Automation (formerly GE Intelligent Platforms)
Model: IC695CPE305LT-ABAD
Series: PACSystems RX3i PLC System
Processor: 1.1GHz 32‑bit RISC CPU
Memory: 5MB RAM (user program/data), 5MB non‑volatile flash (program storage)
Scan Rate: 0.72ms per 1000 Boolean instructions
Communication Ports:
- 1 × 10/100Mbps Ethernet (RJ45, Modbus TCP/IP, Ethernet/IP, PROFINET)
- 2 × RS‑232/485 (serial, Modbus RTU)
- 1 × USB 2.0 (programming, data transfer)
I/O Support: Up to 1024 local I/O points; expandable to 16384 I/O points via expansion chassis
Programming Languages: Ladder Diagram (LD), Structured Text (ST), Function Block Diagram (FBD), C
Backplane Power: 1.5A @ 5VDC
Operating Temperature: -20°C to +60°C (extended range)
Storage Temperature: -40°C to +85°C
Certifications: CE, UL, CSA, RoHS, Class 1 Div 2
Dimensions: 110mm × 80mm × 40mm
Weight: 0.52kg

Key Features

Extended Temperature Range: Operates reliably from -20°C to +60°C, suitable for cold storage facilities, outdoor installations, and harsh industrial environments.
Ultra‑Fast Processor: 1.1GHz 32‑bit RISC CPU delivers industry‑leading scan speed (0.72ms/k Boolean instructions) for complex control algorithms, motion control, and real‑time applications.
Large Memory Capacity: 5MB RAM and 5MB non‑volatile flash support large user programs, extensive data logging, recipe storage, and historical trend analysis.
Advanced Connectivity: Dual serial ports (RS‑232/485), high‑speed Ethernet, and USB port enable seamless connectivity to HMIs, SCADA systems, third‑party PLCs, and field devices.
Massive I/O Scalability: Supports up to 1024 local I/O points and 16384 total I/O points via expansion chassis, scalable for large‑scale automation systems.
Multi‑Language Programming: Supports LD, ST, FBD, and C programming languages, accommodating diverse programmer preferences and complex application requirements.
Rugged Industrial Design: Withstands vibration, shock, and extreme temperatures for reliable operation in cold storage, outdoor, and harsh industrial environments.
