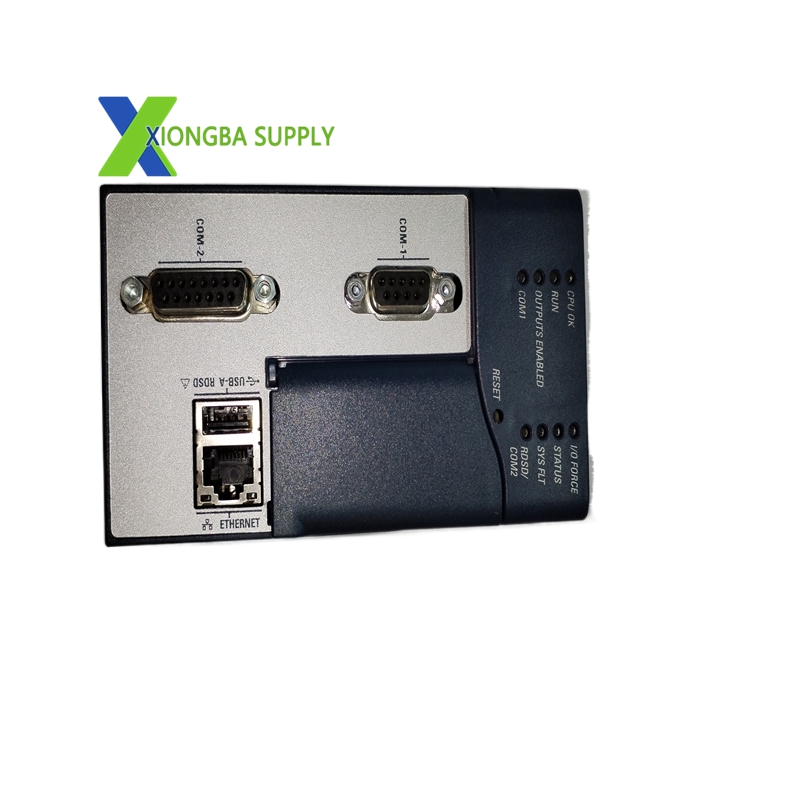

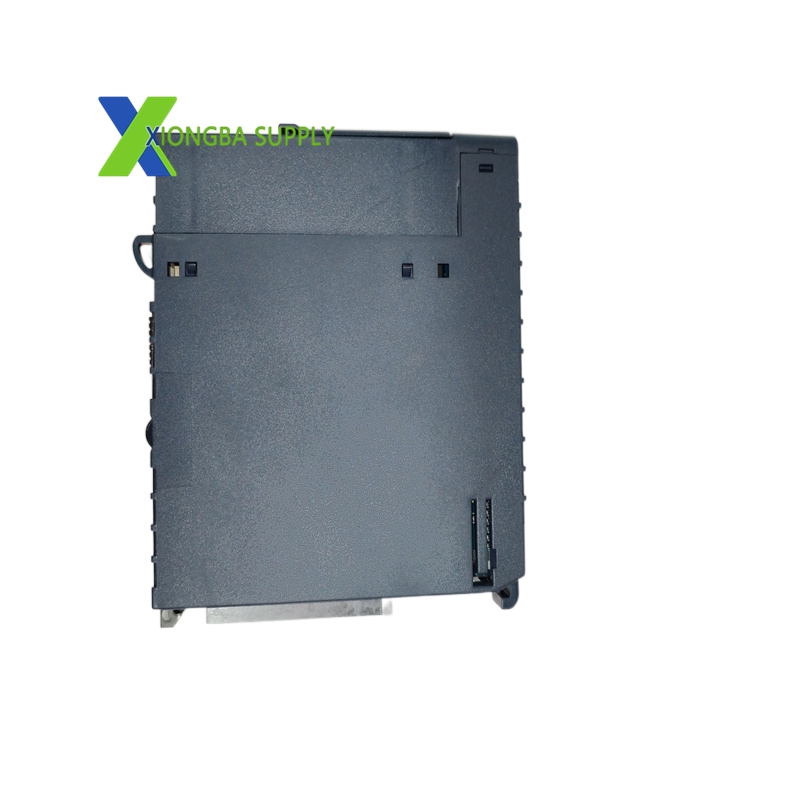

GE IC695CPU310-ACAT – PACSystems RX3i Legacy High-Performance CPU Module

In stock

Product Introduction:

The IC695CPU310-ACAT is a legacy high-performance CPU module with advanced communication capabilities for the Emerson PACSystems RX3i PLC platform, designed for complex industrial automation applications in clean, standard-temperature environments (legacy system compatibility). It features a 1.1GHz 32-bit RISC processor, 10MB user memory, and optimized communication ports supporting advanced protocols, delivering ultra-fast logic execution, real-time data processing, and seamless integration with industrial networks. It supports extensive I/O expansion, advanced motion control, and complex process control algorithms, making it ideal for legacy manufacturing, process, and infrastructure applications requiring high communication performance.

Technical Specifications

Manufacturer: Emerson Automation (formerly GE Intelligent Platforms)
Model: IC695CPU310-ACAT
Series: PACSystems RX3i PLC System (Legacy CPU Series)
Processor: 1.1GHz 32-bit RISC CPU
Memory: 10MB RAM (user program/data), 10MB non-volatile flash (program storage)
Scan Rate: 0.72ms per 1000 Boolean instructions
Communication Ports:
- 1 × 10/100Mbps Ethernet (RJ45, Modbus TCP/IP, Ethernet/IP, PROFINET, OPC UA)
- 2 × RS-232/485 (serial, Modbus RTU, enhanced baud rate support)
- 1 × USB 2.0 (programming, data transfer, high-speed firmware upgrade)
I/O Support: Up to 1024 local I/O points; expandable to 16384 I/O points via expansion chassis
Programming Languages: Ladder Diagram (LD), Structured Text (ST), Function Block Diagram (FBD), C
Backplane Power: 1.5A @ 5VDC
Operating Temperature: 0°C to +60°C (standard range)
Storage Temperature: -40°C to +85°C
Certifications: CE, UL, CSA, RoHS, Class 1 Div 2
Special Feature: Non-coated, advanced communication protocol support (legacy CPU variant)
Dimensions: 110mm × 80mm × 40mm
Weight: 0.5kg

Key Features

1.1GHz Ultra-Fast Processor: Delivers industry-leading scan speed (0.72ms/k Boolean instructions) for complex control algorithms, motion control, and real-time applications.
10MB Large Memory: Supports large user programs, extensive data logging, recipe storage, and historical trend analysis for mid-to-complex processes.
Advanced Communication Protocols: Native support for OPC UA, Ethernet/IP, PROFINET, and Modbus TCP/IP enables seamless integration with modern industrial networks and third-party devices.
High-Speed Serial Ports: Dual RS-232/485 ports support enhanced baud rates (up to 115.2kbps) for fast serial data exchange with HMIs, SCADA, and field devices.
Massive I/O Scalability: Supports up to 1024 local I/O points and 16384 total I/O points via expansion chassis, scalable for mid-to-large automation systems.
