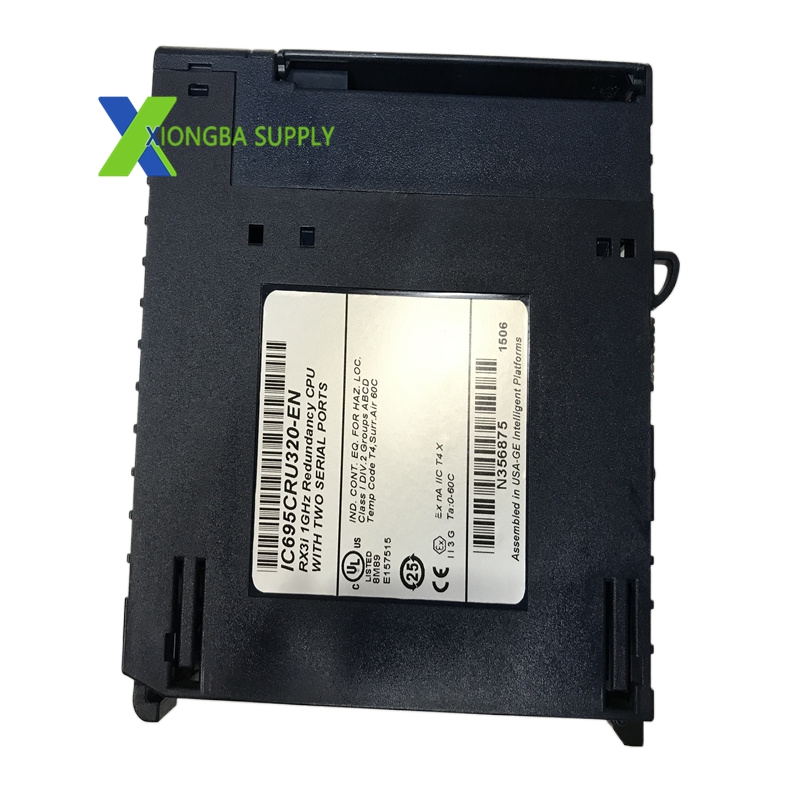

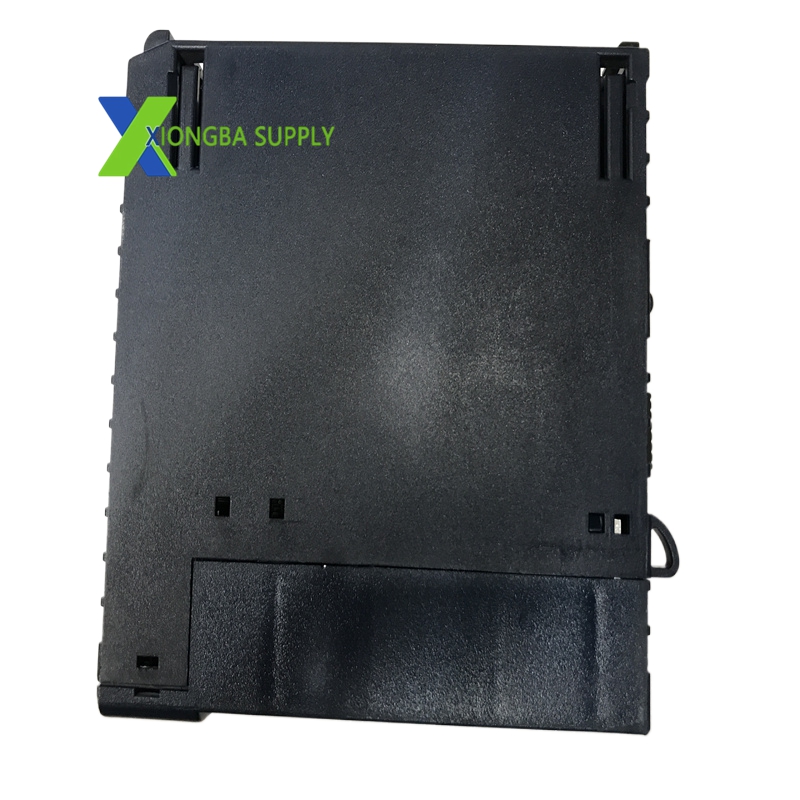

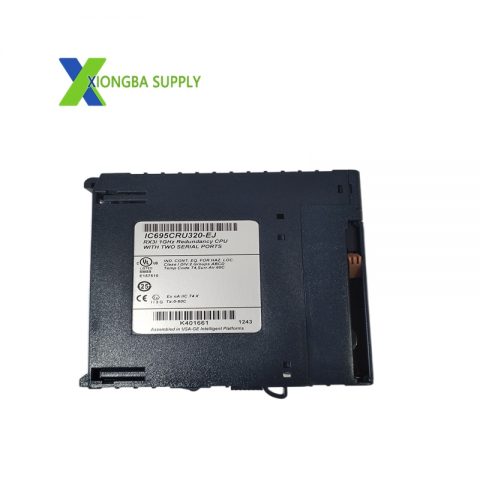

GE IC695CRU320-EN – PACSystems RX3i High-Performance Redundancy CPU Module

In stock

Product Introduction:

The IC695CRU320-EN is a high-performance redundancy central processing unit (CPU) module designed for the Emerson PACSystems RX3i PLC platform. It serves as the core control component for building high-availability control systems, enabling seamless failover through hot-standby redundancy configurations. Engineered for demanding industrial environments, it combines robust real-time processing power, extensive communication scalability, and rugged reliability, making it ideal for large-scale industrial automation systems requiring precise control and uninterrupted operation.

Technical Specifications

Manufacturer: Emerson Automation (formerly GE Intelligent Platforms)
Model: IC695CRU320-EN
Series: PACSystems RX3i PLC System
Processor: 1.0 GHz Intel Celeron-M 32-bit RISC CPU
Memory: 64 MB battery-backed RAM; 64 MB non-volatile flash memory
Scan Rate: 0.1 ms minimum control update rate; 0.72ms per 1000 Boolean instructions
I/O Capacity: Up to 131,072 discrete I/O points; Up to 16,384 analog I/O points
Communication Ports: 2 x 10/100/1000 Mbps EtherNet/IP ports; 1 x RS-232 serial port; 1 x backplane interface
Redundancy Support: Hot-standby redundancy with ≤5 ms failover time (requires IC695RCM001 redundancy module)
Backplane Power: 350mA @ 5VDC (max power consumption)
Operating Temperature: 0°C to +60°C
Storage Temperature: -40°C to +85°C
Certifications: CE, UL, CSA, Class 1 Div 2, RoHS
Dimensions: 110mm × 80mm × 40mm
Weight: 0.7kg

Key Features

High-Speed Processing: 1.0 GHz RISC processor delivers ultra-fast logic execution and control updates, supporting complex algorithms and up to 64 axes of motion control.
Massive Memory Capacity: 64 MB RAM and 64 MB flash memory accommodate large user programs, extensive data logging, recipe storage, and historical trend analysis.
Hot-Standby Redundancy: Supports real-time mirroring of program data and I/O states with a redundant CPU, ensuring zero downtime and seamless failover in critical applications.
Dual Gigabit Ethernet: Two 10/100/1000 Mbps EtherNet/IP ports enable high-speed, redundant network connectivity for real-time data exchange and integration with HMIs/SCADA.
Extensive I/O Scalability: Scales to large distributed systems with support for up to 131,072 discrete and 16,384 analog I/O points without additional CPUs.

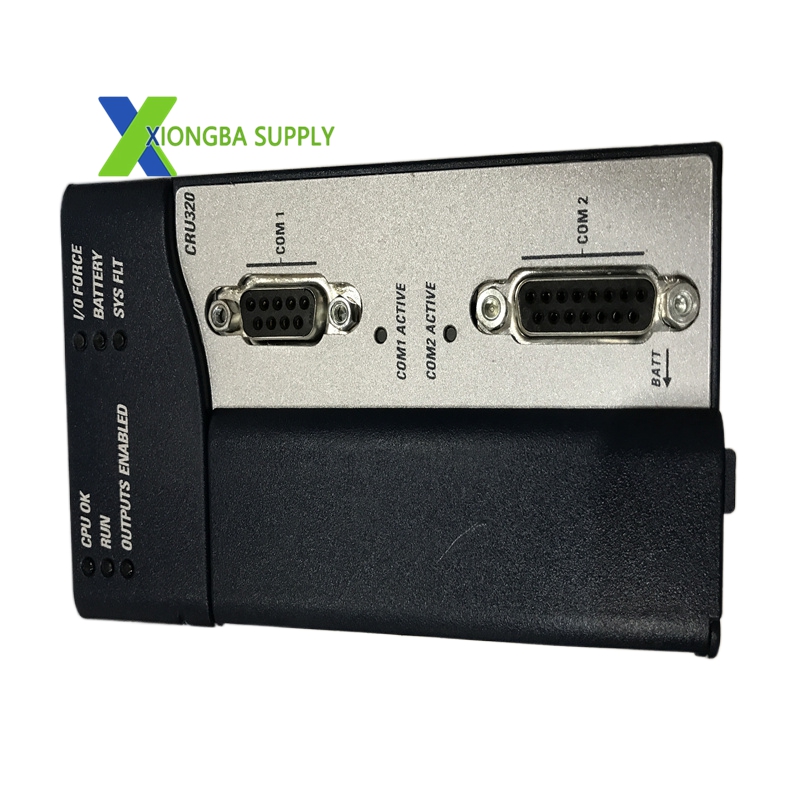

Advanced Diagnostics: Comprehensive LED indicators (CPU OK, Run, Outputs Enabled, I/O Force, Battery, Sys Flt) provide real-time status and fault visibility.
Rugged Industrial Design: Withstands vibration, shock, and wide temperature ranges for reliable operation in chemical, petrochemical, and power plants.
