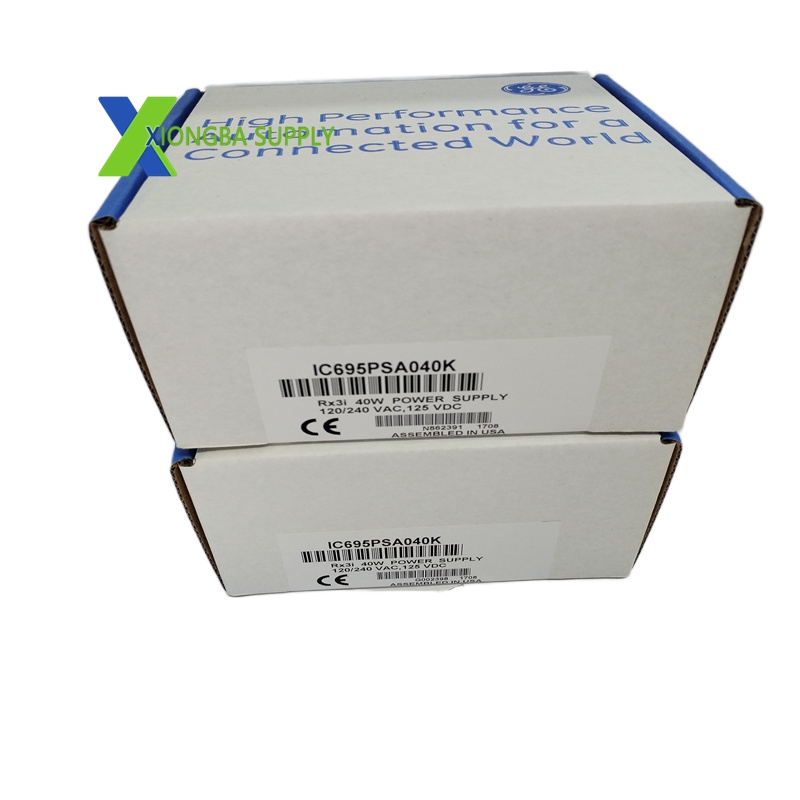

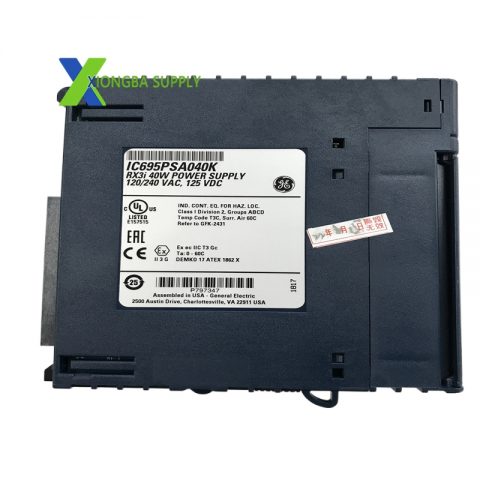

GE IC695PSA040K – PACSystems RX3i Universal AC/DC Power Supply Module (40W, Kit Version)

In stock

Product Introduction:

The IC695PSA040K is a high‑efficiency, universal input power supply kit for the Emerson PACSystems RX3i PLC platform, serving as the primary power source for RX3i racks. It converts wide‑range AC or DC input into three isolated, regulated outputs (+3.3VDC, +5.1VDC, +24VDC) to power the CPU, I/O modules, and relay circuits. The “K” suffix indicates it is supplied as a complete installation kit, including mounting hardware and documentation, for seamless deployment in industrial control panels. Engineered for global compatibility and 24/7 reliability, it supports both standard and harsh environment applications.

Technical Specifications

Manufacturer: Emerson Automation (formerly GE Intelligent Platforms)
Model: IC695PSA040K
Series: PACSystems RX3i PLC System
Module Type: Universal Backplane Power Supply (2‑slot, Kit Version)
Input Voltage: 85–264VAC (47–63Hz, universal); 100–300VDC
Outputs:
- +3.3VDC @ 1.6A (internal logic, non‑external use)
- +5.1VDC @ 6.0A (backplane/module logic)
- +24VDC @ 9.0A (relay coils, sensors)
Max Output Power: 40W
Efficiency: ≥85% at full load
Isolation: 250VAC continuous input‑to‑backplane isolation; 1500VAC for 1‑minute isolation
Inrush Current: 4A max (250ms duration)
Backplane Compatibility: RX3i Universal Backplane only
Max Per Rack: 1 power supply module
Operating Temperature: 0°C to +60°C
Storage Temperature: -40°C to +85°C
Certifications: CE, UL, CSA, RoHS, Class 1 Div 2
Dimensions: 150mm × 130mm × 50mm
Weight: 0.54kg
Kit Contents: Power supply unit, mounting brackets, screws, user manual, installation guide

Key Features

Universal AC/DC Input: Accepts 85–264VAC or 100–300VDC input for global deployment, compatible with all standard industrial power grids.
Triple Isolated Outputs: Dedicated +3.3VDC (logic), +5.1VDC (backplane), and +24VDC (relays/sensors) outputs eliminate noise from inductive loads and ground loops.
High Efficiency: ≥85% efficiency reduces energy consumption and heat generation, ideal for 24/7 operations and energy‑conscious facilities.
Enhanced Isolation: 1500VAC (1‑minute) input‑to‑backplane isolation protects against electrical noise, ground loops, and voltage spikes.
Kit Configuration: Includes all necessary mounting hardware and documentation for quick, error‑free installation in control panels.
