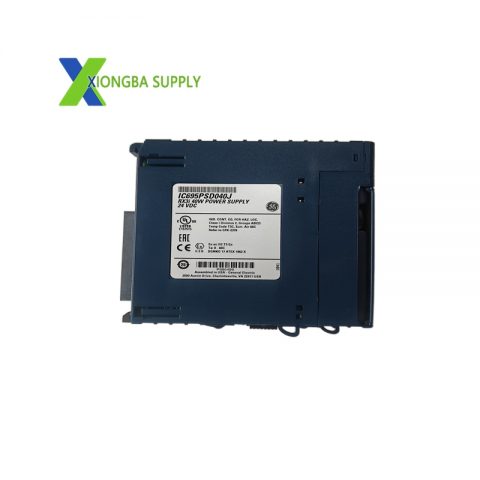

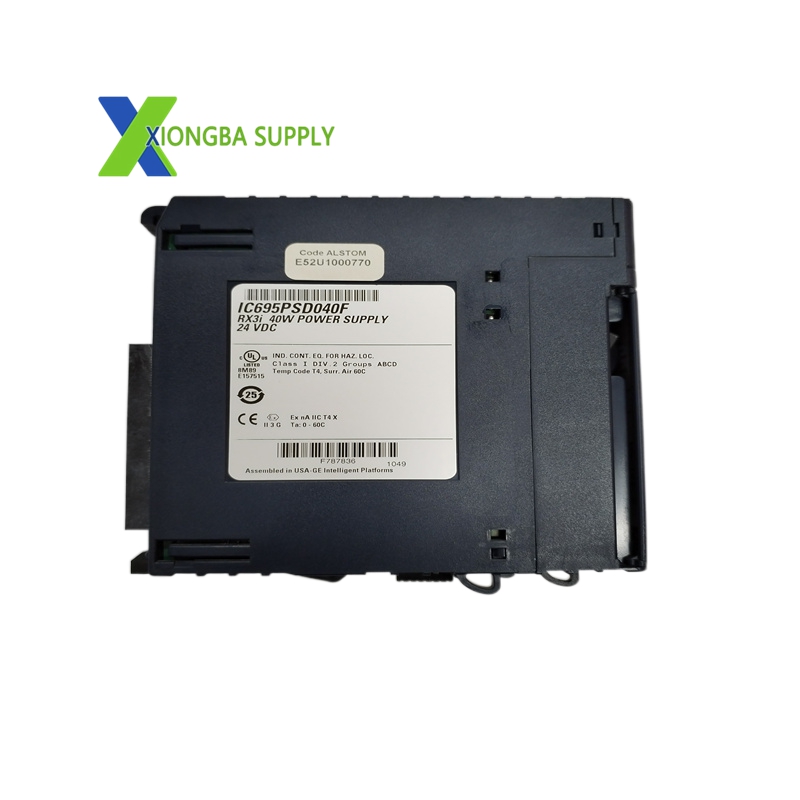

GE IC695PSD040F – PACSystems RX3i DC‑DC Power Supply Module (40W, 24VDC Input, Factory Sealed)

In stock

Product Introduction:

The IC695PSD040F is a factory‑sealed, high‑reliability DC‑DC power supply for the Emerson PACSystems RX3i PLC platform, identical to the IC695PSD040 in core functionality but with a factory‑sealed enclosure for enhanced durability and contamination resistance. It converts a wide 12–30VDC input into three regulated outputs (+3.3VDC, +5.1VDC, +24VDC) to power the RX3i backplane, CPU, and I/O modules. Engineered for harsh industrial environments with dust, moisture, or chemical exposure, the factory‑sealed design prevents ingress of contaminants, ensuring long‑term reliability in demanding applications.

Technical Specifications

Manufacturer: Emerson Automation (formerly GE Intelligent Platforms)
Model: IC695PSD040F
Series: PACSystems RX3i PLC System
Module Type: DC‑DC Backplane Power Supply (1‑slot, Factory Sealed)
Input Voltage: 12–30VDC (run mode); 18–30VDC (start mode); nominal 24VDC
Outputs:
- +3.3VDC @ 9.0A (internal logic)
- +5.1VDC @ 6.0A (backplane/module logic)
- +24VDC @ 1.6A (relay coils, sensors)
Max Output Power: 40W
Input Power: 60W maximum at full load
Efficiency: ≥85% at full load
Isolation: 1500VAC (1 minute) input‑to‑backplane isolation
Inrush Current: 4A max (100ms duration)
Ride‑Through Time: 10 milliseconds
Backplane Compatibility: RX3i Universal Backplane only
Max Per Rack: 1 power supply module
Operating Temperature: 0°C to +60°C
Storage Temperature: -40°C to +85°C
Certifications: CE, UL, CSA, RoHS, Class 1 Div 2
Dimensions: 130mm × 130mm × 40mm
Weight: 1.05kg
Enclosure: Factory‑sealed, dust/moisture‑resistant

Key Features

Factory‑Sealed Enclosure: Hermetically sealed design prevents ingress of dust, moisture, chemicals, and corrosive gases, extending service life in harsh environments.
Wide DC Input Range: Operates reliably from 12–30VDC (run mode), compatible with 24VDC plant power, battery banks, and renewable energy systems.
Triple Regulated Outputs: Dedicated outputs for logic (+3.3VDC), backplane (+5.1VDC), and relays/sensors (+24VDC) ensure stable power distribution.
High Efficiency: ≥85% efficiency minimizes energy waste and heat generation, critical for sealed or low‑ventilation control panels.
Robust Protection: Overload, overvoltage, short‑circuit, overtemperature, and reverse polarity protection safeguard the module and connected devices.

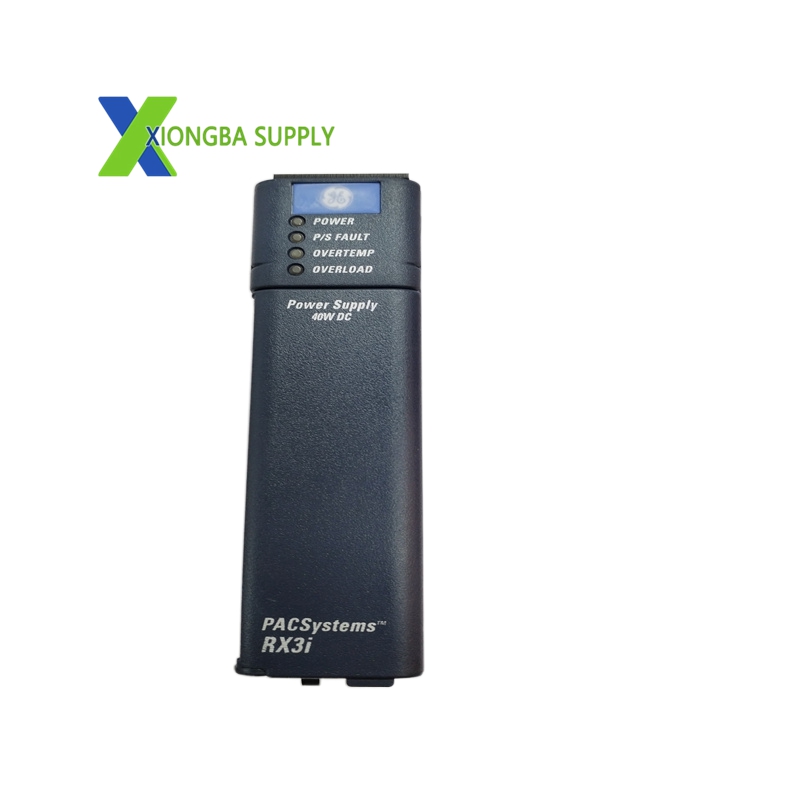

LED Status Indicators: Front‑panel LEDs for Power, P/S Fault, Overload, and Overtemperature enable real‑time diagnostics and quick troubleshooting.
Compact 1‑Slot Design: Occupies a single RX3i slot, optimizing space in control panels with limited rack real estate.
