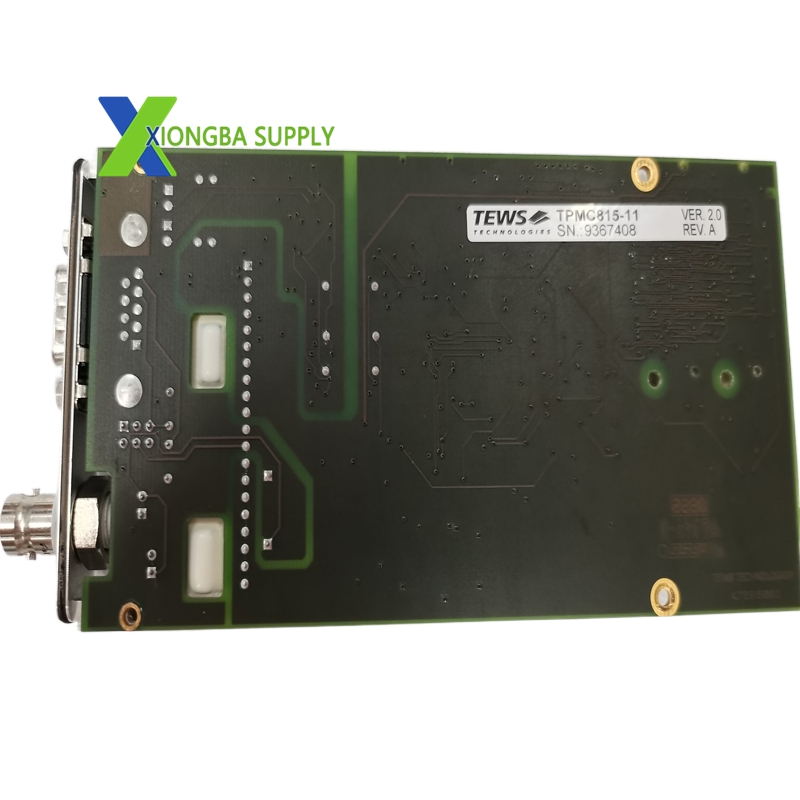

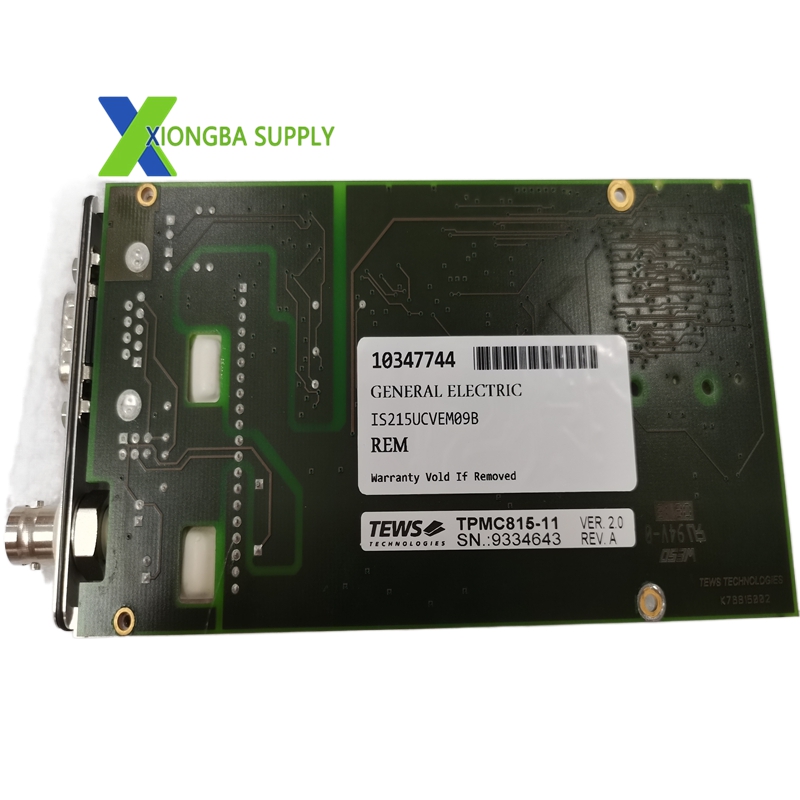

GE TPMC815-11 – ARCNET Interface PMC Module

Technical Specifications

• Manufacturer: TEWS Technologies GmbH
• Model: TPMC815-11
• Module Type: Single-width 32-bit PMC (PCI Mezzanine Card)
• Controller: COM20020 ARCNET controller
• Communication Protocol: ARCNET (2.5 Mbps data rate)
• Physical Interface: Isolated hybrid interface (TPMC815-11); isolated RS485 (TPMC815-21 variant)
• Bus Compatibility: PCI 2.1 (3.3V/5V signaling)
• Network Topologies: Star, bus, and ring
• Isolation: 250V RMS electrical isolation
• Power Supply: 5V DC from PMC bus
• Dimensions (L×W): 149 mm × 74 mm
• Weight: Approx. 90 g (0.2 lbs)
• Operating Temperature: -40°C to +85°C (-40°F to 185°F)
• Storage Temperature: -40°C to +85°C (-40°F to 185°F)
• Relative Humidity: 10%–95% (non-condensing)
• Supported OS: VxWorks, Windows XP/XPE/2000, Linux, LynxOS, Integrity, QNX

Key Features

1. Highly Reliable ARCNET Communication
   • Implements the robust ARCNET industrial protocol with a 2.5 Mbps transfer rate for deterministic, real-time data exchange.
   • Supports multiple network topologies (star, bus, ring) for flexible system design.
2. Isolated & Rugged Electrical Design
   • Provides 250V RMS electrical isolation between the host system and the ARCNET network, protecting against EMI and ground loops.
   • Industrial-grade components ensure stable operation in extreme temperatures (-40°C to +85°C) and high-vibration environments.
3. Flexible Media Interface
   • The TPMC815-11 model offers a traditional isolated hybrid interface, supporting both fiber-optic and twisted-pair cabling for maximum installation flexibility.
4. Standard PMC Form Factor
   • Compliant with the PCI 2.1 standard, enabling seamless integration into a wide range of embedded systems, PLCs, and industrial computers with PMC slots.
   • Hot-swappable capability allows for maintenance without system shutdown.
5. Broad OS Support & Diagnostics
   • Compatible with major real-time and general-purpose operating systems.
   • Features on-board LEDs for real-time status monitoring (power, link, activity) and supports remote diagnostics.

Application Scenarios

• Industrial Automation & Process Control
  • Factory Automation: Connects PLCs, I/O systems, and HMIs on the production floor for coordinated control and data acquisition.
  • Process Industries: Used in chemical, petrochemical, and power plants for monitoring and controlling temperature, pressure, and flow in distributed systems.
• Embedded Computing & Intelligent Systems
  • Transportation: Deployed in railway and automotive manufacturing for assembly line control and vehicle diagnostic systems.
  • Aerospace & Defense: Utilized in ruggedized embedded systems requiring high-reliability communication in harsh conditions.
• Building & Infrastructure Automation
  • Smart Buildings: Integrates HVAC, lighting, and security systems on a unified network for efficient facility management.
  • Remote Monitoring: Enables data collection and control for geographically dispersed assets, such as pipelines and renewable energy installations.
