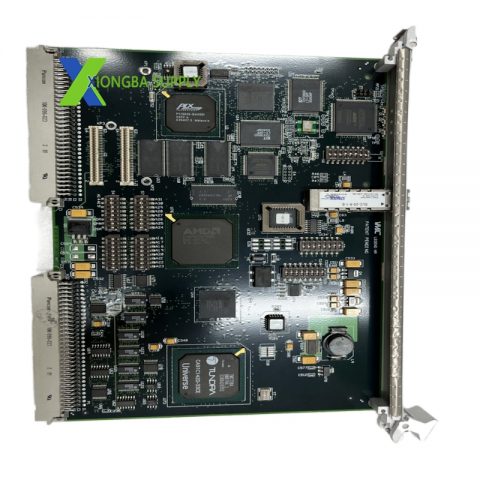

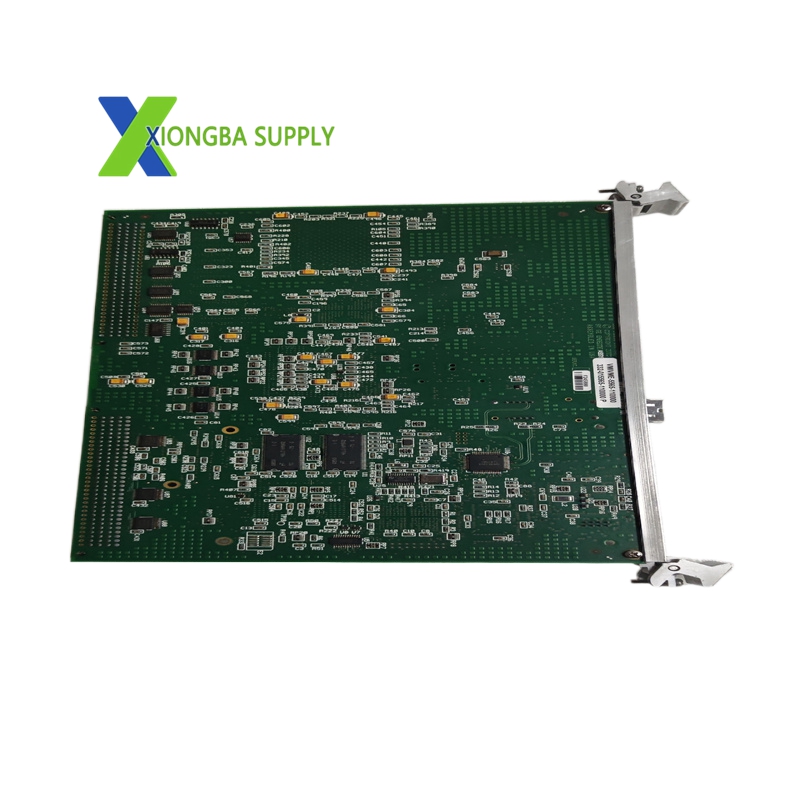

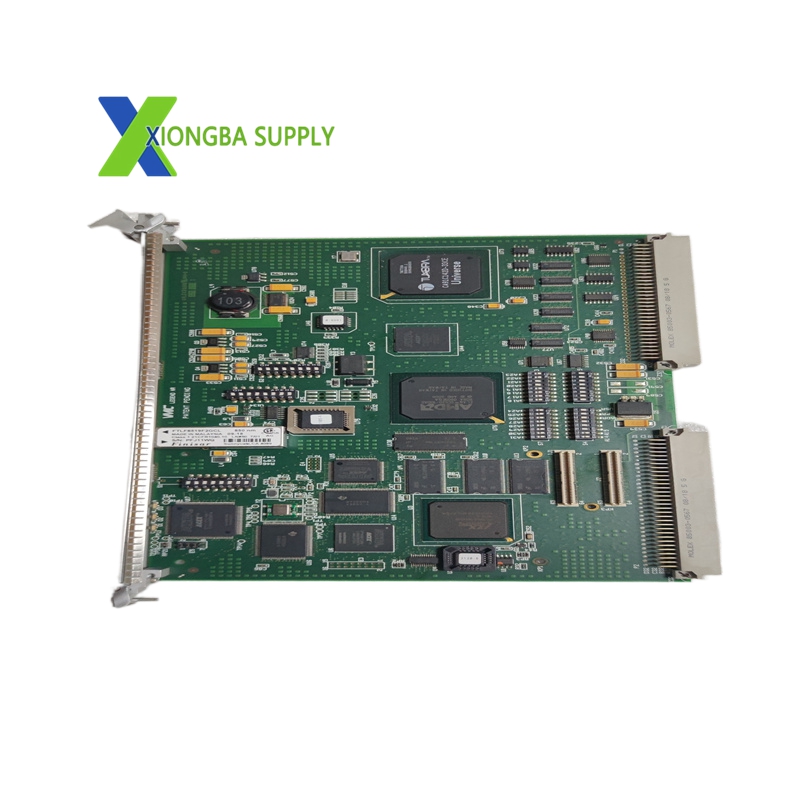

GE VMIVME-5565-110000 - VMEbus 32-Channel Analog Input Module

GE VMIVME-5565-110000 – VMEbus 32-Channel Analog Input Module

In stock

Product Introduction:
The GE VMIVME-5565-110000 is a specific configuration variant of the VMIVME-5565 analog input module. The “110000” suffix denotes a particular factory configuration that customizes the board for a specific application or customer requirement. This configuration typically specifies a fixed input type (e.g., all 4-20mA inputs), a specific voltage range, a custom calibration, or a particular firmware version. The 110000 configuration is often used by system integrators who require a pre-configured board that matches their exact process requirements, eliminating the need for on-site configuration and reducing commissioning time.

Technical Specifications:
Board Type: VMEbus 32-Channel Analog Input Module
Base Model: VMIVME-5565
Configuration Code: 110000 (Factory Pre-Configured)
Channels: 32 channels (typically all configured as 4-20mA inputs in the 110000 variant)
Resolution: 16-bit A/D
Sampling Rate: 100 kSPS per channel
Input Type: 4-20mA (fixed by configuration 110000)
Range: 0-24mA (with 4mA zero offset)
Accuracy: +/- 0.05% of full scale
Isolation: 1000V RMS channel-to-channel
VMEbus: D32/A32 with DMA
Calibration: Factory calibrated with certificate of calibration included
Form Factor: 6U VMEbus Eurocard

Functional Features:
Factory Pre-Calibrated: Arrives calibrated to the specific range defined by configuration 110000, reducing on-site setup time.
Uniform Input Type: All 32 channels are the same input type, simplifying wiring and configuration.
Certificate of Calibration: Includes a traceable calibration certificate for quality assurance and regulatory compliance.
Drop-In Compatibility: Pin-compatible with all other 5565 configurations; swappable in the field.
Reduced Commissioning Time: Eliminates the need for channel-by-channel configuration during system startup.

Application Scenarios:
Pre-Configured Skid Systems: Used in pre-wired and pre-configured process skids shipped to remote locations.
Regulated Industries: Provides the documented calibration required for pharmaceutical, food, and beverage applications.
Large-Scale Deployments: Deployed in hundreds of identical I/O racks where uniform configuration reduces error.
OEM Equipment: Shipped as part of OEM control systems with all I/O pre-configured for the specific process.
