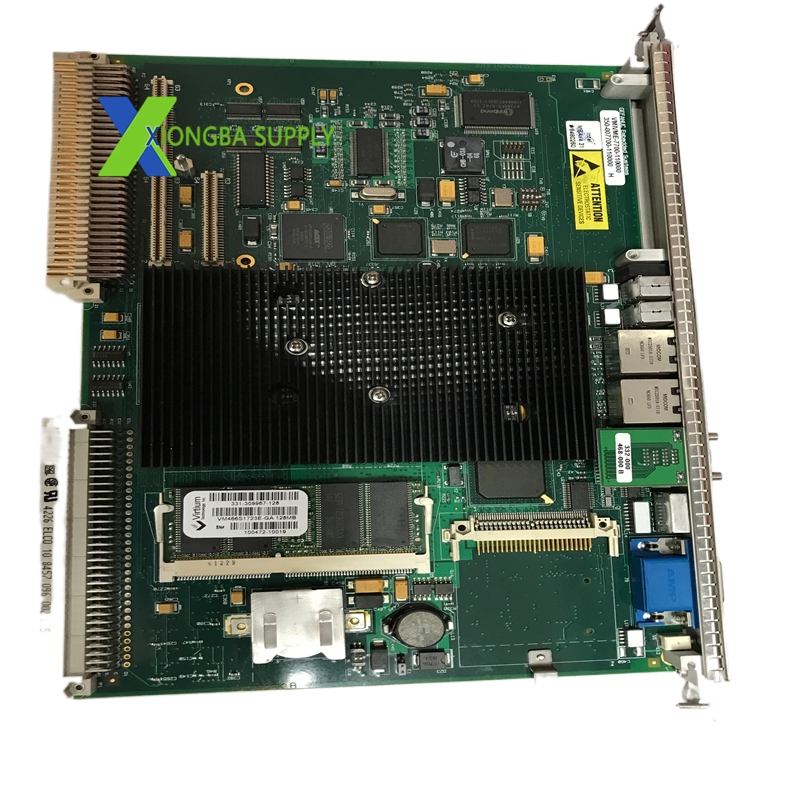

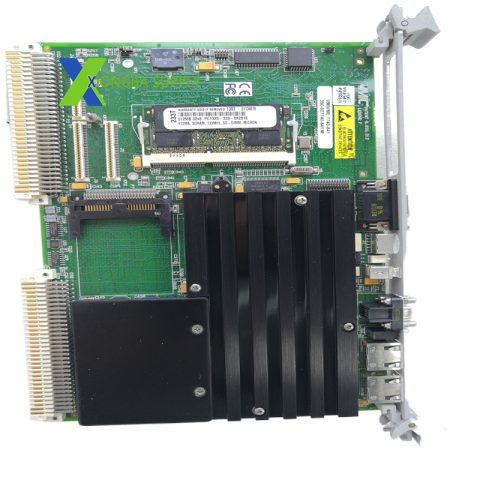

GE VMIVME-7700-110000 – VMEbus Single-Board Computer (SBC)

Technical Specifications

• Manufacturer: General Electric (GE) / Abaco Systems
• Model: VMIVME-7700-110000
• Form Factor: 6U VMEbus single-slot Eurocard
• Processor: Intel Ultra-Low Voltage Celeron 400 MHz
• Chipset: Intel 815E
• Memory:
  • SDRAM: Up to 512 MB (128 MB standard)
  • Flash: 128 MB CompactFlash (up to 1 GB optional)
  • Non-Volatile SRAM: 32 KB
• Graphics: 64-bit AGP SVGA video accelerator
• I/O Interfaces:
  • Ethernet: 2 × 10/100 Mbps ports
  • Serial: 4 × RS-232/422/485 ports
  • USB: 2 × USB 1.1 ports
  • IDE: 1 × primary, 1 × secondary (for flash storage)
  • Digital I/O: 8 lines (TTL-compatible)
• VMEbus Interface: VMEbus Rev. C.1 compliant, VME64 mode support
• Power Supply: 5 VDC, 5 A (redundant input supported)
• Power Consumption: Max 15 W
• Dimensions (L×W×H): 233 mm × 160 mm × 25 mm
• Weight: 0.5 kg (unit only); 2 kg (shipping weight)
• Operating Temperature: 0°C to +60°C (standard); -40°C to +70°C (extended)
• Storage Temperature: -40°C to +85°C
• Relative Humidity: 5%–95% (non-condensing)
• Certifications: CE, UL, CSA (industrial safety and EMC compliance)

Key Features

1. Low-Power High-Performance Processing
   • Equipped with an Intel Ultra-Low Voltage Celeron 400 MHz processor, delivering efficient computing power with minimal heat generation.
   • Intel 815E chipset with 100 MHz front-side bus ensures fast data processing and system responsiveness.
2. Rich Integrated I/O Connectivity
   • Dual 10/100 Mbps Ethernet ports enable high-speed network communication for data exchange and system networking.
   • Four serial ports support versatile serial communication protocols (RS-232/422/485) for connecting industrial devices and sensors.
   • On-board USB, IDE, and digital I/O ports provide flexible expansion and peripheral connectivity.
3. VMEbus System Compatibility & Control
   • Fully compliant with VMEbus Rev. C.1 and supports VME64 mode, ensuring seamless integration with standard VMEbus hardware.
   • Functions as a VMEbus controller, managing data transfer and communication between multiple VME modules in a system.
   • Dual-port RAM to VMEbus facilitates efficient data sharing in multi-processor applications.
4. Rugged Industrial-Grade Design
   • 6U single-slot Eurocard form factor with passive cooling, suitable for installation in standard industrial control cabinets.
   • Extended operating temperature range and ruggedized components ensure reliability in harsh industrial conditions, including extreme temperatures and electrical noise.
   • Battery-backed real-time clock/calendar and on-board reset switch and speaker for system monitoring and maintenance.
5. Flexible Storage & Expansion
   • Supports up to 512 MB SDRAM and 1 GB CompactFlash storage, providing sufficient memory and storage for industrial applications.
   • One PMC expansion site enables additional functionality via industry-standard PMC modules.
   • 32 KB non-volatile SRAM preserves critical data during power outages.
