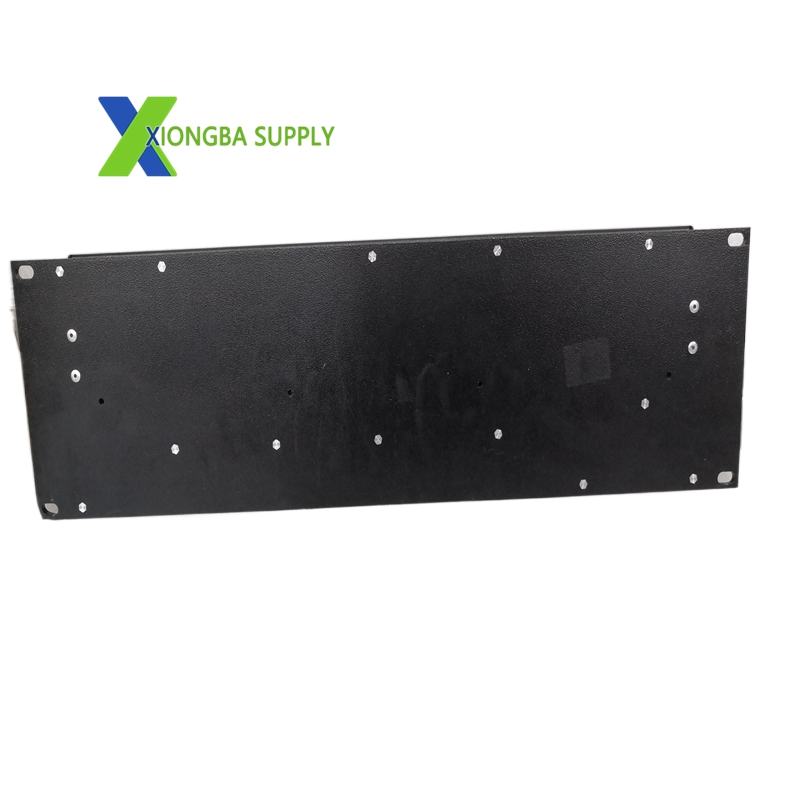

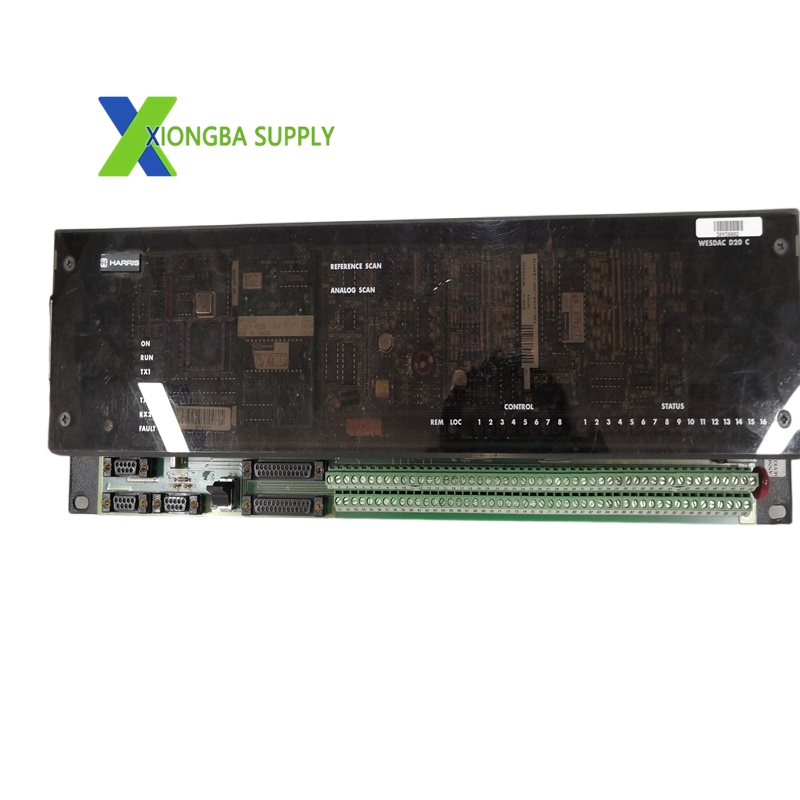

GE WESTERM D20C – Termination Module for WESDAC D20C I/O System

Technical Specifications

• Manufacturer: General Electric (GE Vernova)
• Model: WESTERM D20C
• Compatibility: WESDAC D20C Combination I/O Module, GE D20 Series DCS
• I/O Termination Capacity:
  • Digital Inputs: 16 points (24 VDC/120 VAC compatible)
  • Control Outputs: 8 points (relay or solid-state, tripping/closure)
  • Analog Inputs: 16 or 8 points (4–20 mA, 0–10 VDC)
  • Analog Outputs: 8 points (4–20 mA, 0–10 VDC)
• Terminal Type: Screw-clamp, field-wireable (14–22 AWG)
• Isolation: Galvanic isolation between field and logic sides
• Mounting: DIN rail or panel-mount compatible
• Operating Temperature: -40°C to +85°C (-40°F to 185°F)
• Relative Humidity: 5%–95% (non-condensing)
• Certifications: CE, UL, CSA (industrial safety and EMC compliance)
• Material: Flame-retardant industrial-grade plastic

Key Features

1. Modular Split Design
   • Detachable pairing with WESDAC D20C: WESTERM D20C handles field wiring; WESDAC D20C manages signal processing and communication.
   • Enables independent replacement of wiring or processing units without system shutdown.
2. Comprehensive Signal Termination
   • Supports mixed digital/analog I/O, accommodating 16 digital inputs, 8 control outputs, and configurable analog points.
   • Compatible with standard industrial signal types (4–20 mA, 0–10 VDC, 24 VDC/120 VAC digital).
3. Robust Electrical Protection
   • Galvanic isolation on all channels eliminates ground loops and protects against voltage spikes.
   • EMI/RFI shielding ensures signal integrity in electrically noisy industrial environments.
4. Simplified Wiring & Maintenance
   • Labeled, color-coded terminals reduce wiring errors and speed up troubleshooting.
   • Hot-swappable design allows quick module replacement without disrupting system operations.
5. Industrial-Grade Durability
   • Wide operating temperature range and flame-retardant housing withstand harsh plant conditions.
   • High-reliability screw-clamp terminals ensure secure connections for long-term operation.

Application Scenarios

• Power Generation
  • Gas/Steam Turbine Control: Termination for speed sensors, pressure transmitters, and trip/close actuators in combined-cycle and thermal power plants.
  • Hydroelectric Plants: Connects water level sensors, flow meters, and turbine governors to the DCS.
• Industrial Automation
  • Process Industries: Used in oil/gas, chemical, and petrochemical facilities for sensor/actuator wiring.
  • Manufacturing: Supports assembly lines, material handling, and quality control systems with mixed I/O needs.
• Critical Infrastructure
  • Water/Wastewater Treatment: Terminates level, pH, and flow sensors, plus valve and pump control outputs.
  • Data Centers & Facilities: Manages environmental monitoring (temperature/humidity) and HVAC control signals.
