GEF650NFLF2G5HIP6E – Multilin F650 Numerical Feeder Protection Relay & Bay Controller
In stock
Product Introduction
The F650NFLF2G5HIP6E, manufactured by GE Vernova (formerly GE Grid Solutions), is a high-performance, multifunctional numerical relay from the Multilin F650 series. Designed for medium- and high-voltage power distribution systems, it integrates comprehensive protection, precise control, accurate metering, and seamless communication into a single compact device. As a core component of substation automation, it ensures the safety, reliability, and efficiency of electrical networks by providing fast fault detection, isolation, and system monitoring.
Technical Specifications
- Manufacturer: GE Vernova (GE Grid Solutions)
- Model: F650NFLF2G5HIP6E
- Series: Multilin F650
- Product Type: Numerical Feeder Protection Relay & Bay Controller
- Rated Voltage: Up to 15 kV (medium-voltage systems)
- Rated Current: 600 A (standard)
- Protection Functions: Overcurrent (50/51), Ground Fault (50N/51N), Directional Overcurrent (67), Over/Undervoltage (27/59), Thermal Overload (49), Breaker Failure (50BF), Under/Over Frequency (81), Negative Sequence (46), Synchrocheck (25), Recloser (79)
- Measurement Capabilities: Current, Voltage, Power, Energy, Frequency, Power Factor; Three-phase, residual, and neutral measurements
- Metering Accuracy: ANSI C12.20 Class 0.5 (Energy), ±0.2% (Power)
- Event Recording: 479 events with 1 ms resolution; Oscillography up to 32 samples/cycle
- Communication Protocols: IEC 61850, DNP3.0, Modbus RTU/TCP, IEC 60870-5-103/104, PRP & HSR
- Communication Ports: 2×Ethernet, 2×RS485, 1×RS232, 1×USB
- Power Supply: 85–265 V AC/DC or 20–60 V DC (redundant input)
- Power Consumption: Max 15 W (operating)
- Dimensions (L×W×H): 177 mm × 177 mm × 144 mm (19” rack mount, 4U height)
- Weight: 4.95 kg
- Operating Temperature: -40°C to +85°C (-40°F to 185°F)
- Storage Temperature: -40°C to +85°C (-40°F to 185°F)
- Relative Humidity: 5%–95% (non-condensing)
- Certifications: CE, UL, CSA, IEC 61850 Ed. 2, IEEE C37.90
Key Features
-
Comprehensive & High-Speed Protection
- Offers a full suite of ANSI-standard protection elements for feeders, transformers, motors, and capacitor banks.
- Fast fault detection and tripping (≤1 cycle) minimizes equipment damage and service disruption.
-
Integrated Bay Control & Automation
- Functions as a digital bay controller, enabling remote control of breakers, disconnectors, and grounding switches.
- Supports advanced automation features: auto-reclosing, synchrocheck, load shedding, and fault isolation.
-
Precision Metering & Monitoring
- Provides accurate, real-time measurements of electrical parameters for billing, load management, and system analysis.
- Captures detailed event logs and oscillographic data for post-fault analysis and system optimization.
-
Flexible & Open Communication
- Supports multiple industry-standard protocols for seamless integration into SCADA, DCS, and substation automation systems.
- Dual Ethernet ports with PRP/HSR redundancy ensure reliable communication in critical applications.
-
User-Friendly HMI & Configuration

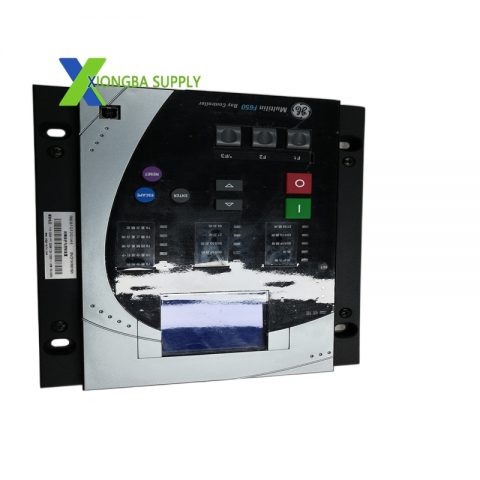

- Large graphical LCD display with customizable single-line diagrams for intuitive local monitoring and control.
- Programmable pushbuttons and a rotary knob simplify navigation and setting adjustments.
- Configured via GE’s ENERVISTA 650 Setup Software or built-in web server for remote access and maintenance.
-
- Compact, metal-enclosed construction suitable for panel or 19-inch rack mounting in harsh industrial environments.
- Wide operating temperature range and high immunity to electromagnetic interference (EMI) ensure long-term reliability.
Application Scenarios
-
Utility Distribution Systems
- Primary protection and control for overhead and cable feeders in transmission and distribution substations.
- Backup protection for transformers, busbars, and capacitor banks.
-
- Main incoming feeder protection for manufacturing facilities, refineries, and chemical plants.
- Motor and transformer protection in heavy industries (steel, mining, pulp & paper).
-
Renewable Energy Facilities
- Grid connection protection for solar farms, wind farms, and battery energy storage systems (BESS).
- Feeder control for microgrids and distributed energy resources (DER).
-
Commercial & Infrastructure Buildings
- Medium-voltage distribution system protection for shopping malls, hospitals, data centers, and airports.
- Power system control for railway networks and transportation hubs.
-
Substation Automation & Smart Grids
- Core protection and control unit for IEC 61850-based digital substations.
- Integration with SCADA and smart grid systems for real-time monitoring, control, and data analytics.
