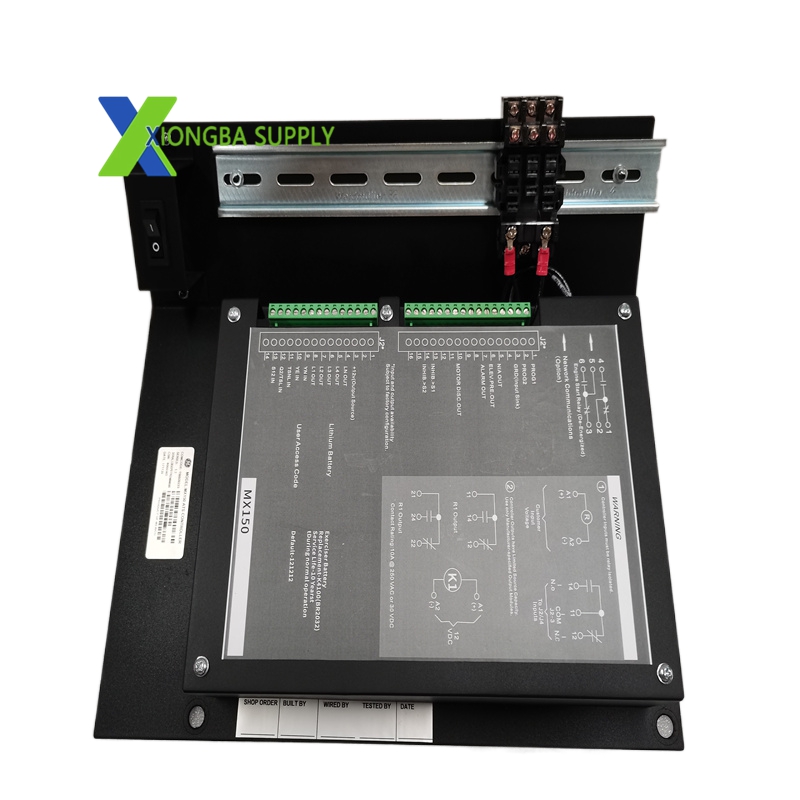

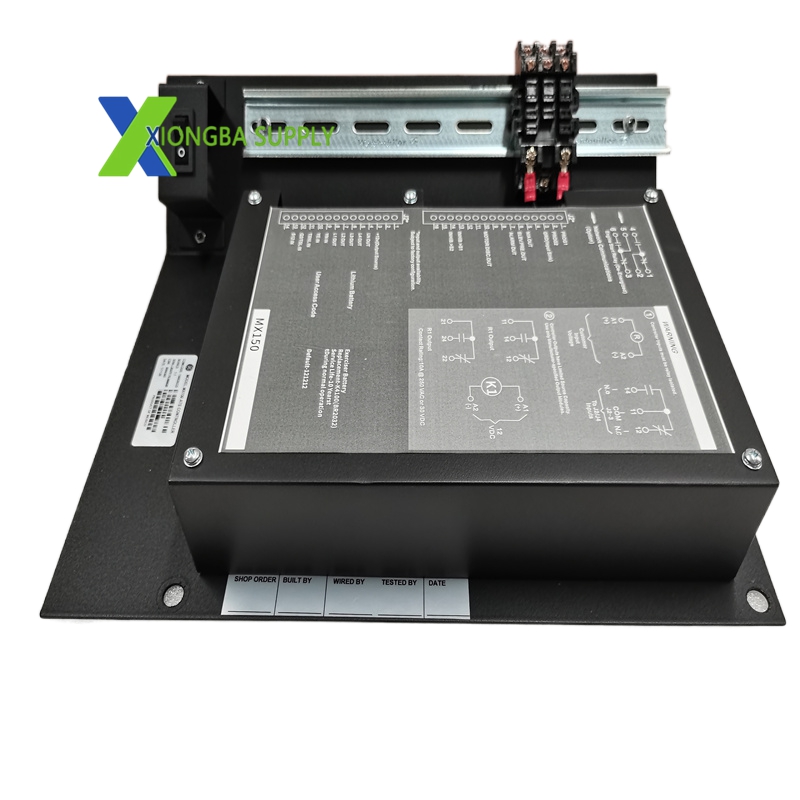

MX150 - Markex 150 Data Concentrator and Multiplexer for GE Mark Series Systems

MX150 – Markex 150 Data Concentrator and Multiplexer for GE Mark Series Systems

In stock

Product Introduction:
The MX150 is a data concentrator and multiplexer board designed for GE Mark V turbine control systems. The “MX” stands for Multiplexer, and “150” is the model number. Its primary function is to aggregate data from multiple serial communication links (RS-232, RS-422, RS-485) and present it as a single high-speed data stream to the main CPU via the VMEbus. This allows the control system to communicate with dozens of remote devices (meters, relays, PLCs) over a single serial port, dramatically reducing wiring complexity. The MX150 was essential in large power plants where the turbine controller needed to talk to hundreds of field devices.

Technical Specifications:
Board Type: Data Concentrator / Multiplexer (MX150)
Serial Channels: 8 to 16 independent RS-232/RS-422/RS-485 ports
Baud Rate: 300 to 115200 bps per channel (configurable)
Protocol: GE Mark protocol (GDH), Modbus RTU, DNP 3.0, IEC 60870-5-101
VMEbus Interface: VME32 (D32 master/slave)
Buffer Memory: 64 KB RAM for packet buffering
Polling Rate: Up to 1000 polls per second across all channels
Power: +5V (1 Amp) from VMEbackplane
Form Factor: VMEbus Eurocard (6U height)
Operating Temperature: 0 to 60 degrees Celsius

Functional Features:
Channel Multiplexing: Combines up to 16 serial streams into one VMEbus data stream, reducing CPU overhead.
Intelligent Polling: Supports scheduled polling, event-driven polling, and spontaneous reporting from field devices.
Protocol Translation: Translates between GE Mark protocol and standard protocols (Modbus, DNP3) on the fly.
Error Detection: CRC checking on every packet; corrupted packets are automatically re-requested.
Hot Standby: Supports redundant MX150 boards for zero-downtime communication.
Configurable Addressing: Each serial channel can be independently addressed and configured via software.
