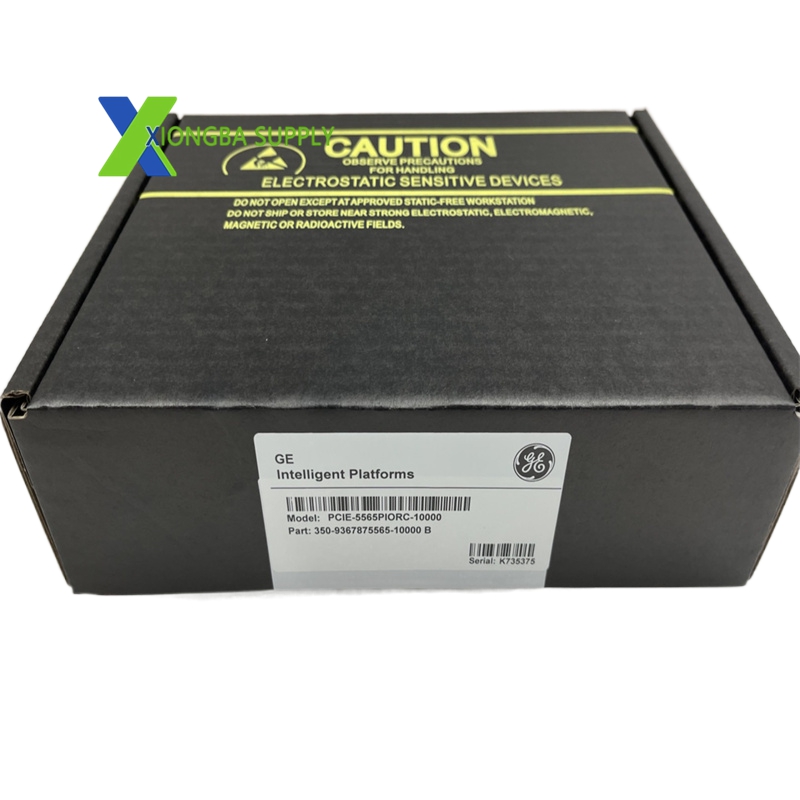

PCIE-5565PI0RC-100000 - PCI Express to Reflective Memory Interface Board

PCIE-5565PI0RC-100000 – PCI Express to Reflective Memory Interface Board

In stock

Product Introduction:
The GE PCIE-5565PI0RC-100000 is a high-performance PCI Express interface board that provides a direct bridge between a host computer and the Reflective Memory network. Reflective Memory is a deterministic, high-speed shared memory technology used extensively in GE Mark VIe, Mark V, and Excitation control systems. This board allows a PC-based HMI, historian server, or engineering workstation to read and write data to the Reflective Memory network in real-time with microsecond-level latency. The “100000” suffix indicates a specific configuration or serial number range for a high-volume deployment variant.

Technical Specifications:
Board Type: PCI Express to Reflective Memory Interface
Bus Interface: PCI Express x4 Gen 2 (5 GT/s per lane)
Reflective Memory Ports: 1 or 2 RJ-45 ports (100 Mbps or 1 Gbps Reflective Memory)
Memory Size: 256 KB to 4 MB of on-board dual-ported RAM
Latency: Less than 1 microsecond (deterministic)
Network Topology: Daisy-chain or star topology supporting up to 256 nodes
Operating System Support: Windows 7, Windows 10, Windows Server 2012/2016, Linux (with driver support)
Driver: Includes GE-certified Reflective Memory driver for seamless integration
Form Factor: Standard PCI Express half-height or full-height card

Functional Features:
Deterministic Data Transfer: Provides guaranteed, jitter-free data delivery essential for real-time control and protection systems.
Shared Memory Architecture: Any node on the Reflective Memory network can read or write to any other node’s memory instantly, creating a distributed shared memory system.
