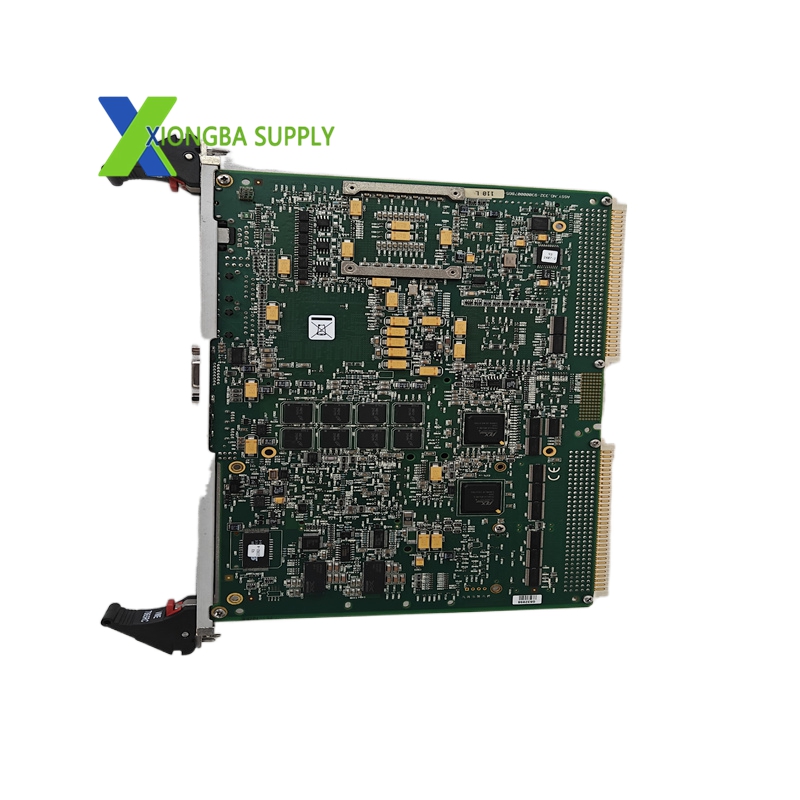

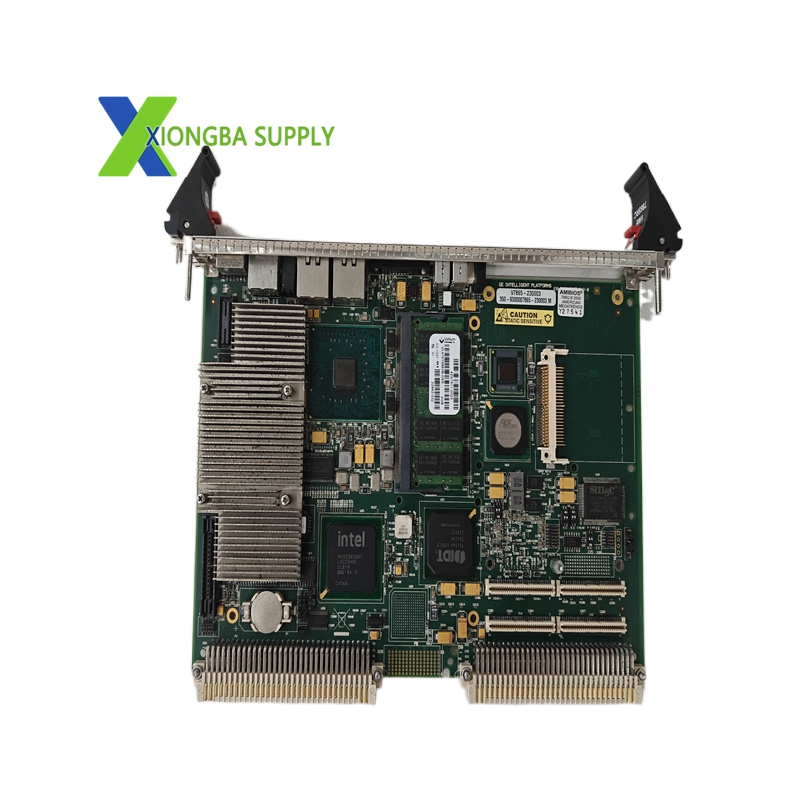

Product Name: GE VME7865RC V7865-23003 - VMEbus Single Board Computer with Motorola 68060 Processor

Product Name: GE VME7865RC V7865-23003 – VMEbus Single Board Computer with Motorola 68060 Processor

In stock

Product Introduction:
The GE VME7865RC is a VMEbus single board computer built around the Motorola 68060 processor, one of the fastest embedded processors ever produced for the VMEbus ecosystem. The “7865” identifies the 68060 core, while “RC” denotes Revision C. The extended part number “V7865-23003” and “350-9300007865-230003 M” specifies the exact configuration: 33 MHz CPU, 32MB RAM, and specific I/O options. This board is a powerhouse for applications demanding extreme computational speed, such as real-time signal processing, high-speed data acquisition, and complex mathematical modeling. The “M” suffix indicates a military-grade or extended-temperature variant in some configurations.

Technical Specifications:
Board Type: VMEbus Single Board Computer (SBC)
Processor: Motorola 68060 at 33 MHz with integrated FPU and MMU
Memory: 32MB DRAM on-board
Flash Memory: 2MB boot flash
VMEbus: VME64 compliant (D64/A64)
Ethernet: 10/100Base-T Ethernet (faster than the 7807)
Serial Ports: 2 RS-232 + 1 RS-485
SCSI: On-board narrow SCSI controller for disk or tape drives
Floating Point Performance: 50 MFLOPS (significantly faster than the 7807)
Power Consumption: Approximately 12 Watts
Operating Temperature: 0 to 60 degrees Celsius (or -40 to +85 for M variant)
Form Factor: 6U VMEbus Eurocard

Functional Features:
68060 Performance: The 68060 is roughly twice as fast as the 68040 and significantly faster than the 68070 for floating-point operations.
Integrated SCSI: The on-board SCSI controller allows direct connection to hard drives and tape backup units without consuming a VME slot.
10/100 Ethernet: Faster network connectivity compared to the 10Base-T on the 7807.
Math Coprocessor: The 68060 has a superior floating-point unit, making it ideal for DSP (Digital Signal Processing) applications.
Cache Memory: 8KB instruction cache + 8KB data cache on-chip for ultra-fast data access.
Military Grade Option: The “M” variant offers extended temperature operation and ruggedized construction for defense applications.

Application Scenarios:
Digital Signal Processing: Real-time audio processing, seismic data analysis, and radar pulse compression.
Medical Imaging: Controls CT scanners and MRI machines requiring high-speed image reconstruction.
High-Frequency Trading: Executes financial algorithms where every microsecond of latency matters.
Scientific Instrumentation: Controls particle accelerators, spectrometers, and telescopes.
