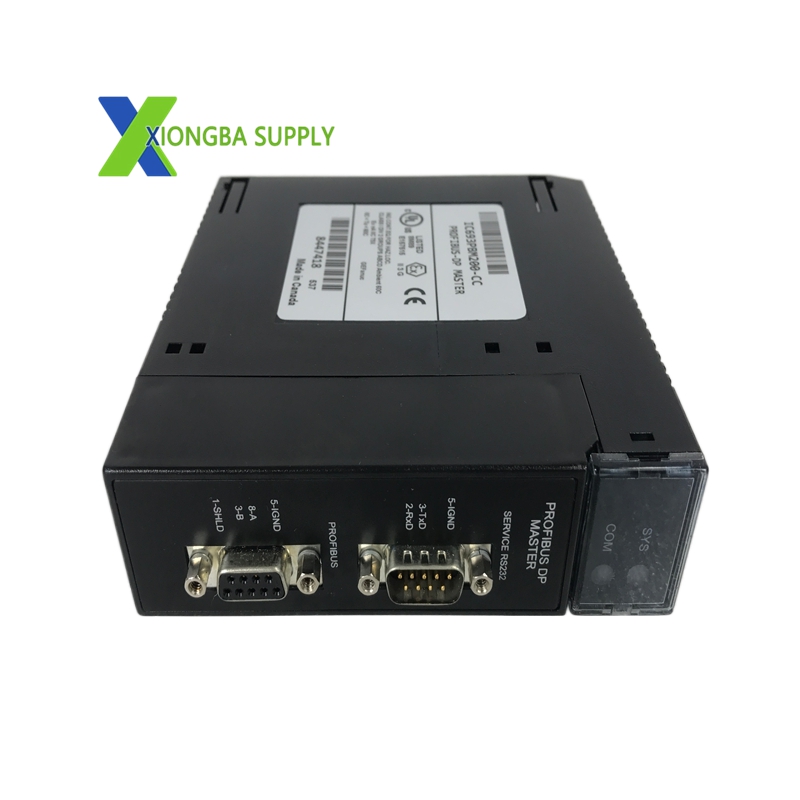

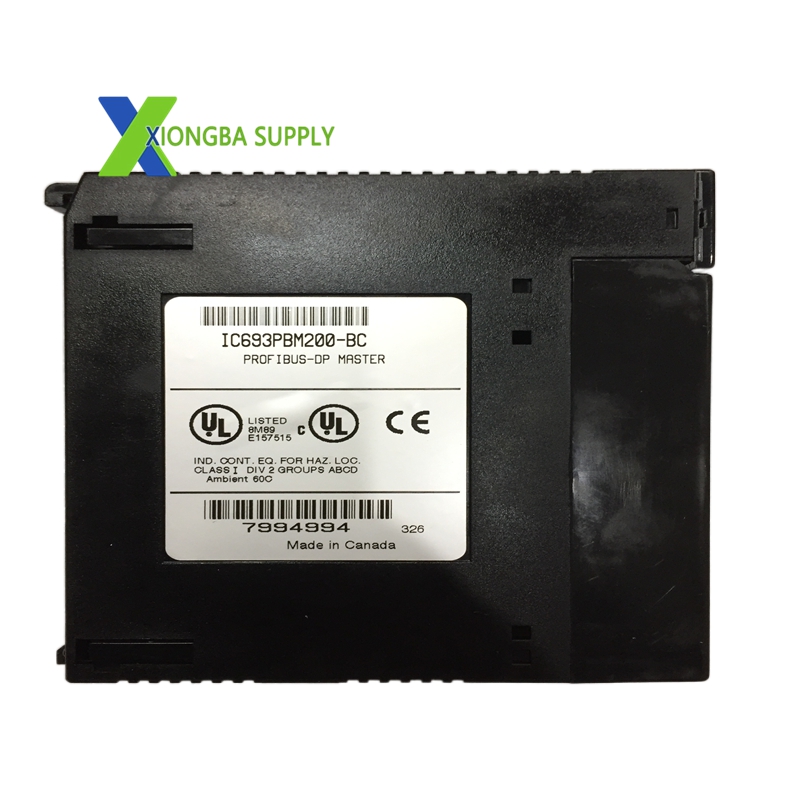

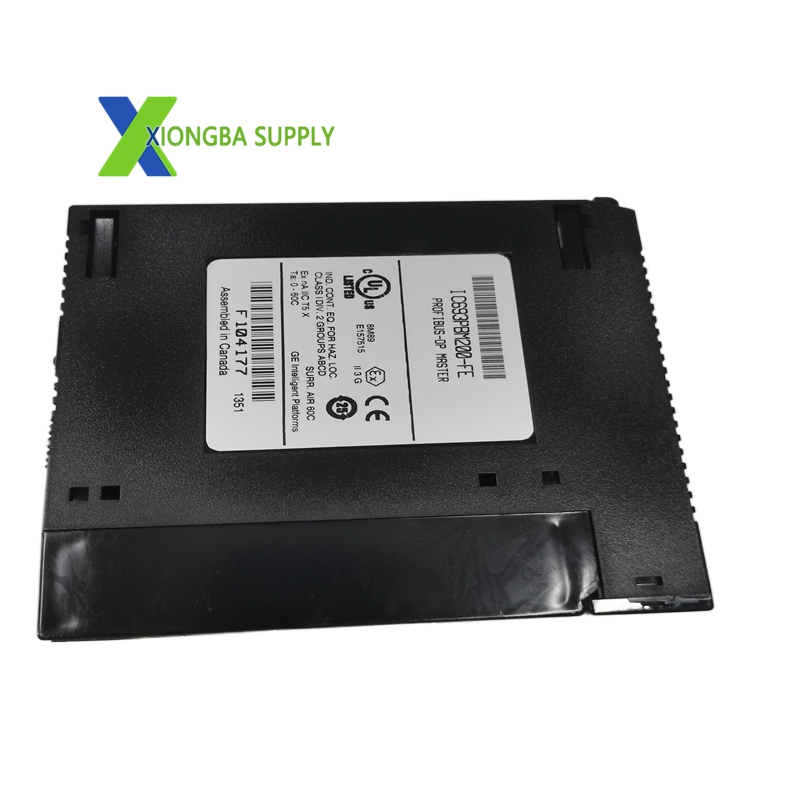

GE IC693PBM200 PROFIBUS DP Master Module

Technical Specifications

• Manufacturer: GE Fanuc (Emerson)
• Product Line: Series 90-30 PLC System
• Part Number: IC693PBM200
• Communication Protocol: PROFIBUS DP (Supports DP-V0 and DP-V1)
• Max. Number of Slaves: 125 DP Slaves
• Data Transfer Size:
  • Input: 244 bytes per slave
  • Output: 244 bytes per slave
• Baud Rates: 9.6 kbps, 19.2 kbps, 93.75 kbps, 187.5 kbps, 500 kbps, 1.5 Mbps, 12 Mbps
• Ports:
  • 1 x RS485 PROFIBUS DP Master Port (9-pin D-Sub female connector)
  • 1 x RS232 Service Port (for firmware updates and diagnostics)
• Electrical Isolation: 500 V DC isolation between communication interface and logic ground
• LED Indicators: PWR (Power), RUN (Operation), COM (Communication), SF (System Fault)
• Operating Voltage: 5 V DC (supplied by PLC backplane)
• Power Consumption: 2.5 W
• Operating Temperature: 0°C to +60°C
• Storage Temperature: -40°C to +85°C
• Dimensions: 3.5 x 13.5 x 13.5 cm
• Weight: 0.20 kg (0.44 lbs)

Key Features

1. Powerful Master Capability: Controls up to 125 DP Slaves, supporting large-scale distributed I/O architectures.
2. High-Speed Communication: Supports baud rates up to 12 Mbps, ensuring fast and reliable data exchange.
3. Extensive Data Handling: Each slave can exchange up to 244 bytes of input and output data, accommodating complex control tasks.
4. Sync and Freeze Modes: Enables synchronized data exchange and freeze functions for precise process control.
5. Firmware Updateable: The RS232 service port allows for easy firmware upgrades to enhance performance and compatibility.
6. Robust Diagnostics: LED indicators provide real-time status monitoring for power, operation, communication, and system faults.
7. Industrial Grade Reliability: Designed with electrical isolation and a rugged form factor to withstand harsh industrial environments.

Applications Scenarios

• Factory Automation: Integrates GE 90-30 PLCs with PROFIBUS DP slaves (e.g., remote I/O modules, sensors, actuators) in assembly lines, packaging machines, and material handling systems.
• Process Control: Connects PLCs to PROFIBUS-compliant process instruments (e.g., flow meters, temperature transmitters, control valves) in chemical, water treatment, and pharmaceutical plants.
• Motion Control: Communicates with PROFIBUS DP-enabled motor drives, inverters, and servo systems for precise speed and position control in machine tools and robotics.
• Building Automation: Manages HVAC systems, lighting controls, and security devices via PROFIBUS DP networks in large commercial buildings.
• Energy Management: Integrates power monitoring devices and renewable energy systems into a centralized control network。
