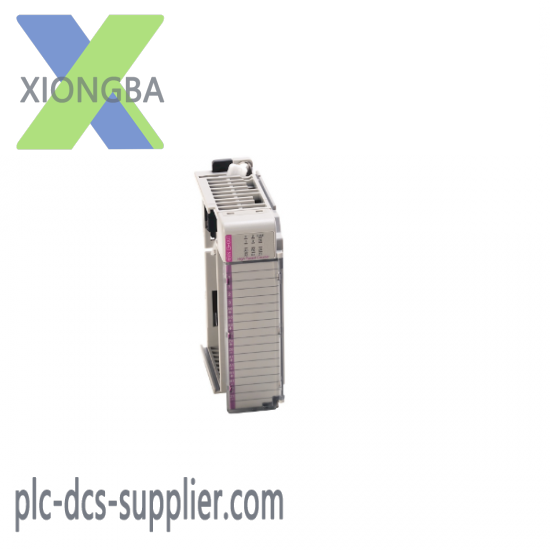

Rockwell Automation 1769-OB16P CompactLogix 16-P Output Module

Type:CompactLogix 16-P Output Module

Module Type:Discrete Output

Number of Outputs:16

Voltage Category:24VDC

Output Voltage Range:20.4-26.4VDC

Sourcing Outputs:(16)

Mounting:DIN Rail

Input Power:24 Volts DC

Operating Voltage Range:20 to 26.4 Volts DC

Single Slot Compatibility:Yes

Backplane Compatibility:Yes

Access to Processor Memory:For Data Transfer

Data Transfer Method:Ladder Logic

Protocol Compatibility:Modbus TCP/IP

    The Rockwell Automation 1769-OB16P CompactLogix 16-P Output Module is engineered with precision and reliability in mind, providing a robust solution for complex industrial automation tasks. Its modular design allows seamless integration into existing PLC systems, enhancing efficiency and reducing downtime.

    Each of the 16 discrete outputs is capable of handling up to 250 mA, making it suitable for a wide range of applications, from controlling motors to managing solenoids and relays. The module supports a power supply voltage of 12 to 24 VDC, ensuring compatibility with various industrial power sources.

    Equipped with a Modbus RTU communication interface, this module facilitates easy data exchange with other components in the automation network, streamlining system operation and maintenance. The IP20 enclosure type provides basic protection against dust and splashes, ensuring durability in harsh industrial environments.

    Operational in a temperature range from -25°C to +60°C, the Rockwell Automation 1769-OB16P can withstand extreme conditions, guaranteeing consistent performance throughout the year. Its compact size and lightweight design make it easy to install and maintain, optimizing space within the control panel.

    This module comes with comprehensive documentation and support, ensuring quick setup and trouble-free operation. It is an indispensable component for manufacturers aiming to upgrade their automation capabilities, offering a balance between performance, reliability, and ease of use.
