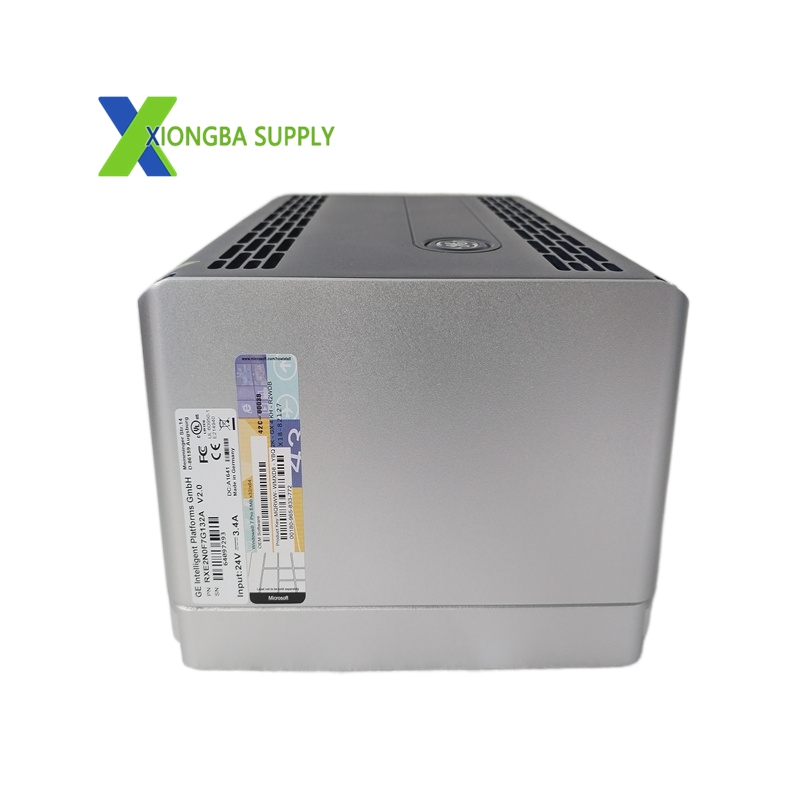

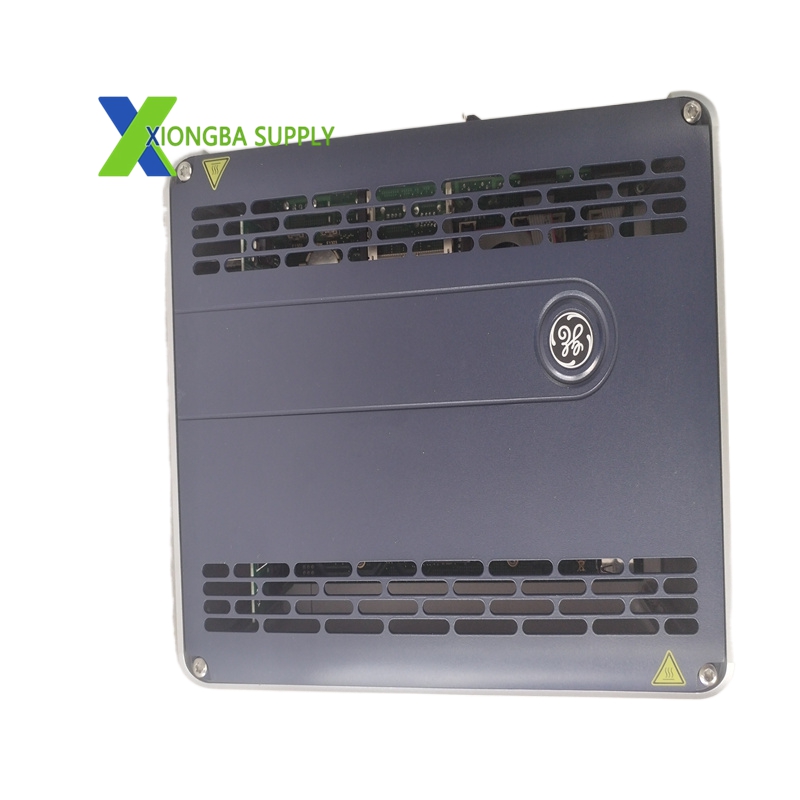

RXE2N0F7G132A - GE Fanuc RX Series High-Speed Ethernet Communication Interface Module

RXE2N0F7G132A – GE Fanuc RX Series High-Speed Ethernet Communication Interface Module

In stock

Product Introduction:
The RXE2N0F7G132A is a high-performance Ethernet communication module manufactured by GE Fanuc Automation as part of the RX7i series Programmable Logic Controller (PLC) platform. This module serves as the primary network interface for the RX7i controller, enabling seamless integration with plant-wide Ethernet networks, Supervisory Control and Data Acquisition (SCADA) systems, and other automation devices. It supports multiple industrial Ethernet protocols and provides deterministic communication for real-time control applications. The module is designed for use in harsh industrial environments where reliable, high-speed data exchange is critical for process automation and motion control.

Technical Specifications:
Module Type: Ethernet Communication Interface (RXE Series)
Compatible Controller: GE Fanuc RX7i Series PLC
Ethernet Ports: 2 RJ-45 Gigabit Ethernet ports (10/100/1000 Mbps)
Supported Protocols: Ethernet/IP, Modbus TCP, PROFINET, TCP/IP, UDP, SNMP, HTTP
Communication Speed: Up to 1 Gbps full-duplex
Network Topology: Star, Ring (with MRP), Line, Tree
Buffer Memory: 256 KB onboard buffer for data queuing
LED Indicators: Link status, activity, error, and power LEDs
Power Consumption: Approximately 3.5 Watts
Operating Temperature: 0 to 55 degrees Celsius
Form Factor: RX7i Series I/O module (fits in standard RX7i backplane slots)
Isolation: 1500V DC isolation between module and backplane

Functional Features:
Dual-Port Redundancy: Two Ethernet ports support network redundancy via MRP (Media Redundancy Protocol) for zero-downtime failover.
Protocol Flexibility: Simultaneously supports multiple protocols, allowing the same controller to communicate with HMI panels, historians, and remote I/O using different standards.
Deterministic Communication: Provides time-synchronized data exchange for motion control and high-speed I/O applications.
Web Server Capability: Hosts an embedded web server for remote diagnostics, configuration, and firmware updates via a standard browser.
Advanced Diagnostics: Comprehensive LED status and software-based diagnostic tools for troubleshooting network issues in real-time.
Firmware Upgradable: Supports field-loadable firmware updates to add new protocols or improve performance.
