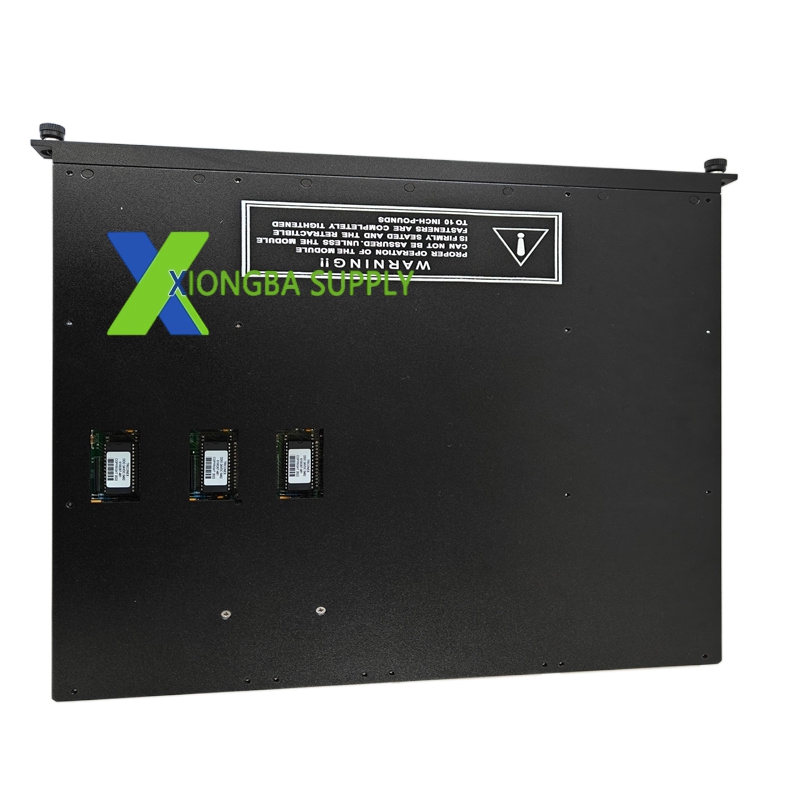

Triconex 3664 - Triple Redundant 32-Channel High-Density Analog Input Module for Safety Instrumented Systems

Triconex 3664 – Triple Redundant 32-Channel High-Density Analog Input Module for Safety Instrumented Systems

In stock

Product Introduction:
The Triconex 3664 is a high-density analog input module for Triconex Safety Instrumented Systems. The “3664” designation indicates 32 channels of analog input (the “64” historically referred to a 64-point family, but this specific model is 32 channels). This board is designed for large-scale safety systems that require hundreds of analog measurements, such as entire refinery units or large power plant sections. The TMR architecture provides SIL 3 certification for every channel. The 3664 offers the highest channel density in the Triconex analog input family, making it the board of choice for applications where space and cost must be minimized without compromising safety integrity.

Technical Specifications:
Board Type: Triple Redundant High-Density Analog Input Module
Model: 3664
Channels: 32 single-ended or 16 differential analog input channels
Input Types: 4-20mA, 1-5V, 0-10V, RTD (Pt100, Pt1000, Cu10, Ni120), Thermocouple (all standard types)
Resolution: 16-bit A/D conversion
Accuracy: +/- 0.1% of full scale
Scan Rate: 10ms per channel (simultaneous sampling)
Isolation: 1500V RMS channel-to-channel
Redundancy: Full TMR with 2-out-of-3 voting
Diagnostics: Per-channel burnout, wire break, short circuit, out-of-range, sensor failure
Operating Temperature: 0 to 60 degrees Celsius
Form Factor: Triconex standard module (typically 6U height due to high channel count)
Power Consumption: Approximately 10 Watts
Certifications: SIL 3, IEC 61508, ATEX, FM Class I Div 2

Functional Features:
32 Channels in One Slot: Extremely high density reduces the number of modules and rack space required for large I/O counts.
Simultaneous Sampling: All 32 channels are sampled at the exact same instant, preserving phase relationships critical for safety calculations.
Per-Channel Configuration: Each channel independently configurable for input type, range, filtering, and alarm setpoints.
Cold Junction Compensation: Built-in high-precision CJC for thermocouple inputs.
Diagnostic Memory: Stores the last 1000 events per channel for post-trip forensic analysis.
Self-Calibration: Supports on-board zero and span calibration without removing the board.

Application Scenarios:
Refinery Safety Systems: Monitors hundreds of temperature, pressure, and level signals across an entire refinery process unit.
Power Plant Boiler Protection: Reads all boiler tube temperatures, steam pressures, and water levels for trip logic.
Large Chemical Plants: Manages I/O for multiple reactor safety systems from a single rack.
Pipeline Compressor Stations: Monitors dozens of compressor vibration, temperature, and pressure signals.
