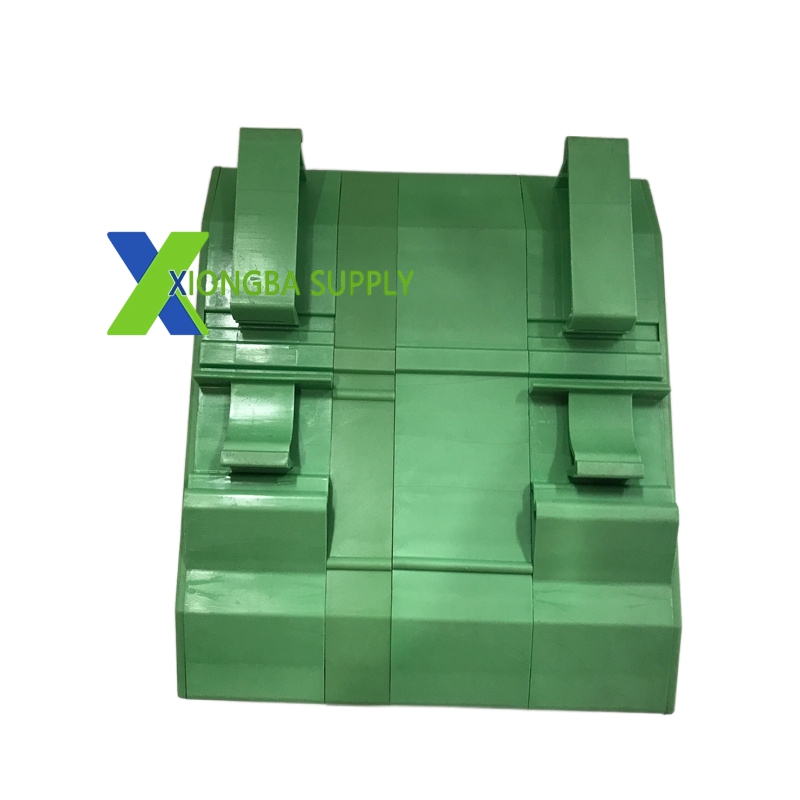

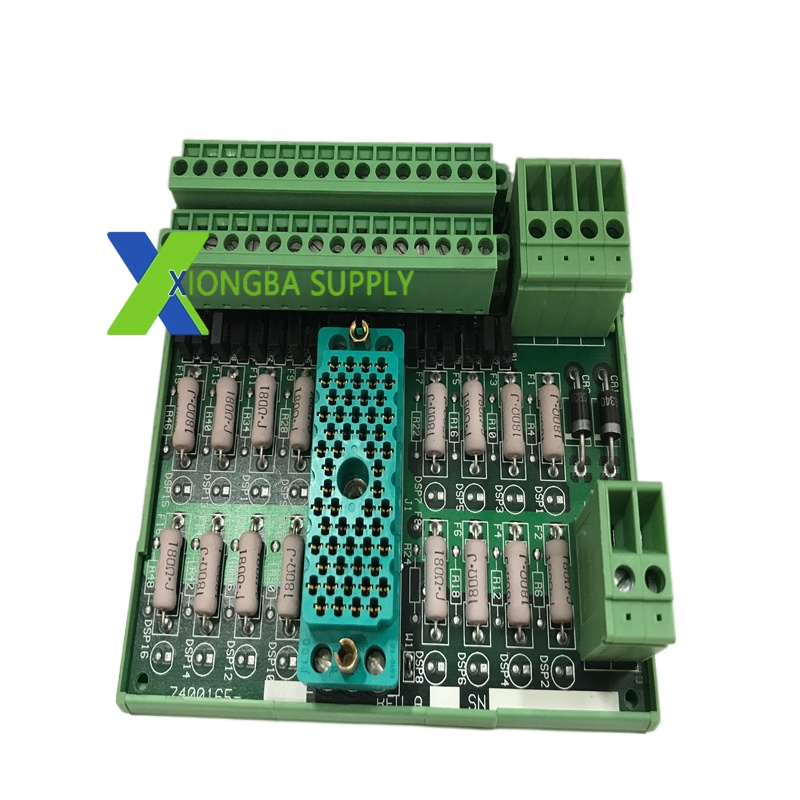

Triconex 9761-210 – Dual Serial Communication Module for Tricon Safety Controller

In stock

Product Introduction:
The Triconex 9761-210 is a dedicated serial communication module for the Tricon safety instrumented system. This board provides two independent serial communication ports: one RS-232 (DB-9) and one RS-485 (terminal block), allowing the Tricon controller to communicate with legacy field devices, remote I/O racks, modems, and third-party equipment that only support serial protocols. The “210” designation specifies the dual-port configuration (one of each type). The module supports Modbus RTU master/slave, DF1 slave, and Tricon native protocols. It is fully triple modular redundant, meaning both serial ports have three independent communication processors that vote on every transmitted and received byte.

Technical Specifications:
Board Type: Serial Communication Module
Ports: 1 RS-232 (DB-9) + 1 RS-485 (terminal block)
Protocols: Modbus RTU, DF1 Slave, Tricon Native
Baud Rates: 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 bps
RS-485: Half-duplex, supports up to 32 devices on the bus
RS-232: Full-duplex, DTE/DCE configurable
Isolation: 500V RMS opto-isolated
Redundancy: Full TMR on both ports
Power Consumption: Approximately 2.5 Watts
Form Factor: Tricon I/O Carrier compatible module
Diagnostics: Per-port TX/RX LEDs, error counters, framing error detection

Functional Features:
Dual Protocol Support: RS-232 for point-to-point connections (modems, laptops) and RS-485 for multi-drop networks (remote I/O, VFDs).
Modbus Master/Slave: Can actively poll Modbus devices (master) or respond to Modbus polls from a DCS (slave).
DF1 Slave: Appears as a DF1 slave device to Allen-Bradley PLCs, enabling direct integration with Rockwell-based plants.
Error Detection: CRC checking, framing error detection, and parity error detection on every received byte.
Auto-Retry: Automatically retries failed communications up to 3 times before declaring a fault.
Watchdog Timer: Resets the communication processor if it hangs, ensuring the port never locks up.
