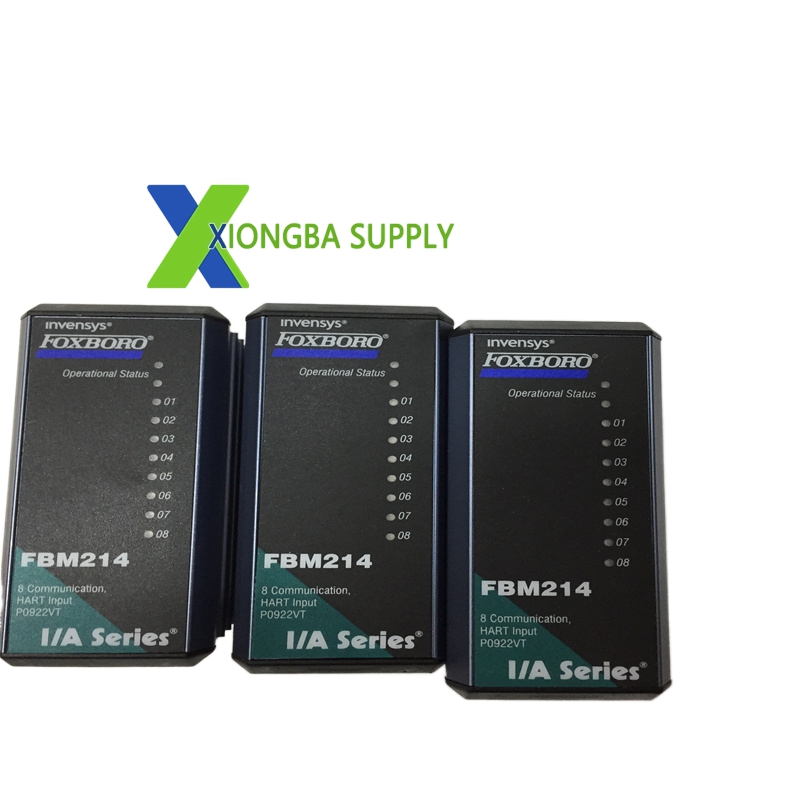

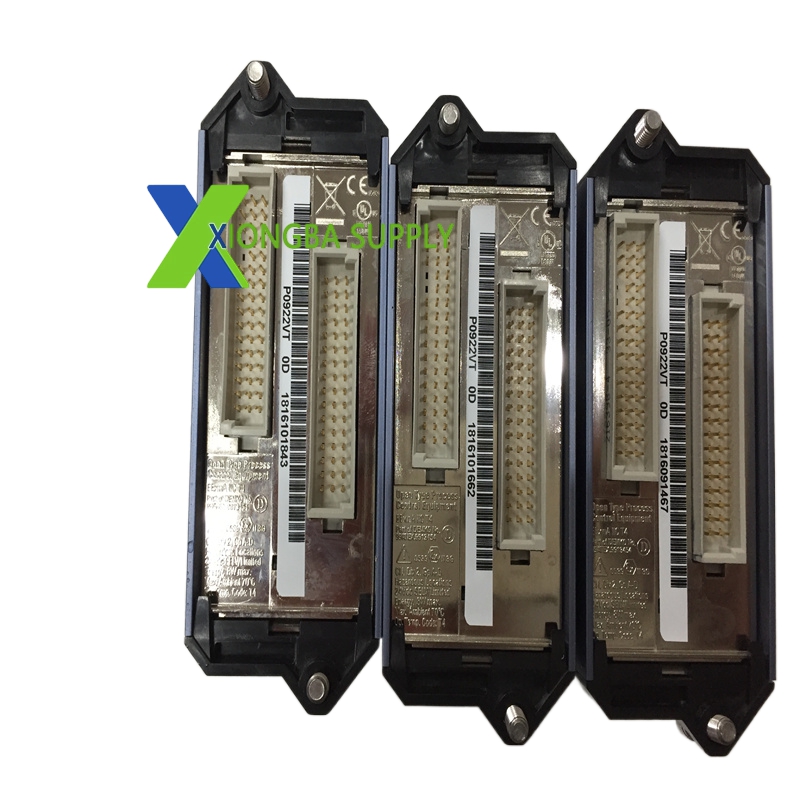

Foxboro FBM214 - I/A Series Profibus DP Slave Communication Module

Foxboro FBM214 – I/A Series Profibus DP Slave Communication Module

In stock

Product Introduction:
The Foxboro FBM214 is a Profibus DP (Decentralized Peripherals) communication module for the I/A Series Distributed Control System. This module allows the I/A Series controller to communicate with Profibus DP field devices such as remote I/O stations, drives, valves, and analyzers. The FBM214 acts as a Profibus DP slave on the Profibus network, exchanging process data (input and output) with the Profibus DP master (typically a Siemens PLC or a dedicated Profibus master). This module is essential for plants that use a mixed-vendor architecture, where the main control system is Foxboro I/A Series but the field devices are Profibus DP compatible.

Technical Specifications:
Board Type: Profibus DP Slave Communication Module
Protocol: Profibus DP (V0 or V1)
Baud Rate: 9.6 kbps to 12 Mbps (auto-detection)
I/O Data: Up to 256 bytes input and 256 bytes output per module
Station Address: Configurable from 1 to 126
Isolation: 1500V RMS galvanic isolation
Processor: 32-bit RISC with dedicated Profibus DP controller
Memory: 8MB Flash, 4MB RAM
Power: 5V DC from I/A Series backplane
Form Factor: 3U I/A Series Eurocard
Operating Temperature: 0 to 60 degrees Celsius

Functional Features:
Profibus DP Slave: Acts as a slave device on the Profibus DP network, exchanging process data with the master on every scan cycle.
Mixed-Vendor Integration: Enables Foxboro I/A Series controllers to communicate with Siemens, ABB, and other Profibus DP devices.
GSD File Support: Uses standard GSD (General Station Description) files for seamless integration with any Profibus DP device.
Diagnostic Monitoring: Monitors Profibus communication quality, station status, and device diagnostics.
Hot Swappable: Can be replaced while the system is running.
Dual Redundant Profibus: Supports redundant Profibus DP networks (DPS1 and DPS2) for high-availability applications.

Application Scenarios:
Mixed-Vendor Plants: Used in plants where the DCS is Foxboro I/A Series but the field devices (drives, remote I/O) are Profibus DP from Siemens or ABB.
Remote I/O Integration: Connects Profibus DP remote I/O stations to the Foxboro controller for distributed I/O architectures.
Drive Control: Communicates with Profibus DP variable frequency drives (VFDs) for motor speed control.
Retrofit Projects: Enables older Profibus DP field devices to be integrated into a new Foxboro I/A Series DCS.
