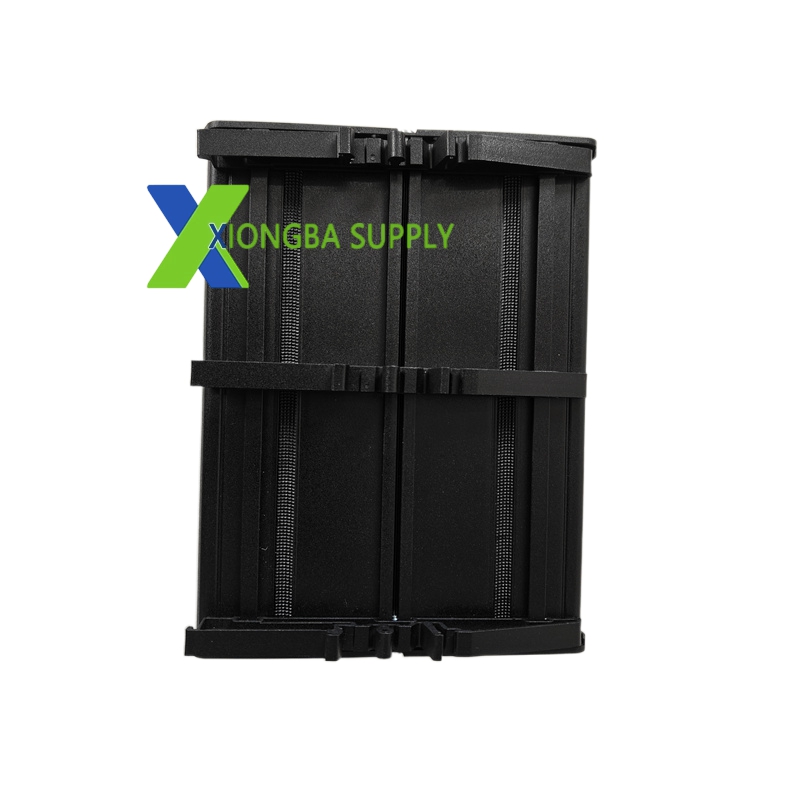

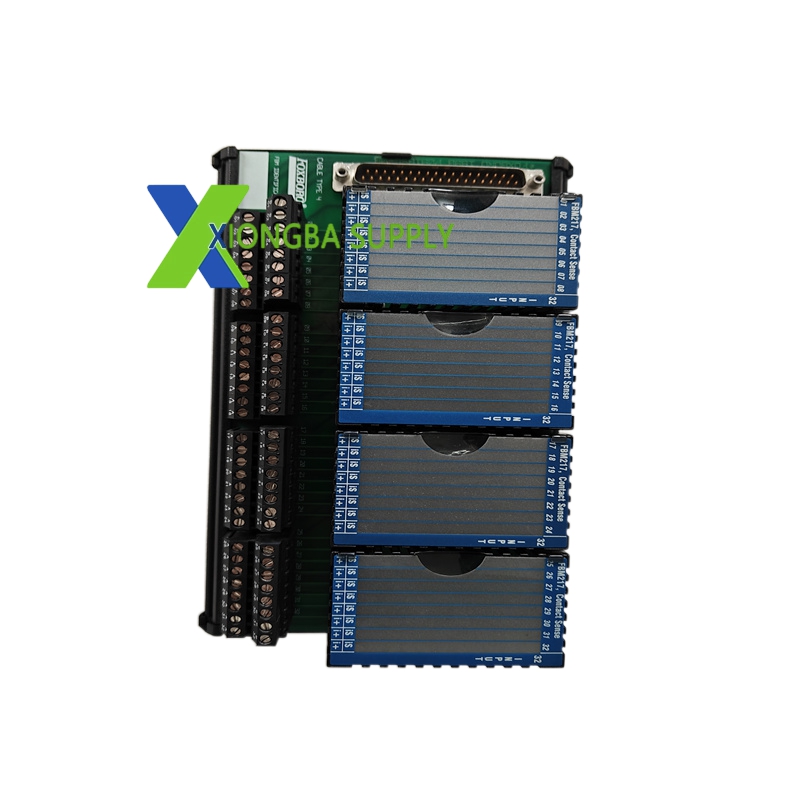

Foxboro FBM217 P0916PW - I/A Series Foundation Fieldbus H1 Dual-Channel Module with P0916PW Configuration

Foxboro FBM217 P0916PW – I/A Series Foundation Fieldbus H1 Dual-Channel Module with P0916PW Configuration

In stock

Product Introduction:
The Foxboro FBM217 P0916PW is another firmware variant of the FBM217 dual-channel Foundation Fieldbus H1 module. The “P0916PW” suffix indicates a specific firmware configuration optimized for power and utility applications. This firmware includes pre-configured function blocks for boiler control, turbine control, and power generation applications. The module provides two independent H1 channels with up to 32 devices per channel, acting as the Link Active Scheduler and executing advanced control logic locally. The P0916PW variant is specifically tuned for the unique requirements of power plants, including fast update rates for turbine control and enhanced diagnostics for boiler safety systems.

Technical Specifications:
Board Type: Foundation Fieldbus H1 Dual-Channel Module
Firmware: P0916PW (Power/Utility optimized)
Channels: 2 H1 channels (32 devices per channel, 64 total)
Communication: H1 Foundation Fieldbus (31.25 kbps)
Special Function Blocks: Boiler PID, Turbine Speed Control, Generator Load Sharing
Processor: 32-bit RISC with dedicated FF coprocessor
Memory: 16MB Flash, 8MB RAM
Isolation: 1500V RMS per channel
Update Rate: 50ms for turbine loops, 250ms for boiler loops
Power: 5V DC from backplane
Form Factor: 3U I/A Series Eurocard
Operating Temperature: 0 to 60 degrees Celsius

Functional Features:
Power Plant Optimized: Pre-configured function blocks for boiler, turbine, and generator control reduce engineering time.
Fast Turbine Control: 50ms update rate for turbine speed and valve position control, critical for power generation.
Enhanced Boiler Diagnostics: Specialized diagnostics for burner management, drum level, and steam temperature.
64 Device Capacity: Manages all fieldbus devices in a power plant across two H1 segments.
Remote Calibration: Calibrate field transmitters from the control room without field visits.
Hot Swappable: Can be replaced during operation.

Application Scenarios:
Power Generation: Primary fieldbus interface for boiler control, turbine control, and generator monitoring in coal, gas, and nuclear power plants.
Combined Cycle Plants: Manages Fieldbus devices in HRSGs (Heat Recovery Steam Generators), gas turbines, and steam turbines.
Utility Boilers: Controls burner management, drum level, and superheat temperature via Fieldbus H1 devices.
Retrofit Power Plants: Upgrades older 4-20mA analog loops to Foundation Fieldbus H1 in existing power plants.
