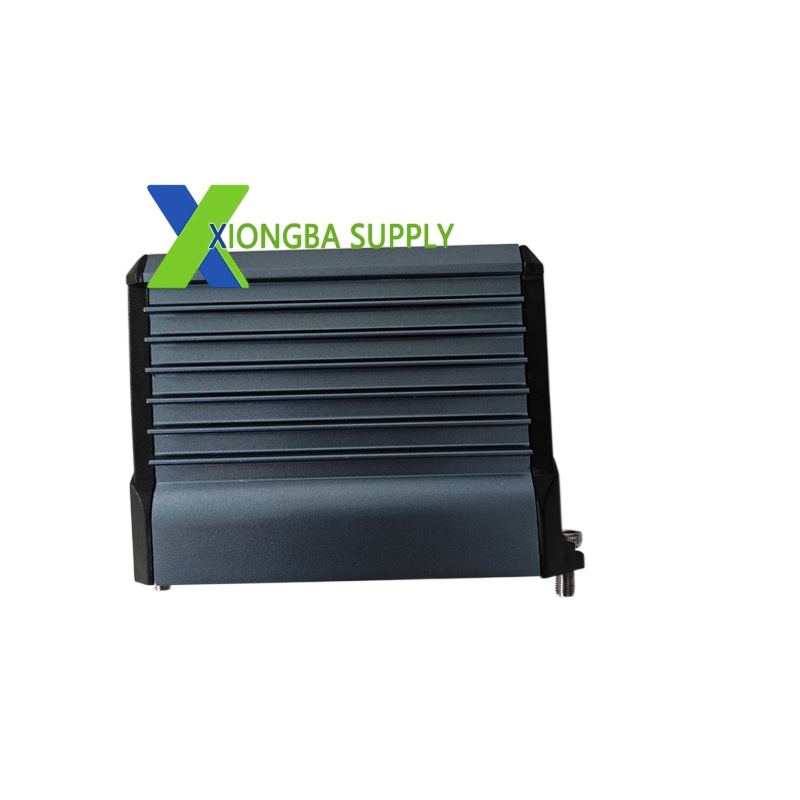

Foxboro FBM217 P0914TR - I/A Series Foundation Fieldbus H1 Dual-Channel Module with P0914TR Configuration

Foxboro FBM217 P0914TR – I/A Series Foundation Fieldbus H1 Dual-Channel Module with P0914TR Configuration

In stock

Product Introduction:
The Foxboro FBM217 P0914TR is a Foundation Fieldbus H1 dual-channel communication and control module for the I/A Series DCS. The FBM217 is functionally similar to the FBM207 but represents a different hardware generation with enhanced capabilities. The “P0914TR” suffix specifies the firmware configuration, which includes support for advanced function blocks, enhanced diagnostics, and specific device types. This module provides two independent H1 channels, each supporting up to 32 devices, for a total of 64 Fieldbus devices. It acts as the Link Active Scheduler (LAS) for both H1 segments and executes advanced control function blocks locally on the module.

Technical Specifications:
Board Type: Foundation Fieldbus H1 Dual-Channel Module
Firmware: P0914TR
Channels: 2 H1 channels (32 devices per channel, 64 total)
Communication: H1 Foundation Fieldbus (31.25 kbps)
Function Blocks: AI, AO, PID, CS, AR, CHAR (Characterizer), and custom blocks
Processor: 32-bit RISC with dedicated FF coprocessor
Memory: 16MB Flash, 8MB RAM
Isolation: 1500V RMS per channel
Power: 5V DC from backplane
Form Factor: 3U I/A Series Eurocard
Update Rate: 50ms to 1000ms per device
Operating Temperature: 0 to 60 degrees Celsius

Functional Features:
Dual H1 with Advanced Control: Executes complex function blocks like Characterizer and Control Selector locally, reducing CPU load on the main controller.
Enhanced Diagnostics: The P0914TR firmware provides per-device signal quality trends, communication error history, and predictive diagnostics.
64 Device Support: Manages up to 64 Fieldbus devices across two independent H1 segments.
Remote Device Management: Full remote configuration, calibration, and diagnostic capability for all connected devices.
Hot Swappable: Can be replaced while the system is running.
Redundant H1: Supports redundant H1 segments for safety-critical applications.
