Product Introduction:

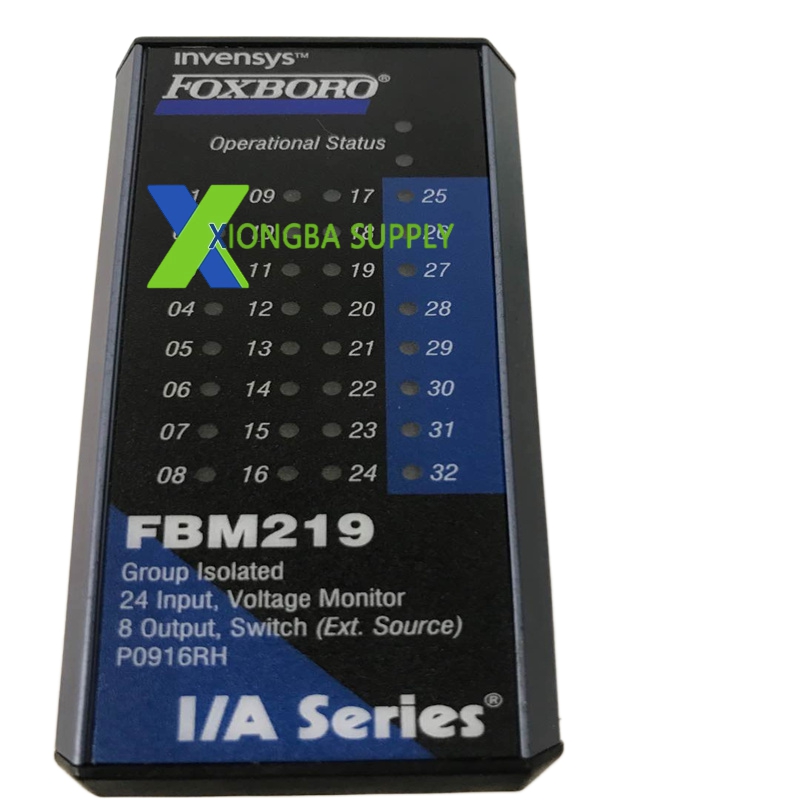

The Foxboro FBM219 is a high-speed digital input module designed for the Foxboro I/A Series distributed control system (DCS). The “FBM” stands for Fieldbus Module, “219” identifies the specific module type as a high-speed digital input. This module accepts discrete (on/off) signals from field devices such as proximity sensors, photoelectric sensors, limit switches, and pushbuttons at very high scan rates. The FBM219 is engineered for applications where millisecond-level response times are critical, such as high-speed sequencing, encoder counting, and fast interlock logic. It connects directly to the I/A Series backplane and communicates with the controller via the high-speed I/A bus.

Technical Specifications:
Board Type: High-Speed Digital Input Module
System: Foxboro I/A Series (Series 1, Series 2, Series 3)
Channels: 32 channels of high-speed digital input
Input Voltage: 24V DC, 48V DC, 120V AC, 240V AC (configurable per channel group)
Input Type: Sink (NPN) or Source (PNP) selectable per channel
Scan Rate: 1 millisecond per channel (1000 Hz update rate)
Isolation: 500V RMS opto-isolated per channel
Filter Time: Adjustable from 0.5ms to 100ms per channel
Contact Rating: Compatible with dry contacts, wet contacts, and solid-state outputs
Voting: Supports 1-out-of-2 or 2-out-of-3
LED Indicators: Per-channel green LEDs show input status in real-time
Power: 5V DC from I/A Series backplane
Form Factor: 3U Eurocard
Operating Temperature: 0 to 60 degrees Celsius
Certifications: UL, CSA, CE, ATEX (hazardous area versions available)

Functional Features:
Millisecond Scan Rate: The 1ms scan rate captures fast events that standard digital input modules (which scan at 10-50ms) would completely miss.
Per-Channel Configuration: Every input can be independently set for sink/source, voltage level, and filter time, providing maximum flexibility.
