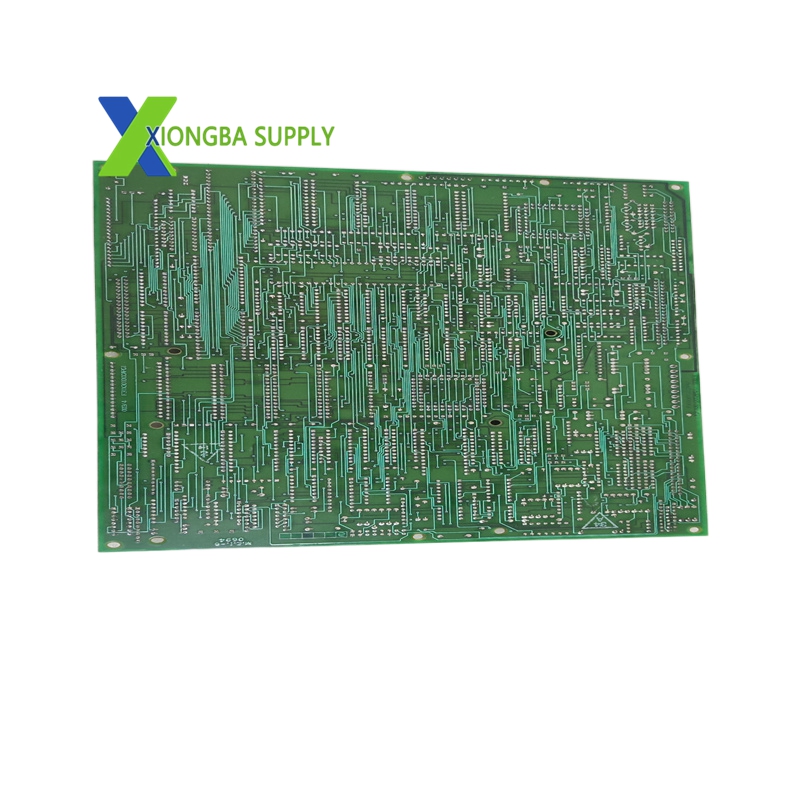

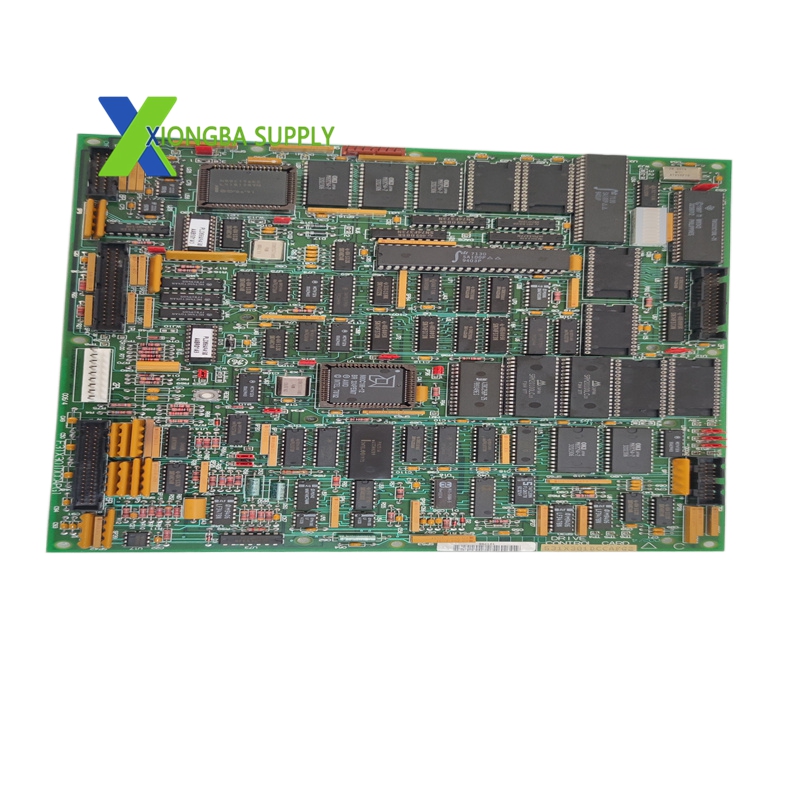

GE 531X301DCCAFG2 – Main Drive Control Board

Technical Specifications

• Manufacturer: General Electric (GE)
• Model: 531X301DCCAFG2
• Series: GE Mark V Turbine Control System
• Processor: Intel 80186 industrial CPU
• Memory: EEPROM (for firmware storage), onboard RAM for real-time data processing
• Power Supply: 125 VDC (primary); compatible with 120/240 VAC auxiliary power sources
• Power Input Protection: Requires external 30A 2-pole thermal magnetic circuit breakers for AC/DC inputs
• Event Logging Resolution: 62 ms (for alarm and turbine event timestamping)
• Form Factor: Standard Mark V system-compatible PCB board
• Operating Temperature: 0°C to +60°C (32°F to 140°F)
• Storage Temperature: -40°C to +70°C (-40°F to 158°F)
• Relative Humidity: 5%–95% (non-condensing)
• Certifications: CE, UL, CSA (industrial safety and EMC compliance)

Key Features

1. Centralized Real-Time Control
   • Powered by an Intel 80186 CPU to execute high-speed drive and turbine control algorithms, including speed regulation, load control, and protection logic.
   • Manages closed-loop control for motors, turbines, and associated industrial drives, ensuring precise operational accuracy.
2. Integrated Firmware & Reset Function
   • Equipped with EEPROM for storing user-defined control firmware, enabling customizable drive and turbine control sequences.
   • Features a dedicated push-button reset switch to restart the processor post-firmware updates, simplifying on-site configuration.
3. High-Precision Event Logging
   • Logs alarms, faults, and turbine operational events (e.g., generator breaker actuation, gear engagement) with 62 ms timestamp resolution for accurate system diagnostics.
   • Allows users to define and modify event triggers dynamically to align with specific process requirements.
4. Robust Power Management & Protection
   • Supports redundant power inputs (dual AC + dual DC) to eliminate single-point power failures.
   • Utilizes a 125 VDC panel distribution bus for core power supply, with external circuit breakers safeguarding against overloads and short circuits.
5. Industrial-Grade Reliability
   • Ruggedized PCB design with high-quality electronic components, resistant to electromagnetic interference (EMI), vibration, and extreme temperatures.
   • Optimized for long-term continuous operation in mission-critical industrial environments, minimizing unplanned downtime.

Application Scenarios

• Power Generation (Core Application)
  • Gas Turbine Control: Central control for startup, speed governing, generator synchronization, and overspeed protection in combined-cycle power plants.
  • Steam Turbine Control: Executes load regulation, pressure monitoring, and thermal stress management in thermal power stations.
  • Hydro Turbine Control: Manages speed, water level, and flow control for hydroelectric turbine systems.
• Industrial Drive Systems
  • Motor Drive Control: Controls AC/DC industrial motors in heavy-duty applications (e.g., mills, conveyors, compressors).
  • Process Automation: Integrates with GE Mark V DCS for coordinated control of refining, petrochemical, and pharmaceutical manufacturing processes.
• Critical Infrastructure
  • Oil & Gas: Powers turbine-driven compressors and pumps in refineries, pipelines, and LNG facilities.
  • Heavy Industry: Supports steel mills, paper mills, and mining operations requiring high-reliability drive and turbine control。
