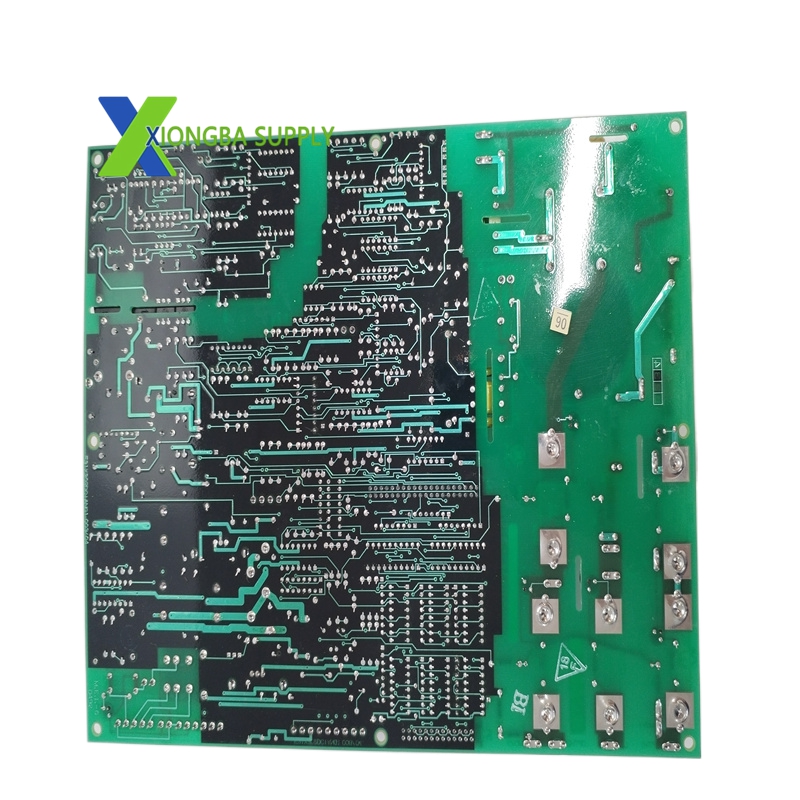

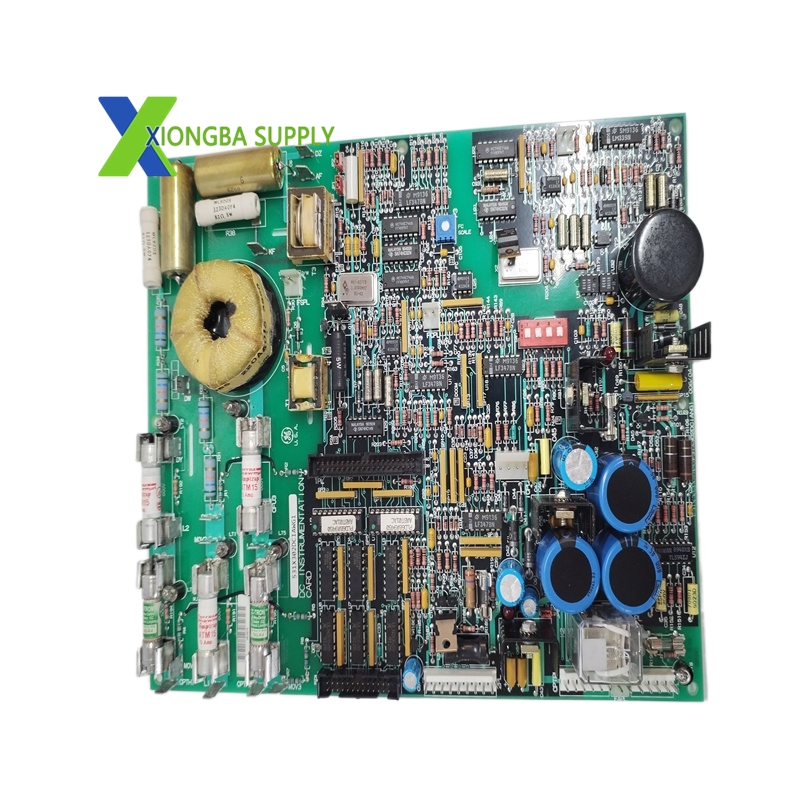

GE 531X302DCIAWG1 – DC Instrumentation Board (DCIA)

Technical Specifications

• Manufacturer: General Electric (GE)
• Model: 531X302DCIAWG1
• Series: 531X Boards Series
• Type: DC Instrumentation Board (DCIA)
• Compatibility: GE DC drive systems (DC-300), GE PLC & DCS systems
• Power Supply: 24 VDC (primary); supports +5 VDC, ±15 VDC, ±24 VDC auxiliary outputs
• Input Range: 0–10 V DC (analog); digital I/O compatible with 24 VDC logic
• Accuracy: ±0.1% (full-scale analog measurement)
• I/O Configuration: 8 digital inputs, 8 digital outputs, 2 analog inputs, 2 analog outputs
• Dimensions (L×W×H): 132 mm × 105 mm × 52 mm
• Weight: 0.3 kg (approx.)
• Operating Temperature: -20°C to +85°C (-4°F to 185°F)
• Storage Temperature: -40°C to +70°C (-40°F to 158°F)
• Relative Humidity: 5%–95% (non-condensing)
• Protection Rating: IP20 (board-level)
• Mounting: 35 mm DIN rail or chassis mount

Key Features

1. Precise DC Signal Processing
   • High-accuracy analog input (±0.1%) for 0–10 V DC signals, enabling precise monitoring of DC motors, sensors, and power converters.
   • Integrated signal conditioning for noise filtering and signal amplification, ensuring data integrity in electrically noisy environments.
2. Multi-Voltage Power Supply Integration
   • Provides stable auxiliary voltages (+5 VDC, ±15 VDC, ±24 VDC) for on-board and external circuitry, reducing external power supply dependencies.
   • Over-voltage, under-voltage, and short-circuit protection safeguards the board and connected devices.
3. Versatile Digital & Analog I/O
   • 8-channel digital input/output for discrete control (e.g., motor start/stop, valve interlocks).
   • 2-channel analog input/output for continuous process control (e.g., speed reference, current monitoring).
4. Robust Industrial-Grade Design
   • Compact, durable PCB with conformal coating for resistance to dust, moisture, and chemical exposure.
   • Wide operating temperature range (-20°C to +85°C) supports deployment in extreme plant conditions.
5. Seamless System Integration
   • Direct compatibility with GE DC drive systems (DC-300) and GE PLC/DCS platforms for drop-in integration.
   • Standardized connectors and DIN rail mounting simplify installation, replacement, and maintenance.
6. Comprehensive Fault Diagnostics
   • On-board LED indicators for power, I/O status, and fault conditions (e.g., over-current, communication errors).
   • Supports system-level diagnostics for predictive maintenance and rapid troubleshooting.

Application Scenarios

• Industrial Drive Systems (Core Application)
  • DC Motor Drives: Controls and monitors DC motors in conveyors, cranes, mills, and machine tools, providing speed regulation and current protection.
  • Power Conversion: Interfaces with rectifiers, inverters, and DC power supplies in industrial power systems for signal monitoring and control.
• Process Industries
  • Oil & Gas: Used in pumping stations, compressor drives, and gas processing plants for DC equipment control and analog signal monitoring.
  • Metals & Mining: Controls DC drives in rolling mills, mining hoists, and material handling systems for reliable heavy-duty operation.
  • Chemical & Petrochemical: Monitors and regulates DC-powered pumps, agitators, and valves in chemical processing lines.
• Power Generation
  • Auxiliary Systems: Controls DC loads (e.g., battery chargers, emergency motors) in thermal, hydro, and combined-cycle power plants.
  • Turbo Machinery: Provides signal conditioning and I/O interfacing for auxiliary DC systems in turbine control panels.
• General Industrial Automation
  • Factory Automation: Integrates with GE PLCs for centralized control of DC-driven machinery and production lines.
  • Distributed Control Systems (DCS): Serves as a remote I/O and instrumentation interface in GE DCS deployments for plant-wide process monitoring.
