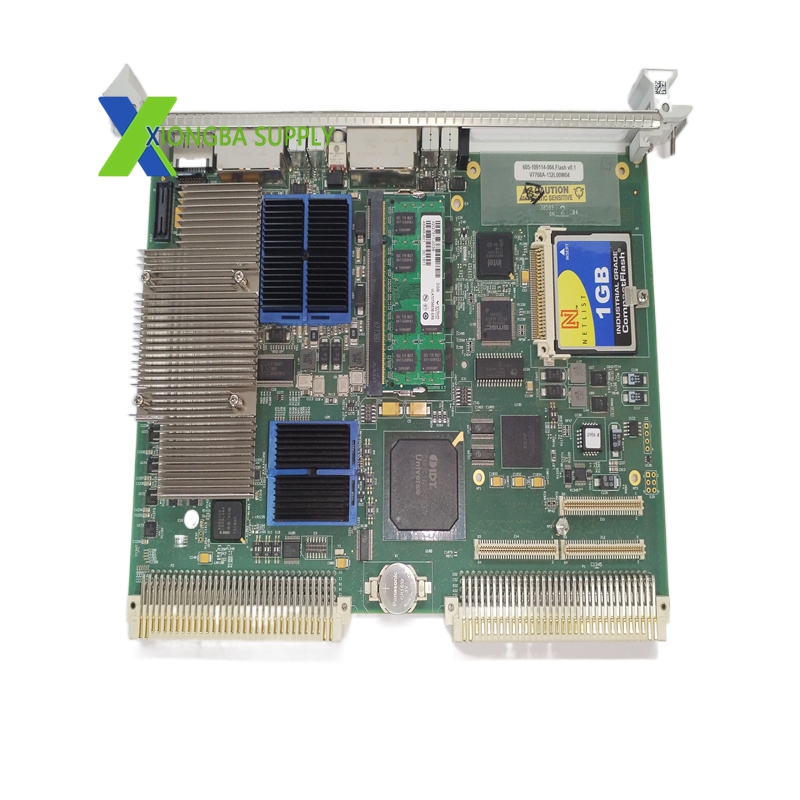

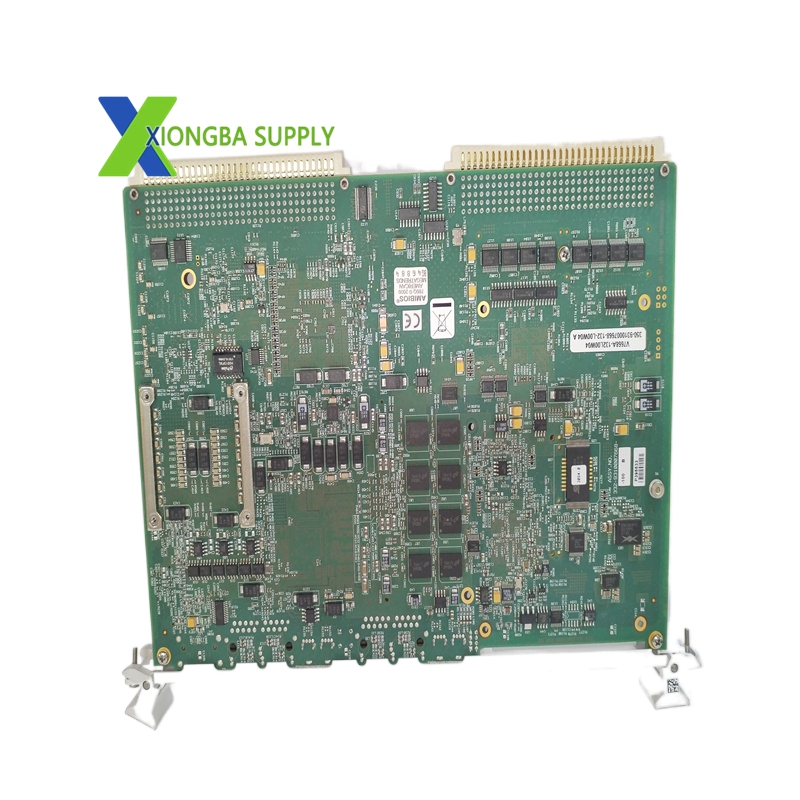

GE 605-109114-004 – 4-Port Gigabit Ethernet Communication Card (PCB Indexer Interface Board)

Technical Specifications

• Manufacturer: LAM Research
• Model Number: 605-109114-004
• Alternative Designation: GE V7668A-132L00W04
• Product Type: 4-Port Gigabit Ethernet Card / PCB Indexer Interface Board
• Form Factor: Standard industrial PCB board
• Communication Ports: 4 × Gigabit Ethernet (10/100/1000 Mbps)
• Interface Type: PCB Indexer Interface
• Power Supply: 24 VDC (industrial standard)
• Dimensions (L×W×H): 163 mm × 38 mm × 58 mm
• Weight: 0.4 kg
• Operating Temperature: 0°C to +60°C
• Storage Temperature: -40°C to +70°C
• Relative Humidity: 5%–95% (non-condensing)
• Material: High-grade industrial PCB with ruggedized components
• Country of Origin: United States

Key Features

1. High-Speed 4-Port Gigabit Connectivity
   • Equipped with four independent Gigabit Ethernet ports supporting 10/100/1000 Mbps auto-negotiation for simultaneous, high-volume data transmission.
   • Ensures ultra-fast and stable communication between the system controller, indexer, and other peripheral modules.
2. Precision PCB Indexer Interface
   • Dedicated interface for precise motion control of PCB indexers, enabling accurate positioning, alignment, and movement of PCBs during semiconductor manufacturing processes.
   • Supports high-resolution indexing commands with minimal latency for enhanced process accuracy.
3. Robust Industrial & Semiconductor-Grade Design
   • Built with high-quality, ruggedized electronic components to withstand the harsh conditions of semiconductor fabs, including dust, moisture, and electromagnetic interference.
   • Compact and durable form factor for easy integration into standard industrial control cabinets and equipment enclosures.
4. Reliable Data Processing & System Integration
   • Functions as a central communication hub, efficiently routing data between the main system, indexer, and other networked devices.
   • Optimized for seamless integration with LAM Research’s V7668A series systems and semiconductor processing equipment.
5. Comprehensive Environmental Compatibility
   • Wide operating temperature range and non-condensing humidity tolerance ensure reliable performance in diverse industrial environments.
   • Designed for long-term, continuous operation in 24/7 manufacturing settings.

Application Scenarios

• Semiconductor Manufacturing (Primary Application)
  • PCB Indexing & Handling: Controls and communicates with PCB indexers for precise positioning and movement of PCBs in semiconductor assembly and test equipment.
  • Wafer Fabrication: Used in LAM Research’s systems for processes such as etching, deposition, and lithography, facilitating high-speed data exchange between process controllers and I/O modules.
  • Equipment Automation: Integrates into automated semiconductor manufacturing lines to manage communication between various pieces of process equipment.
• Industrial Automation & Control
  • High-Speed Data Acquisition: Deployed in industrial systems requiring multiple Gigabit Ethernet connections for real-time data collection and monitoring.
  • Distributed Control Systems (DCS): Serves as a communication interface in DCS for connecting remote I/O modules, sensors, and actuators.
• Electronics Manufacturing
  • SMT Assembly Lines: Used in surface-mount technology (SMT) equipment for communication between controllers, feeders, and inspection systems.
  • Precision Motion Control: Applied in systems requiring accurate indexing and motion control, such as CNC machines and automated assembly robots.
