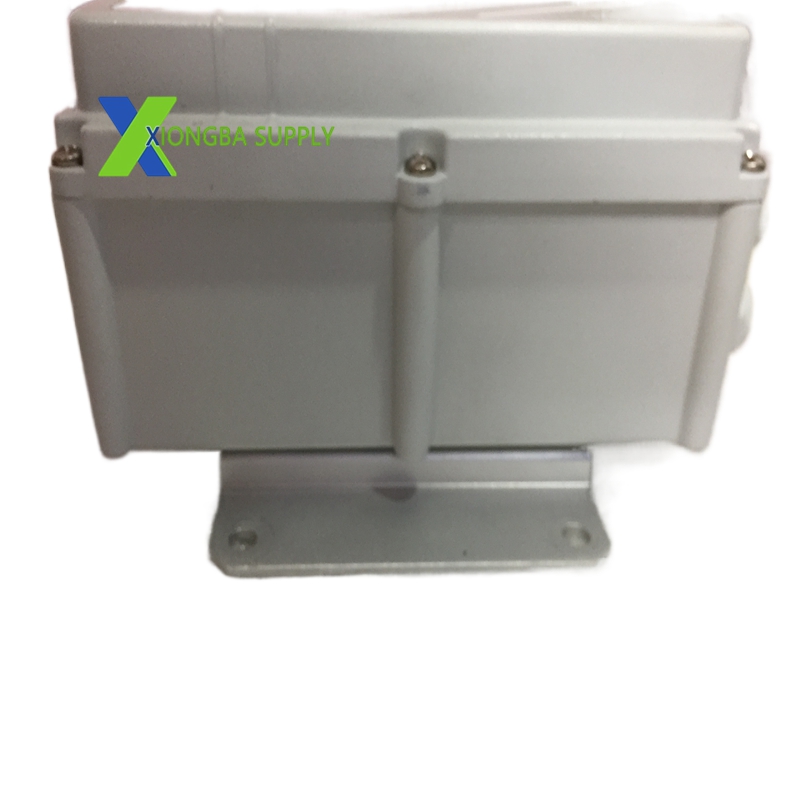

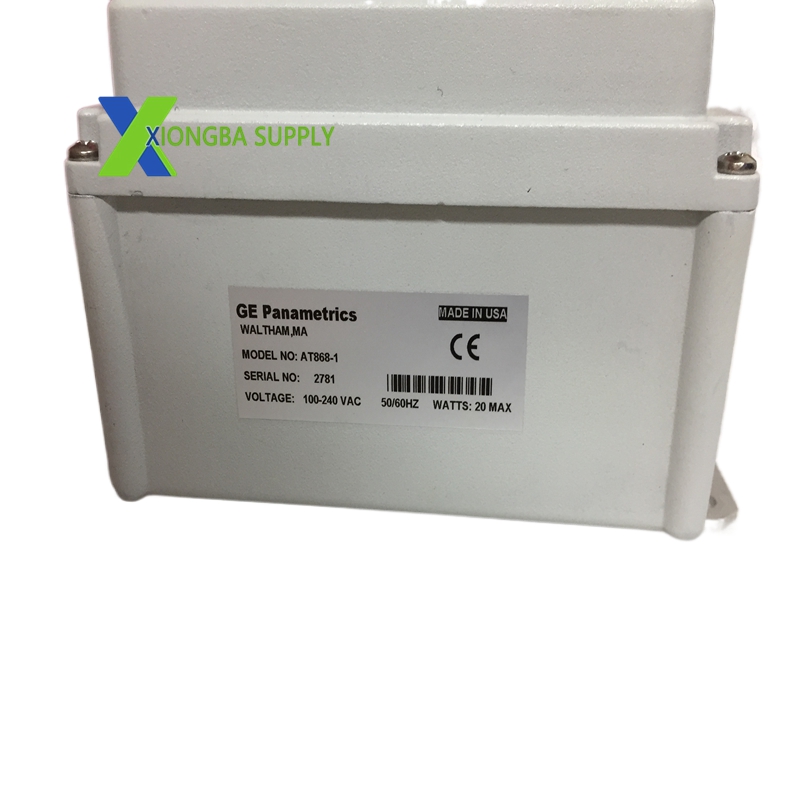

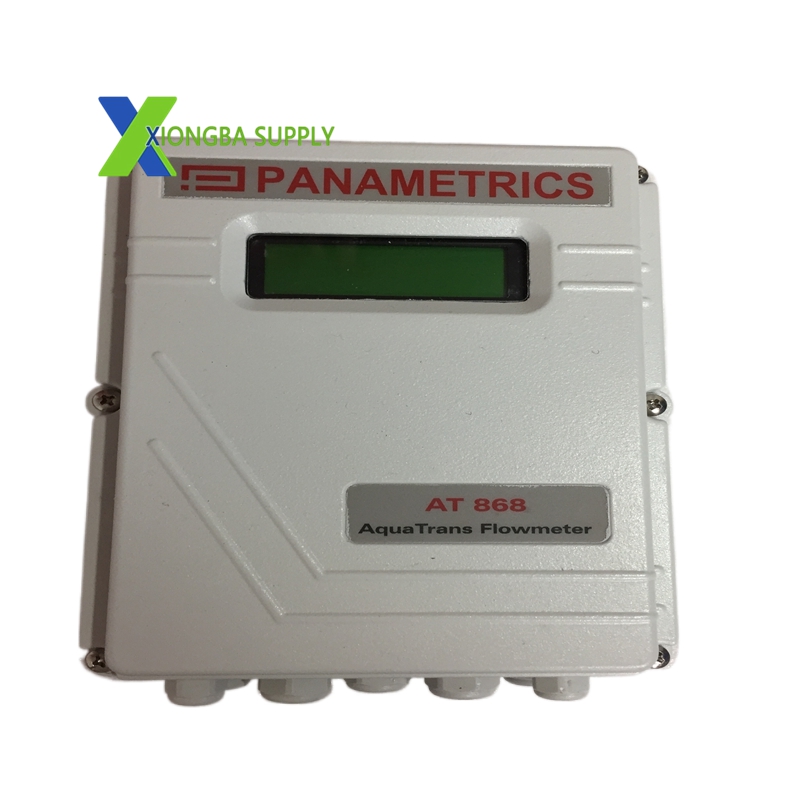

GE BJZCAT868-1 Industrial Control System Board

Technical Specifications

• Manufacturer: General Electric (GE)
• Model Number: BJZCAT868-1
• Product Type: Industrial control board / DCS / PLC module
• Application: Data acquisition, signal processing, system control
• Compatibility: GE automation systems, DCS, PLC
• Operating Temperature: -20°C to +60°C
• Storage Temperature: -40°C to +85°C
• Humidity: 5%–95% (non-condensing)
• Input Voltage: 24V DC (±10%)
• Protection Class: IP20
• Dimensions: Standard industrial board size
• Weight: Approximately 0.8kg
• Certifications: CE, RoHS
• Warranty: 12 months

Key Features

1. High-Reliability Circuit Design
   • Constructed with high-quality electronic components to ensure long-term stable operation under harsh industrial conditions.
   • Features anti-interference design to resist electromagnetic interference (EMI) and radio-frequency interference (RFI).
   • Rigorous quality testing and aging processes guarantee consistent performance.
2. Powerful Data Processing Capability
   • Equipped with a high-performance processor for rapid data processing and real-time control.
   • Supports multiple signal input types, including analog and digital signals.
   • Integrated multi-channel data acquisition circuitry for accurate signal collection.
3. Robust Industrial-Grade Durability
   • Tolerates wide temperature and humidity ranges, suitable for demanding industrial environments.
   • Reinforced PCB design to withstand vibration and shock.
   • Long service life with minimal maintenance requirements.
4. Seamless System Integration
   • Natively compatible with GE DCS and PLC systems for straightforward integration.
   • Supports standard industrial communication protocols for data exchange with other devices.
   • Designed for easy installation and replacement, minimizing system downtime.

Application Scenarios

• Power Generation: Used in thermal power, hydroelectric power, and renewable energy plants for control and monitoring of auxiliary equipment.
• Oil & Gas: Applied in refineries, offshore platforms, and pipeline systems for process control and safety monitoring.
• Chemical & Petrochemical: Utilized in chemical plants for monitoring and control of reactors, storage tanks, and production lines.
• Metallurgy & Mining: Deployed in steel mills and mining operations for control of crushers, conveyors, and processing equipment.
• Water & Wastewater: Applied in water treatment plants for monitoring and control of pumping stations and treatment processes.
• General Manufacturing: Used in automotive, food and beverage, and pharmaceutical industries for automation control and production line monitoring.
