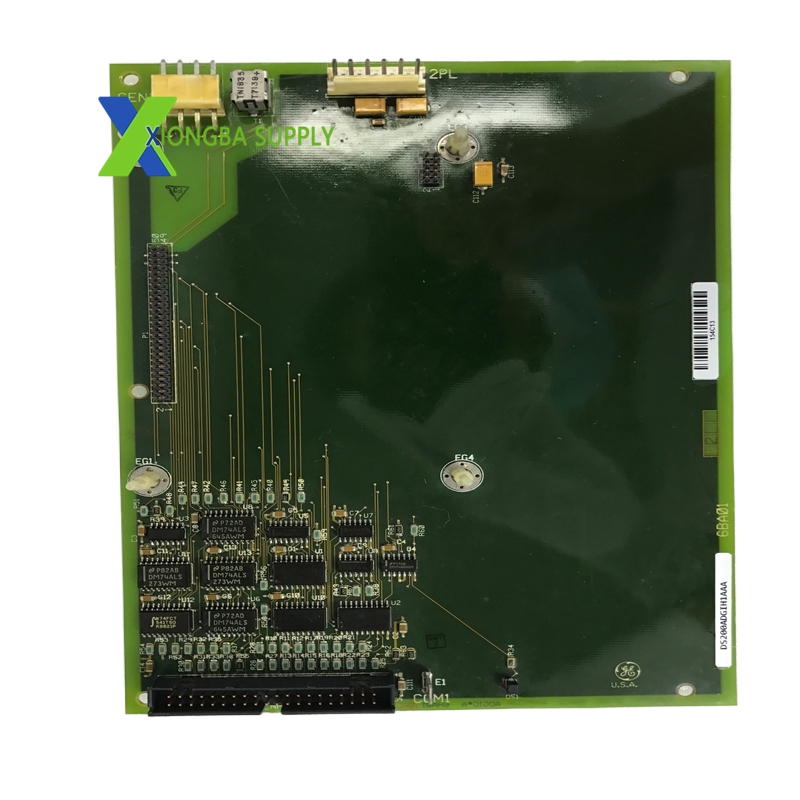

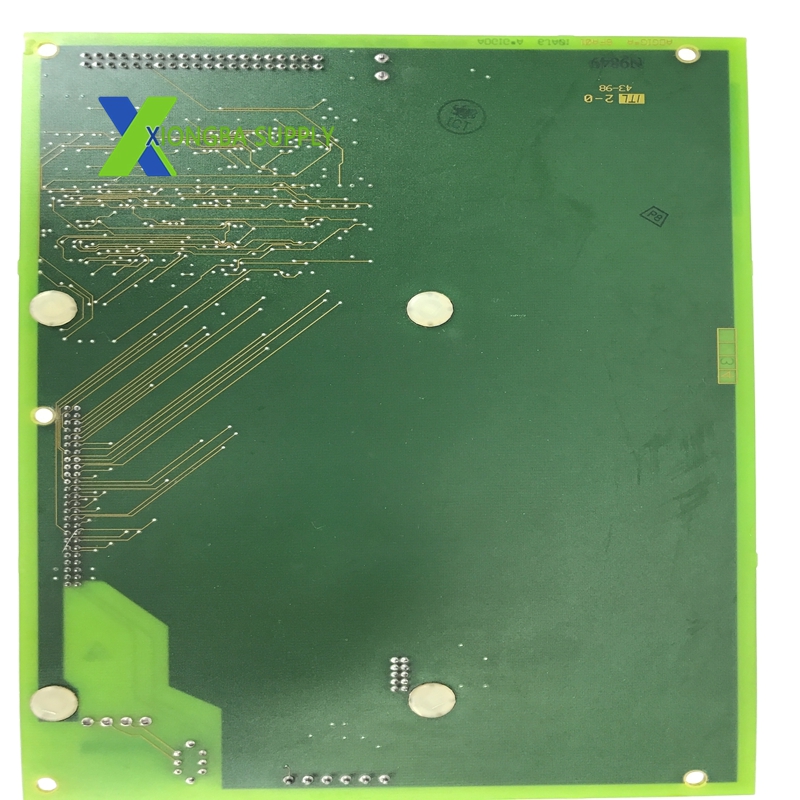

GE DS200ADGIH1AAA Auxiliary Interface Board

Technical Specifications

• Manufacturer: General Electric (GE)
• Model: DS200ADGIH1AAA
• Series: Mark V Speedtronic
• Type: Auxiliary Interface Board
• Dimensions: 8 inches (203.2 mm) (width) × 6 inches (152.4 mm) (length) × 1 inch (25.4 mm) (depth)
• Weight: Approximately 0.5 kg
• Connectors:
  • 1 × 40-pin header connector (for main I/O signal routing)
  • 1 × 6-pin auxiliary connector (for power or secondary communication)
• Configuration Elements: 60 × configurable jumpers (for signal routing, voltage selection, and mode setup)
• Test Points: Multiple dedicated test points for circuit debugging and signal verification
• Power Requirements: 5 V DC (±5%), 500 mA (typical)
• Operating Temperature: -40°C to +70°C
• Storage Temperature: -40°C to +85°C
• Relative Humidity: 5% to 95% (non-condensing)
• Protection Rating: IP20 (dust-protected, no water ingress protection)
• Component Grade: Industrial-grade, vibration-resistant, and EMI-shielded components
• MTBF (Mean Time Between Failures): ≥ 80,000 hours

Key Features

1. Robust Connectivity & Signal Flexibility
   • Equipped with a 40-pin main connector and a 6-pin auxiliary connector to support multi-channel signal input/output, ensuring stable transmission of digital and analog signals.
   • 60 configurable jumpers enable precise customization of signal routing, voltage levels, and operational modes, adapting to diverse field device requirements.
2. High Reliability for Harsh Environments
   • Constructed with industrial-grade components and reinforced PCB layout, providing excellent resistance to vibration, shock, and electromagnetic interference (EMI).
   • Wide operating temperature range (-40°C to +70°C) and IP20 protection rating ensure consistent performance in extreme industrial conditions.
3. Seamless System Compatibility
   • Fully compatible with GE Mark V Speedtronic turbine control systems, enabling direct integration with main controllers, I/O modules, and other system components.
   • Supports standard industrial communication protocols, facilitating interoperability with third-party devices and SCADA systems.
4. Simplified Installation & Maintenance
   • Compact and standardized design (8″ × 6″) allows for easy mounting in drive cabinets or control panels using four screw holes, optimizing space utilization.
   • Multiple dedicated test points and clearly labeled jumpers simplify on-site debugging, calibration, and troubleshooting, reducing maintenance time and costs.
5. Enhanced System Expandability
   • Acts as an I/O expansion interface, extending the control system’s capability to connect additional sensors, actuators, and peripheral devices without modifying the main controller.
   • Supports signal conditioning functions, converting raw field signals into standardized inputs for the main control unit, improving measurement accuracy and control precision.

Application Scenarios

• Power Generation (Primary Application)
  • Gas & Steam Turbine Control: Integral to GE Mark V turbine control systems for monitoring and controlling turbine speed, temperature, pressure, and load in power plants.
  • Generator Excitation Control: Connects excitation system sensors and switches to the main controller, ensuring stable generator output.
  • Substation Automation: Used in power distribution control systems for signal isolation, conditioning, and I/O expansion.
• Oil & Gas Industry
  • Pipeline Monitoring: Interfaces with pressure, flow, and temperature sensors for real-time data acquisition and transmission to control systems.
  • Refinery Process Control: Supports control of pumps, valves, and reactors by connecting field actuators and monitoring devices.
• Industrial Automation
  • Factory Floor Control: Connects PLCs, HMIs, and field devices (sensors, motors, relays) in manufacturing lines for signal conversion and transmission.
  • Process Control Systems: Used in chemical, pharmaceutical, and water treatment industries for monitoring and controlling analog/digital signals.
• Marine & Offshore
  • Offshore Platform Automation: Withstands harsh marine environments (high humidity, salt spray) to control and monitor platform equipment.
  • Ship Power Management: Integrates with shipboard turbine and generator control systems for stable power supply.
