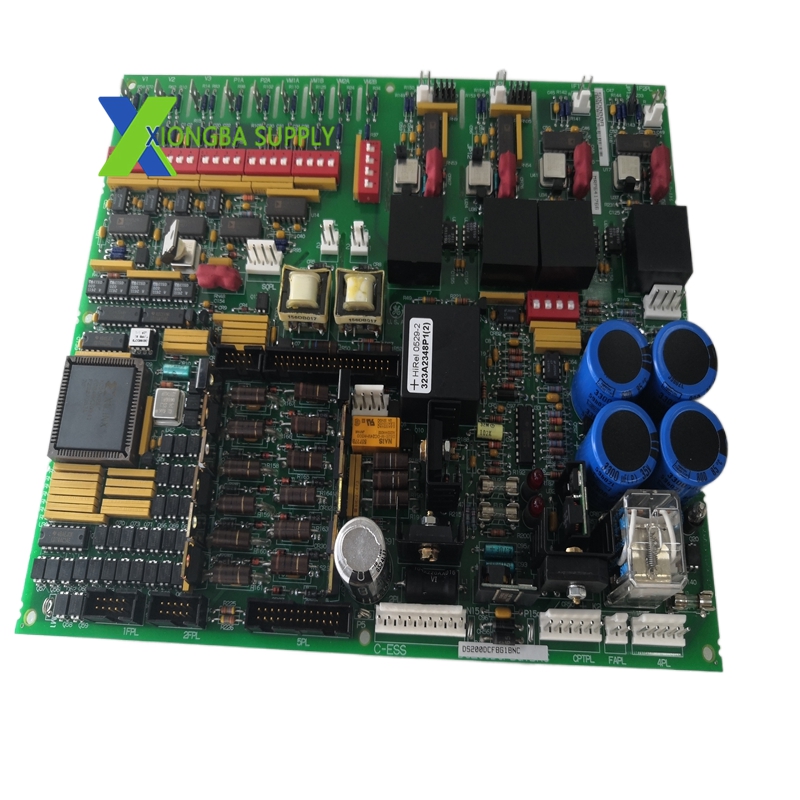

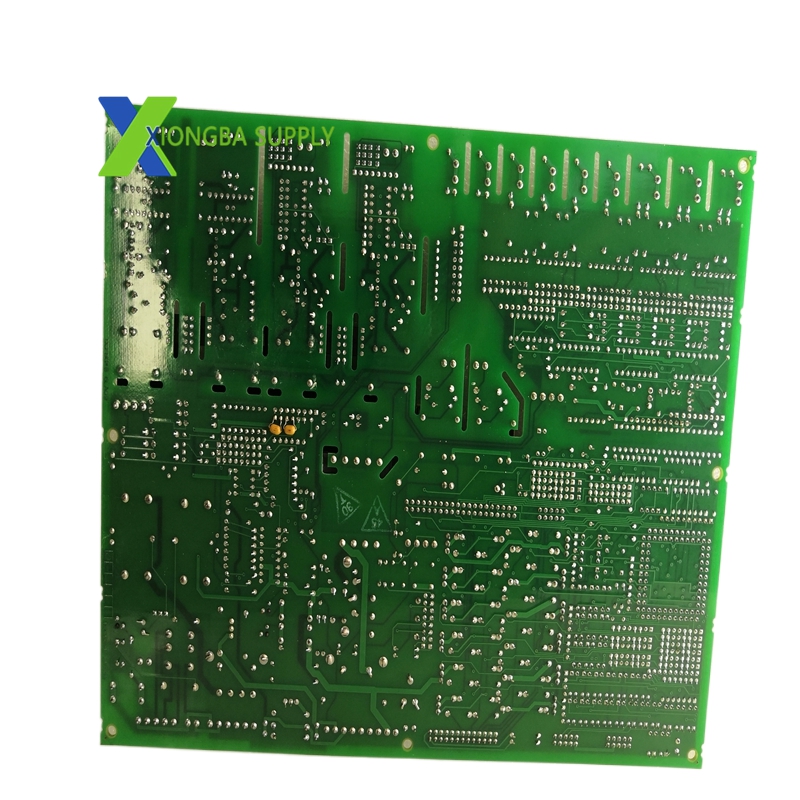

GE DS200DCFBG1BNC DC Feedback and Power Supply Board

Technical Specifications

• Manufacturer: General Electric (GE)
• Model: DS200DCFBG1BNC
• Series: Mark V Speedtronic, DS200 Platform
• Function: DC Feedback & Control Power Supply Board
• Input Voltage: 38–115 VAC, 50/60 Hz; or 38 VDC
• Output Voltage: 24 VDC (regulated control power)
• Output Current: Up to 10 A (continuous)
• Feedback Signal Interfaces:
  • 1 × BNC (75 Ω impedance, main DC feedback)
  • 2 × terminal‑type auxiliary feedback inputs
• Feedback Signal Types: DC voltage (0–5 V, 0–10 V), DC current (4–20 mA), tachogenerator (TG), resolver, Hall sensor signals
• Signal Acquisition Accuracy:
  • Voltage: ≤ ±0.1% Full Scale (FS)
  • Current: ≤ ±0.2% FS
• Max Pulse Frequency: 10 kHz (speed feedback)
• Operating Temperature: -40°C to +70°C
• Storage Temperature: -40°C to +80°C
• Relative Humidity: 5%–95% (non‑condensing)
• Dimensions: 124 mm × 185 mm × 45 mm (4.88” × 7.28” × 1.77”)
• Weight: Approximately 0.64 kg (1.4 lbs)
• Protection Rating: IP20
• Configuration: 12 jumpers, 7 DIP switches
• Monitoring: 5 test points, LED/neon status indicators
• MTBF: ≥ 80,000 hours

Key Features

1. Dual Function: Power Supply + Precision Feedback
   • Delivers regulated 24 VDC / 10 A control power for system logic, I/O modules, and panel cooling fans.
   • Conditions and processes high‑accuracy DC feedback signals (voltage, current, speed) from field sensors to the main controller.
2. BNC High‑Frequency Feedback Interface
   • Equipped with one 75 Ω BNC connector for clean, noise‑resistant transmission of high‑speed feedback signals (e.g., tachogenerator pulses).
   • Supports up to 10 kHz pulse input for precise speed and position monitoring.
3. Comprehensive Protection & Monitoring
   • Integrated over‑voltage, over‑current, and overload protection safeguards the board and connected drives from electrical faults.
   • Onboard fuses, LED/neon indicators, and five dedicated test points enable real‑time status monitoring and fast troubleshooting.
4. High Noise Immunity & Rugged Design
   • Multi‑layer PCB with EMC shielding suppresses EMI and RFI in high‑interference industrial environments.
   • Industrial‑grade components operate reliably from -40°C to +70°C and withstand vibration and shock.
5. Flexible Configuration & System Compatibility
   • 12 jumpers and 7 DIP switches allow precise configuration of input ranges, feedback scaling, and operating modes.
   • Fully compatible with GE Mark V drives (FC2000, AC2000, DC2000, ME2000, CB2000) and turbine control systems.
6. Simplified Installation & Maintenance
   • Standard 124 × 185 mm form factor fits directly into GE control cabinets with secure mounting points.
   • Clearly labeled jumpers, test points, and status LEDs reduce setup and diagnostic time.

Application Scenarios

• Power Generation (Primary)
  • Gas & Steam Turbine Control: Provides control power and feedback conditioning for Mark V Speedtronic turbine control systems in power plants.
  • Generator Excitation Systems: Monitors and regulates DC excitation currents for stable generator output.
• Oil & Gas
  • Compressor & Pump Drives: Controls and monitors large DC drives for pipeline compressors and process pumps.
  • Refinery Process Units: Supplies regulated power and precise feedback for reactor and furnace control systems.
• Metallurgy & Mining
  • DC Motor Drives: Controls rolling mills, conveyors, and hoists with accurate speed and current feedback.
  • Mineral Processing: Provides stable control power and signal conditioning for crushing and grinding equipment.
• Industrial Automation
  • Process Control Systems: Powers PLCs, HMIs, and I/O modules while conditioning analog feedback signals.
  • Legacy System Upgrades: Replaces older DC feedback boards in existing Mark V installations to extend service life。
• Marine & Offshore
  • Platform Turbine & Generator Control: Operates reliably in high‑humidity, salt‑spray environments.
  • Ship Power Management: Provides DC feedback and control power for shipboard turbine and generator systems。
