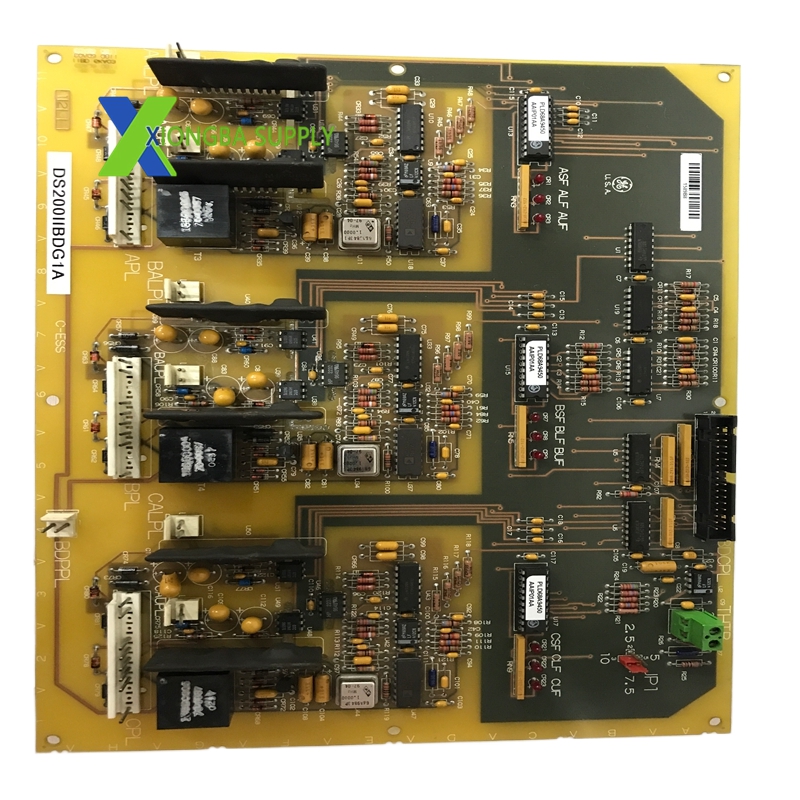

GE DS200IIBDG1A IGBT Gate Driver Board

Technical Specifications

• Manufacturer: General Electric (GE)
• Model: DS200IIBDG1A
• Series: Mark V DS200
• Product Type: IGBT Gate Driver Board (IIBD)
• Rated Voltage: 600 V
• Rated Current: 200 A
• Switching Frequency: Up to 20 kHz
• Power Supply: 24 V DC (±5% tolerance), 8.5 W maximum consumption
• Memory: 16 MB SDRAM, 32 MB Flash
• Operating Temperature: -40°C to +85°C
• Storage Temperature: -55°C to +125°C
• Relative Humidity: 5% to 95% (non-condensing)
• Protection Rating: IP20
• Dimensions: 147 mm × 51.5 mm × 114 mm (5.8″ × 2.0″ × 4.5″)
• Weight: 0.6 kg (1.32 lbs)
• LED Indicators: 9 red LEDs for power, drive, and fault status
• Connectors: Dedicated BDCPL and signal headers for I/O and power
• Isolation: Optical isolation for all gate drive and feedback circuits
• MTBF: ≥ 80,000 hours

Key Features

1. Six-Channel Optically Isolated Gate Drives
   • Provides six independent, optically isolated IGBT gate drive circuits, one upper and one lower per output phase, ensuring clean and noise-immune switching signals.
   • Delivers precise gate voltage and current control to optimize IGBT turn-on and turn-off, reducing switching losses and improving efficiency.
2. Integrated Sensing & Feedback
   • Includes isolated current feedback, motor-end voltage sensing, and fault feedback circuits for each phase, enabling real-time monitoring of power conversion parameters.
   • Internal power supply with isolated transformers generates gate drive voltages and supports current-feedback voltage-controlled oscillator (VCO) functions.
3. Comprehensive IGBT Protection
   • Detects and reports under-voltage and desaturation faults via dedicated fault lines (/FLTA, /FLTB, /FLTC) on the BDCPL connector.
   • Fast fault response shuts down drive signals to prevent IGBT damage during overload, short-circuit, or abnormal operating conditions.
4. Status Monitoring & Diagnostics
   • Nine red LEDs provide clear visual indication of power status, drive activity, and fault conditions for quick on-site troubleshooting.
   • Configurable jumpers allow field adjustment of drive parameters and operational modes to match specific application requirements.
5. Robust & Compact Design
   • Industrial-grade components and reinforced PCB layout deliver high resistance to vibration, shock, and electromagnetic interference (EMI).
   • Wide operating temperature range supports deployment in extreme environments, from cold outdoor installations to high-temperature industrial floors.
   • Standardized compact form factor enables easy integration into existing Mark V drive cabinets and control panels.

Application Scenarios

• Power Generation (Primary)
  • Gas & Steam Turbine Drives: Controls IGBT power modules in Mark V turbine control systems for generator excitation and auxiliary drive control.
  • Variable-Speed Drives: Used in plant auxiliary systems (fans, pumps, compressors) for efficient motor speed control and energy savings.
• Oil & Gas Industry
  • Pipeline Compressor Drives: Drives high-power motors for natural gas compression with precise speed and torque control.
  • Refinery Process Drives: Controls motors for pumps, blowers, and mixers in harsh, hazardous industrial environments.
• Heavy Industrial Automation
  • Metal Rolling Mills: Provides high-power, high-reliability drive control for rolling mill motors in steel and aluminum processing.
  • Mining Conveyors & Crushers: Drives large induction motors with robust fault protection and reliable start/stop control.
• Marine & Offshore
  • Offshore Platform Power Systems: Withstands high humidity and salt spray to control platform generators and auxiliary drives.
  • Ship Propulsion & Thruster Drives: Delivers precise motor control for electric propulsion systems in commercial and naval vessels.
