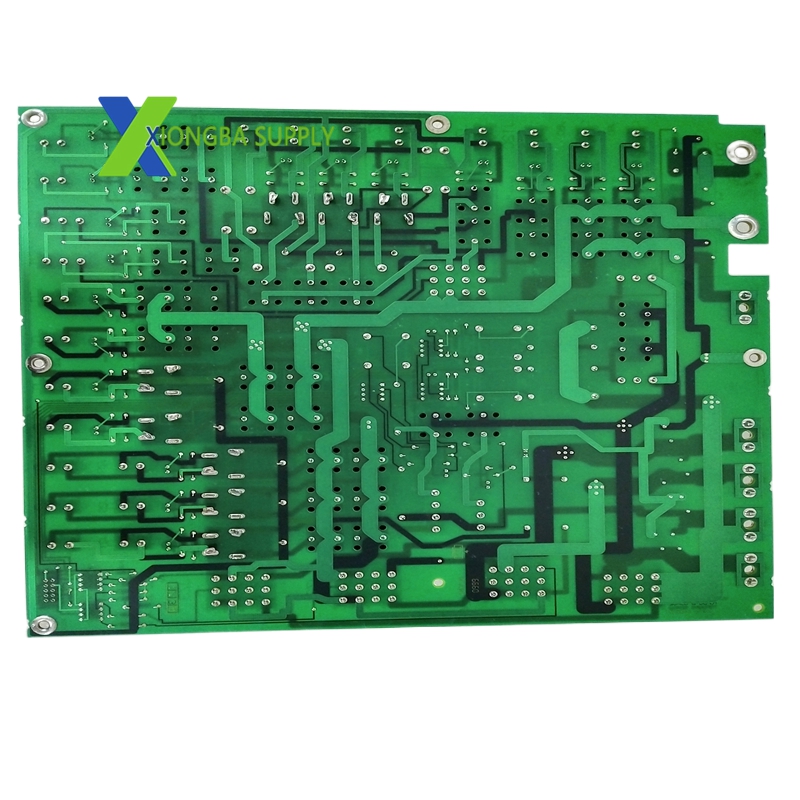

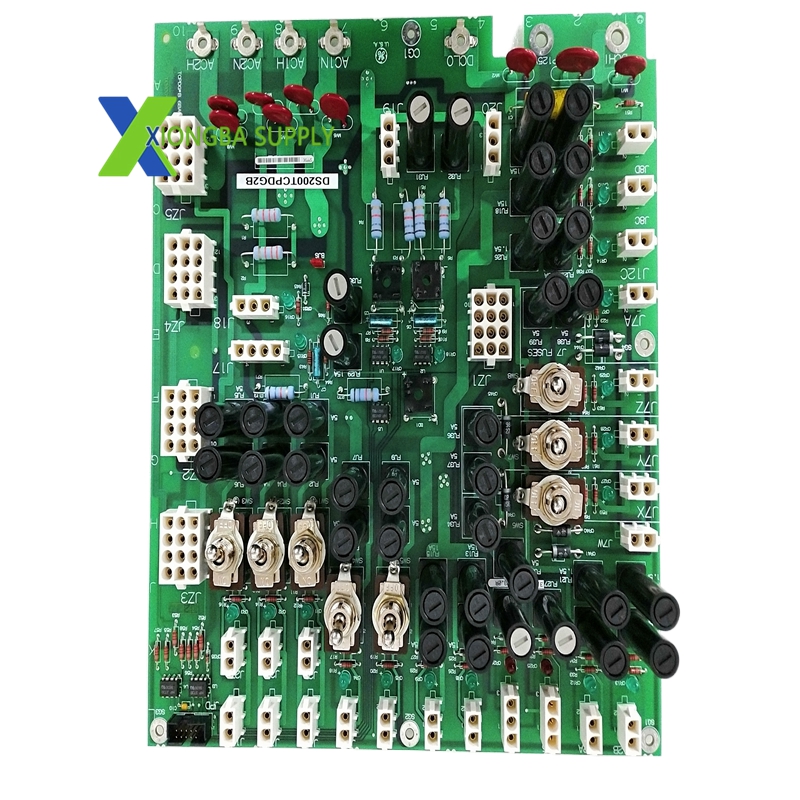

GE DS200TCPDG2B Power Distribution Board

Technical Specifications

• Manufacturer: General Electric (GE)
• Model: DS200TCPDG2B
• Series: Mark V Speedtronic
• Function: Power Distribution & Protection Module
• Dimensions (W×H×D): 110 × 60 × 67 mm (11 × 6 × 6.7 cm)
• Weight: 0.14 kg
• Input Power: 18–36 V DC, 12 W
• Channel Capacity: Up to 20 A per channel
• Configuration:
  • 8 × toggle switches for circuit enable/disable
  • 36 × fuses for individual circuit protection
  • 4 × signal wire terminals
• Indicators: 36 × OK LEDs for individual circuit status monitoring
• Connectors: 1 × 10-pin connector for system interfacing
• Operating Temperature: -40°C to +70°C
• Storage Temperature: -40°C to +85°C
• Relative Humidity: 5% to 95% (non-condensing)
• Protection Rating: IP20
• Component Grade: Industrial-grade, vibration-resistant, EMI-shielded
• MTBF (Mean Time Between Failures): ≥ 150,000 hours

Key Features

1. Integrated Power Distribution & Protection
   • Distributes main DC power to multiple system components.
   • 36 individual fuses provide precise overcurrent and short-circuit protection, safeguarding expensive control modules and field devices.
2. Clear Status Monitoring & Diagnostics
   • 36 dedicated OK LEDs offer immediate, visual status indication for each circuit, enabling rapid troubleshooting and reducing diagnostic time.
   • 8 toggle switches allow operators to manually enable or disable specific circuits for maintenance or isolation.
3. Rugged & Reliable for Harsh Environments
   • Built with industrial-grade components and a reinforced PCB layout to withstand high vibration, shock, and electromagnetic interference (EMI).
   • Wide operating temperature range of -40°C to +70°C ensures stable performance in extreme industrial conditions.
4. Compact & Standardized Design
   • Space-efficient 11 × 6 × 6.7 cm footprint minimizes cabinet space usage.
   • Designed for direct integration with GE Mark V Speedtronic systems, ensuring plug-and-play functionality.
5. Enhanced System Safety & Maintenance
   • Fuse-protected circuits prevent cascading failures in the event of a short circuit.
   • LED status lights reduce maintenance time by quickly identifying faulty circuits.
   • Toggle switches allow for safe, isolated maintenance of individual components without shutting down the entire system.

Application Scenarios

• Power Generation (Primary Application)
  • Gas & Steam Turbine Control Systems: Distributes power to critical control modules, I/O boards, and protection relays in thermal power plants.
  • Hydroelectric Power Plants: Provides regulated power to turbine governors and excitation control systems.
• Oil & Gas Industry
  • Compressor & Pump Stations: Powers control valves, sensors, and local controllers in refineries and pipeline operations.
  • Offshore Platforms: Withstands corrosive marine environments to distribute power to platform control systems.
• Heavy Industrial Automation
  • Steel & Metal Processing: Supplies power to motor control centers, PLCs, and monitoring systems in rolling mills and processing plants.
  • Mining Industry: Operates reliably in dusty, high-vibration environments to power conveyor controls and processing equipment.
• Marine & Offshore
  • Ship Power Management: Distributes power to propulsion control systems, navigation equipment, and auxiliary systems on large vessels.
  • Offshore Wind Farms: Provides regulated power to turbine control modules and grid interface systems.
