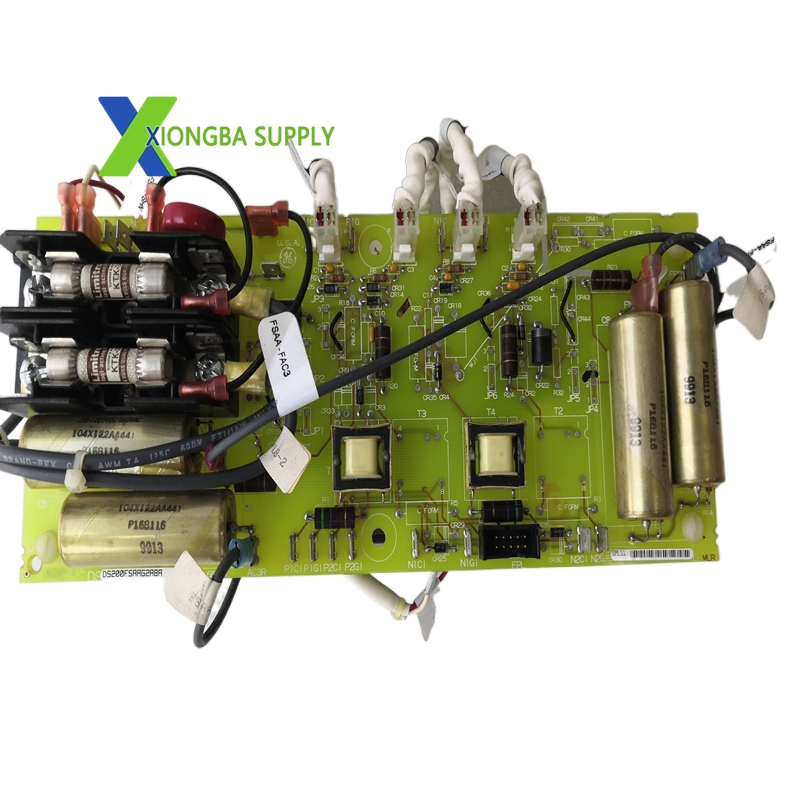

GE DS2020FECNRX010A Field Exciter Module

Technical Specifications

• Manufacturer: General Electric (GE)
• Model: DS2020FECNRX010A
• Series: Mark V Speedtronic
• Function: Field Exciter Control & Regulation
• Dimensions (W×H×D): 280 × 102 × 120 mm
• Weight: Approximately 2.22 kg
• Control Power: +5 V DC, 6 A
• Main Supply Voltage: 28 V DC
• Relay Channels: 12 (for excitation switching and control)
• PCB Coating: RX010 protective conformal coating (enhances durability)
• Operating Temperature: -40°C to +70°C
• Storage Temperature: -40°C to +85°C
• Relative Humidity: 5% to 95% (non-condensing)
• Protection Rating: IP20
• Component Grade: Industrial-grade, vibration-resistant, EMI-shielded
• MTBF (Mean Time Between Failures): ≥ 100,000 hours

Key Features

1. Precise Field Excitation Control
   • Generates and regulates stable DC excitation signals for generator rotors and large motor fields, ensuring consistent output voltage and speed regulation.
   • Supports adjustable excitation current and voltage to adapt to varying load conditions, optimizing energy efficiency and system stability.
2. 12-Channel Relay Switching Capability
   • Equipped with 12 independent relay channels for flexible control of excitation circuits, including switching, protection, and interlock functions.
   • Relays provide reliable electrical isolation and high-current switching capacity, suitable for heavy-duty industrial applications.
3. Enhanced Environmental Durability
   • Features RX010 conformal coating on the PCB to protect against dust, moisture, corrosion, and chemical contaminants, extending service life in harsh environments.
   • Industrial-grade components and ruggedized PCB layout offer excellent resistance to vibration, shock, and electromagnetic interference (EMI).
4. Seamless Mark V System Compatibility
   • Designed for direct integration with GE Mark V Speedtronic turbine and drive control systems, ensuring plug-and-play functionality with main controllers, I/O modules, and power supplies.
   • Communicates with the system via standard industrial protocols for real-time monitoring and control of excitation parameters.
5. Integrated Protection & Monitoring
   • Built-in overvoltage, overcurrent, and short-circuit protection safeguards the module and connected equipment from electrical faults.
   • LED status indicators provide visual feedback on power, excitation status, and fault conditions, enabling quick diagnostics and maintenance.

Application Scenarios

• Power Generation (Primary Application)
  • Gas & Steam Turbine Generators: Controls field excitation for synchronous generators in thermal power plants, ensuring stable grid connection and load regulation.
  • Hydroelectric Power Plants: Regulates excitation for hydro generators to maintain constant voltage and frequency under varying water flow conditions.
  • Backup Power Systems: Used in emergency generator sets for reliable excitation control during grid outages.
• Oil & Gas Industry
  • Large Motor Drives: Provides excitation for high-voltage induction and synchronous motors driving compressors, pumps, and fans in refineries and pipeline operations.
  • Offshore Platforms: Withstands harsh marine environments to control generators and motors on oil and gas production platforms.
• Heavy Industrial Drives
  • Steel & Metal Processing: Controls excitation for large motors in rolling mills, crushers, and conveyors, ensuring precise speed and torque control.
  • Mining Industry: Used in large mining equipment motors and generators for reliable operation in dusty, high-vibration environments.
• Marine & Offshore
  • Ship Power Management: Regulates excitation for shipboard generators to ensure stable power supply for propulsion, navigation, and auxiliary systems.
  • Offshore Wind Farms: Controls excitation for wind turbine generators to optimize power output and grid compatibility.
