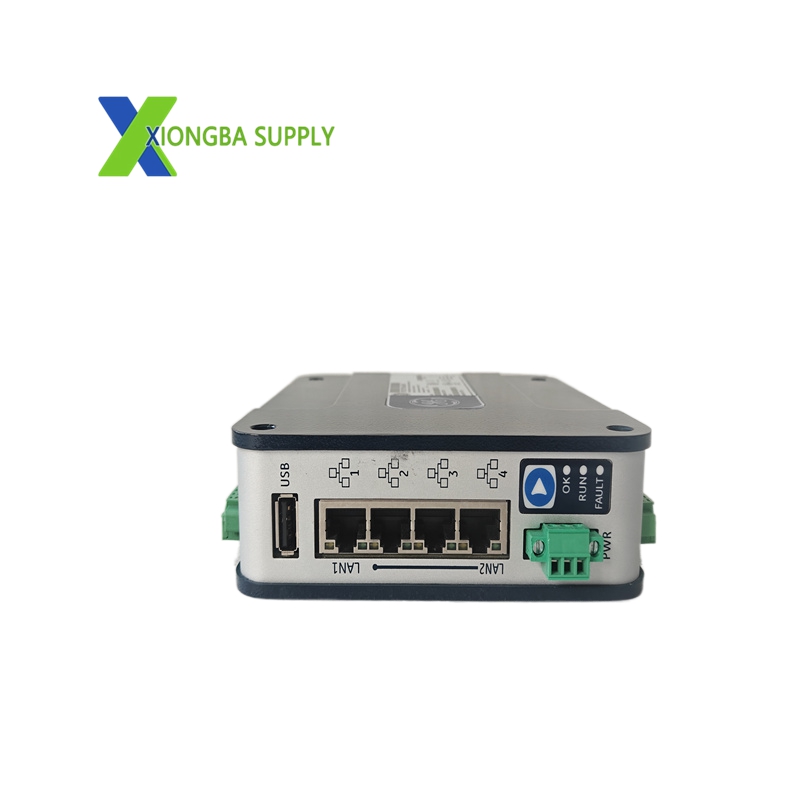

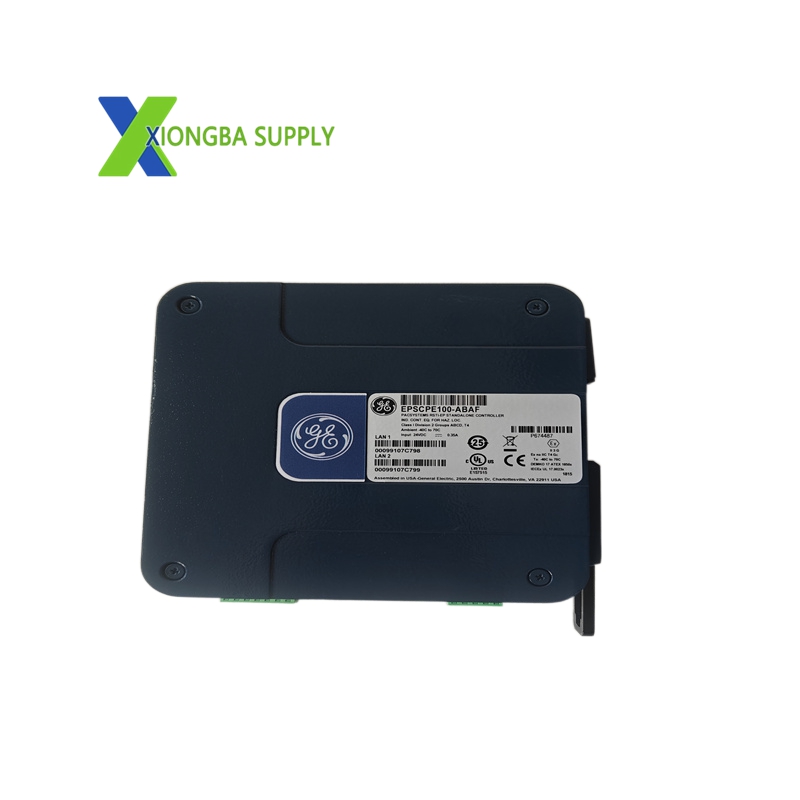

GE EPSCPE100-ABAC – CPE100 Independent PLC Controller (PACSystems Series)

Technical Specifications

• Manufacturer: Emerson (PACSystems)
• Model: EPSCPE100-ABAC
• Processor: 32-bit dual-core industrial CPU (1 GHz)
• Memory: 128 MB SDRAM, 64 MB Flash, 8 MB battery-backed RAM
• I/O Capacity: 2048 discrete I/O points, 512 analog I/O points
• Communication Ports:
  • 1 × 10/100/1000 Mbps Ethernet (RJ45)
  • 1 × USB 2.0 (Host/Device)
  • 1 × RS-232/485 (serial)
• Supported Protocols: Modbus TCP/IP, Ethernet/IP, PROFINET, OPC-UA, EGD
• Power Supply: 24 VDC (±20%)
• Power Consumption: Max 15 W
• Dimensions (L×W×H): 150 mm × 120 mm × 50 mm
• Weight: 1.2 kg
• Operating Temperature: 0°C to +60°C
• Storage Temperature: -40°C to +70°C
• Relative Humidity: 5%–95% (non-condensing)
• Certifications: CE, UL, CSA, RoHS, ISA-84

Key Features

1. Powerful Processing Performance
   • 32-bit dual-core CPU (1 GHz) delivers high-speed processing for complex control algorithms and data-intensive applications.
   • Large memory capacity (128 MB SDRAM) supports extensive programming, data logging, and recipe storage.
2. Extensive I/O & Communication
   • Supports up to 2048 discrete and 512 analog I/O points for large-scale automation systems.
   • Multi-protocol communication ports (Ethernet, USB, serial) enable seamless integration with PLCs, SCADA, HMI, and cloud platforms.
3. Compact & Scalable Design
   • Compact form factor (150×120×50 mm) for easy installation in standard control cabinets.
   • Modular expansion slots allow for adding communication or I/O modules to adapt to evolving application needs.
4. Advanced Diagnostics & Maintenance
   • Comprehensive on-board diagnostics monitor system health, I/O status, and communication links in real time.
   • Supports remote diagnostics, firmware updates, and program upload/download via Ethernet for reduced maintenance downtime.
5. High Reliability & Redundancy
   • Industrial-grade components and rugged design withstand harsh environmental conditions.
   • Supports network redundancy (MRP) and controller redundancy for mission-critical applications requiring zero downtime.

Application Scenarios

• Manufacturing Automation
  • Automotive assembly lines, packaging machinery, and material handling systems.
  • Food and beverage, pharmaceutical, and consumer goods production lines.
• Process Industries
  • Oil and gas, chemical, petrochemical, and water treatment plants.
  • Pulp and paper, mining, and metal processing facilities.
• Power Generation
  • Gas/steam turbine control systems, power plant auxiliary equipment, and distributed control systems (DCS).
• Infrastructure & Smart Buildings
  • HVAC control, lighting systems, and building automation in commercial and industrial facilities.
