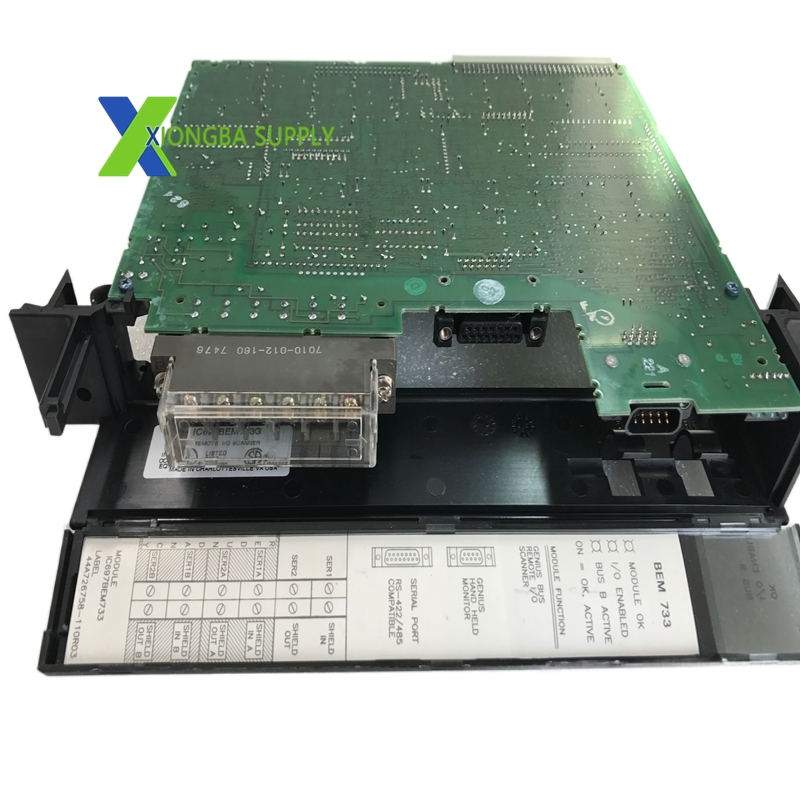

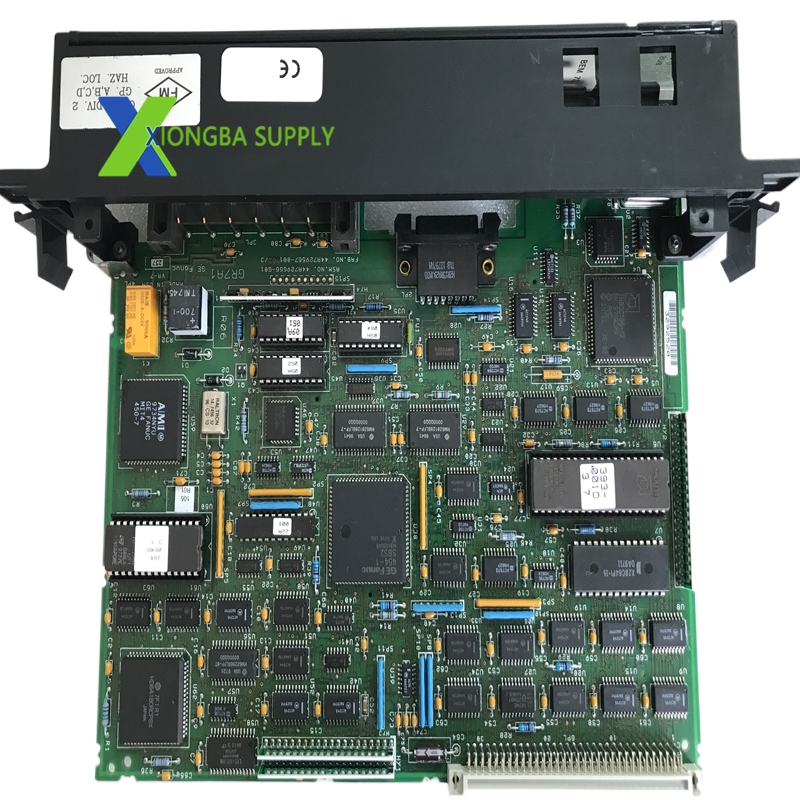

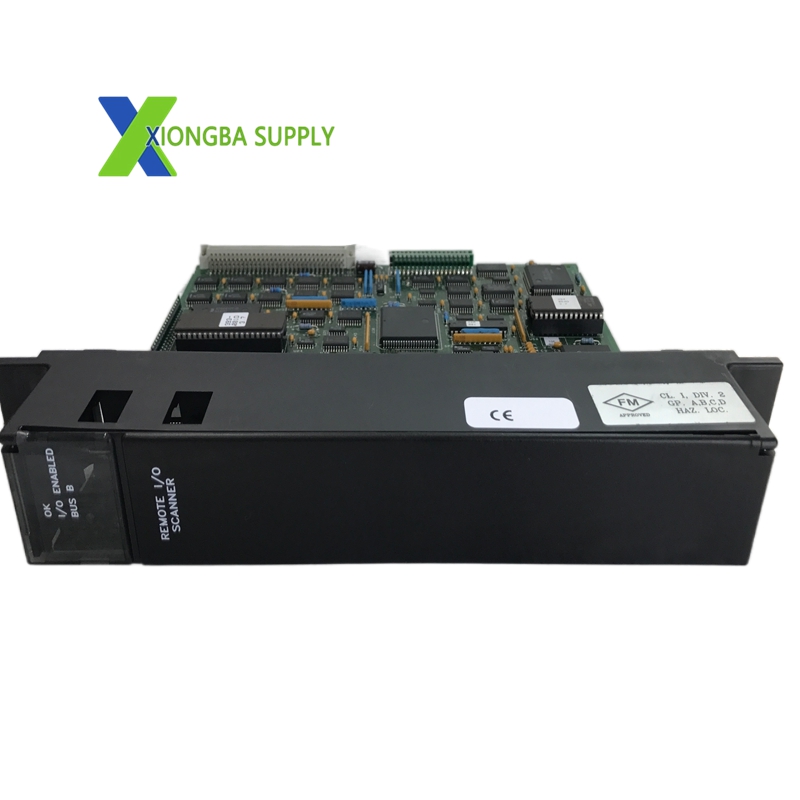

GE Fanuc (Emerson) IC697BEM733 Genius Remote I/O Scanner Module

Technical Specifications

• Manufacturer: General Electric (GE Fanuc / Emerson Automation)
• Model Number: IC697BEM733
• Product Line: Series 90-70 PLC
• Module Type: Remote I/O Scanner
• Communication Protocol: Genius I/O Bus (IC66*)
• Data Transfer Rate: 153.6 Kbps
• Max Remote Distance: 7,500 ft (2,275 m) from the controller
• I/O Capacity per Remote Drop:
  • Discrete: 1,024 inputs / 1,024 outputs
  • Analog: 64 inputs / 64 outputs
• Bytes per Drop: 128 input bytes / 128 output bytes
• Remote Drop Configuration: Up to 8 racks per drop; 9-slot or 5-slot IC697 racks supported
• Max Drops per Bus: 30 remote drops on a single IC66* bus
• Ports:
  • 1 × 15-pin RS-422/485 serial port
  • 1 × 9-pin IC66* Hand-held Monitor port
  • 1 × IC66* Bus terminal
• Physical Dimensions: 130 × 40 × 100 mm (4 × 21.7 × 29.1 cm)
• Weight: 0.46–0.48 kg (1.00–1.06 lbs)
• Operating Temperature: -40°C to 85°C
• Power Supply: DC-powered
• Country of Origin: USA

Key Features

1. Distributed I/O Connectivity: Extends PLC I/O capabilities to remote locations, reducing wiring costs and simplifying system design.
2. High-Speed Communication: Operates at 153.6 Kbps for fast, reliable data transmission between the controller and remote stations.
3. Long-Distance Support: Communicates up to 7,500 ft (2,275 m), ideal for large-scale industrial facilities.
4. Mixed Signal Compatibility: Handles both discrete (digital) and analog I/O modules, supporting diverse sensor and actuator types.
5. Scalable Architecture: Connects up to 30 remote drops per bus, with each drop accommodating up to 8 racks for flexible system expansion.
6. Industrial-Grade Reliability: Designed for harsh environments with a wide operating temperature range (-40°C to 85°C) and robust construction.
7. Diagnostic & Monitoring: Includes a Hand-held Monitor port for on-site troubleshooting and maintenance.
8. Seamless Integration: Interfaces with all IC697 discrete, analog, and expander modules, as well as third-party Genius bus-compatible devices.

Application Scenarios

1. Process Industries: Oil and gas, chemical, petrochemical, and pharmaceutical plants for remote monitoring of temperature, pressure, flow, and level sensors.
2. Manufacturing: Automotive assembly lines, electronics production, and food and beverage processing for distributed control of conveyors, robots, and packaging machinery.
3. Power & Energy: Power generation plants (thermal, hydro, nuclear) and renewable energy facilities (wind, solar) for remote I/O management in large-scale control systems.
4. Water & Wastewater Treatment: Municipal and industrial treatment plants for monitoring and controlling pumps, valves, and sensors across expansive sites.
5. Building Automation: Large commercial buildings, airports, and stadiums for HVAC, lighting, and security system control via distributed I/O networks.
6. Transportation: Railway and port facilities for controlling signaling, conveyor systems, and cargo handling equipment over long distances。
