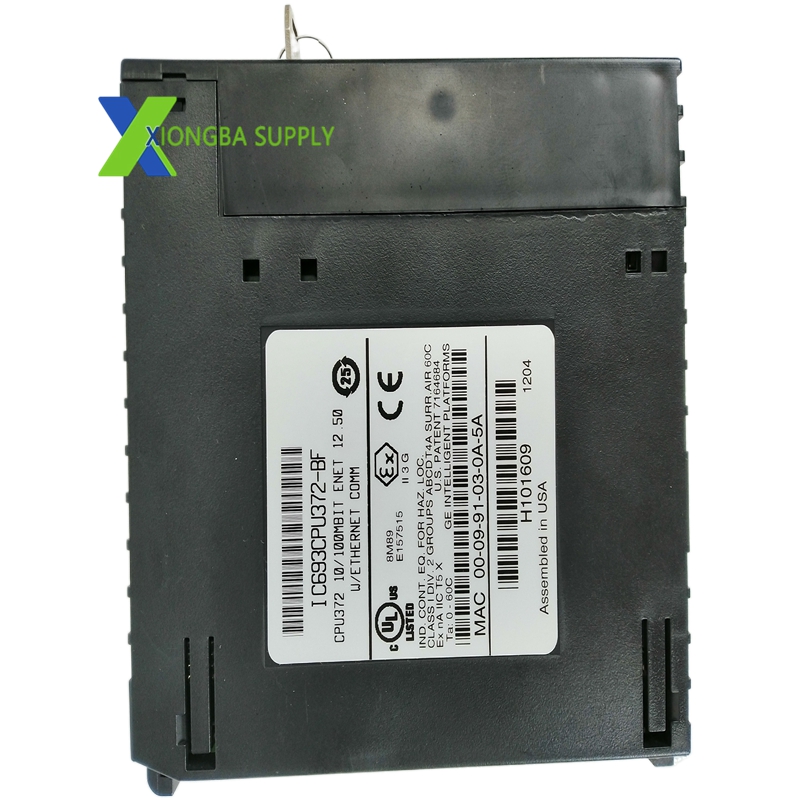

GE Fanuc IC693CPU372 | Series 90-30 PLC Processor Module

Technical Specifications

• Manufacturer: GE Fanuc (General Electric)
• Series: Series 90-30 Programmable Controller
• Processor: AMD SC520 (80386EX core), 32-bit RISC, 133 MHz clock speed
• User Memory: 240 KB battery-backed RAM (for user logic)
• Scan Speed: 0.15 ms per 1K boolean logic (rapid program execution)
• Discrete I/O Capacity: Max. 2048 inputs / 2048 outputs
• Analog I/O Capacity: Max. 32,640 input words / 32,640 output words (configurable)
• Timers/Counters: Over 2,000 (memory-dependent)
• Communication Ports:
  • 2 × 10/100 Mbps Ethernet (RJ45, supports Modbus TCP/IP, SRTP, EGD)
  • 1 × RS-232/485 (serial, supports Modbus RTU, Genius)
• Programming Software: Proficy Machine Edition (PLC Logic Developer, Machine Edition)
• Operating Temperature: -20°C to +60°C (-4°F to +140°F)
• Protection Rating: IP20 (enclosure)
• Power Consumption: 7.4 W at 5 VDC
• Dimensions: 170 × 150 × 40 mm (6.7 × 5.9 × 1.6 in)
• Weight: 300 g (0.66 lb)

Key Features

1. High-Performance Processing: 133 MHz 32-bit RISC processor delivers fast scan times and supports complex control algorithms, including floating-point math operations.
2. Dual Ethernet Connectivity: Two 10/100 Mbps Ethernet ports function as an internal switch, enabling daisy-chained network topologies (e.g., DLR) and supporting redundant communication paths for enhanced reliability.
3. Integrated Web Server: Built-in web server allows remote configuration, monitoring, and diagnostics via a standard web browser, reducing on-site maintenance needs.
4. Battery-Backed Memory: 240 KB RAM with battery backup preserves user programs and data during power outages; optional non-volatile flash memory for permanent storage.
5. Hot-Swappable Design: Single-slot, hot-swappable module enables replacement without shutting down the entire system, minimizing downtime.
6. Robust Environmental Tolerance: Wide operating temperature range (-20°C to +60°C) and IP20 rating ensure reliable operation in harsh industrial environments (e.g., dust, vibration, temperature fluctuations).
7. Extensive I/O Expansion: Supports up to 2048 discrete I/O points and 32,640 analog I/O words, with expansion for up to 7 local and 7 remote baseplates, accommodating large-scale control systems.
8. Multi-Protocol Communication: Supports Modbus TCP/IP, Modbus RTU, SRTP, EGD, and Genius protocols, enabling seamless integration with SCADA systems, HMIs, remote I/O, and third-party devices.

Application Scenarios

• Manufacturing Automation: Assembly lines, packaging machinery, material handling systems, and machine tool control (e.g., CNC machines).
• Process Control: Water and wastewater treatment plants, chemical processing, oil and gas refineries, and pharmaceutical manufacturing.
• Power Generation & Utilities: Power plant control (thermal, hydro, wind), grid monitoring, and substation automation.
• Building Automation: HVAC (heating, ventilation, air conditioning) control, lighting systems, and security monitoring for commercial/industrial buildings.
• Transportation: Conveyor systems, port/terminal automation, and railway signaling control.
• Food & Beverage: Batch processing, mixing, filling, and packaging lines requiring precise, repeatable control.

Compliance & Certification

• Complies with IEC 61131-3 international standard for PLC programming languages.
• Certified for industrial use (CE, UL, CSA) for global deployment.
