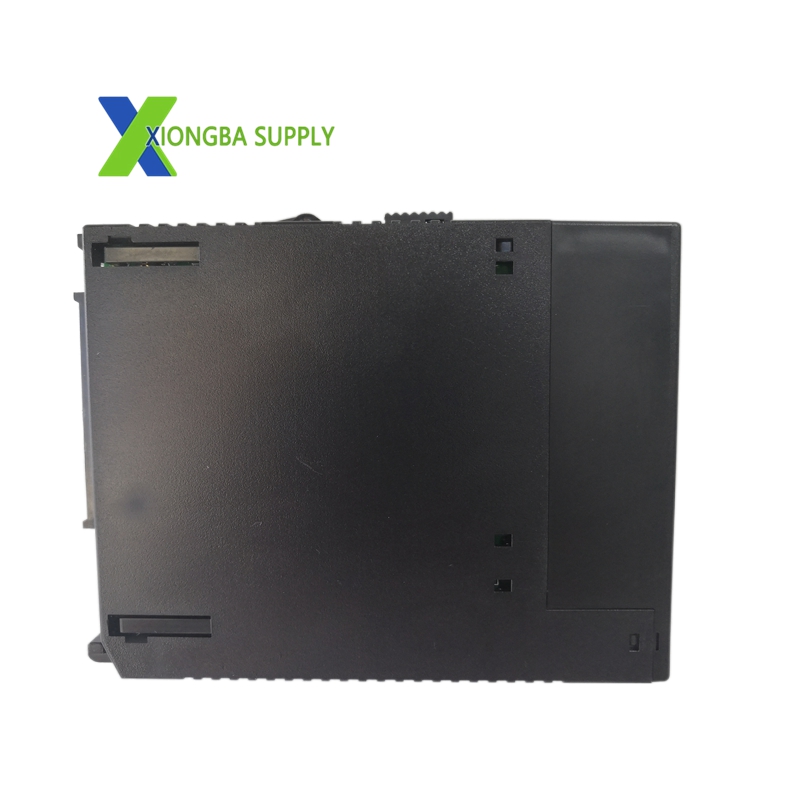

GE IC693CPU363-CH Series 90-30 CPU Module

Technical Specifications

• Manufacturer: GE Fanuc (Emerson Automation Solutions)
• Model: IC693CPU363-CH
• Series: GE Fanuc Series 90-30 PLC
• Processor: 32-bit Intel 80386EX microprocessor
• Clock Speed: 25 MHz
• User Memory: 240 KB (RAM/Flash)
• Register Memory: Up to 32,640 words (Control software) / 16,384 words (Logicmaster software)
• Discrete I/O Capacity: 2048 inputs / 2048 outputs
• Analog I/O Capacity: 2048 inputs / 512 outputs
• Scan Speed: 0.22 ms per 1K Boolean contacts

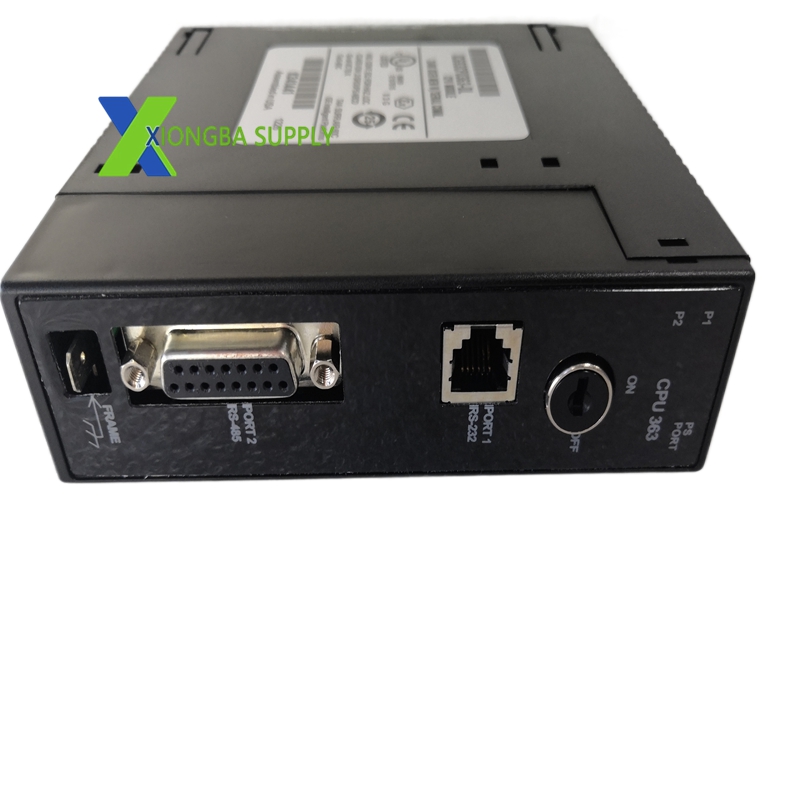

• Communication Ports:
  • 1 × RJ45 (RS-232/RS-485)
  • 1 × 15-pin D-sub (RS-232/RS-485)
  • 1 × RS-485 (on power supply)
• Supported Protocols: SNP, SNPX, Modbus RTU (Master/Slave), Serial Read/Write
• Power Supply: +5 VDC (from backplane), 890 mA
• Operating Temperature: 0°C to +60°C (32°F to 140°F)
• Storage Temperature: -40°C to +70°C (-40°F to 158°F)
• Dimensions (W×H×D): 40 × 130 × 80 mm (single-slot width)
• Weight: Approximately 0.3 kg
• Certifications: CE, UL

Key Features

1. Powerful 32-bit Processing
   • Equipped with a 25 MHz 80386EX processor, ensuring fast execution of complex control logic and Boolean operations.
   • Delivers a high scan speed of 0.22 ms per 1K logic, optimizing system response times for time-critical applications.
2. Ample Memory Capacity
   • Provides 240 KB of user memory for storing large programs, data logs, and configuration parameters.
   • Supports expandable register memory, accommodating up to 32,640 words for advanced data handling.
3. Versatile Communication Interfaces
   • Features three independent serial ports (RJ45, D-sub, and power supply-mounted) supporting RS-232/RS-485 standards.
   • Facilitates seamless connectivity with HMIs, SCADA systems, programming devices, and third-party peripherals.
   • Supports multiple protocols, including SNP, SNPX, and Modbus RTU, ensuring compatibility with diverse network environments.
4. High I/O Handling Capability
   • Controls up to 4096 discrete I/O points (2048 inputs/2048 outputs) and 2560 analog I/O points (2048 inputs/512 outputs).
   • Manages extensive local and remote I/O networks, supporting up to seven expansion baseplates for system scalability.
5. Robust & Reliable Design
   • Industrial-grade construction with a wide operating temperature range (0°C to +60°C), ensuring durability in harsh conditions.
   • Includes LED indicators for RUN, STOP, I/O Fault, and Battery Low, enabling real-time system status monitoring.
   • Optional lithium battery backup preserves RAM program and data during power outages.

Application Scenarios

• Manufacturing & Assembly
  • Automotive: Controls conveyor systems, robotic workcells, and assembly line machinery.
  • Packaging & Material Handling: Manages sorting machines, palletizers, and warehouse automation equipment.
• Process Industries
  • Water & Wastewater: Regulates pump stations, filtration systems, and chemical dosing processes.
  • Food & Beverage: Oversees temperature, pressure, and flow control in mixing, cooking, and bottling lines.
  • Chemical & Petrochemical: Monitors and controls reactors, pipelines, and storage tanks.
• Energy & Utilities
  • Power Generation: Manages auxiliary systems in thermal power plants, including fuel handling and water treatment.
  • HVAC: Controls heating, ventilation, and air conditioning systems in commercial and industrial buildings.
• Machine Building & OEM Equipment
  • Textile Machinery: Operates looms, spinning machines, and fabric processing equipment.
  • Plastics & Rubber: Controls injection molding machines, extruders, and conveyor systems.
