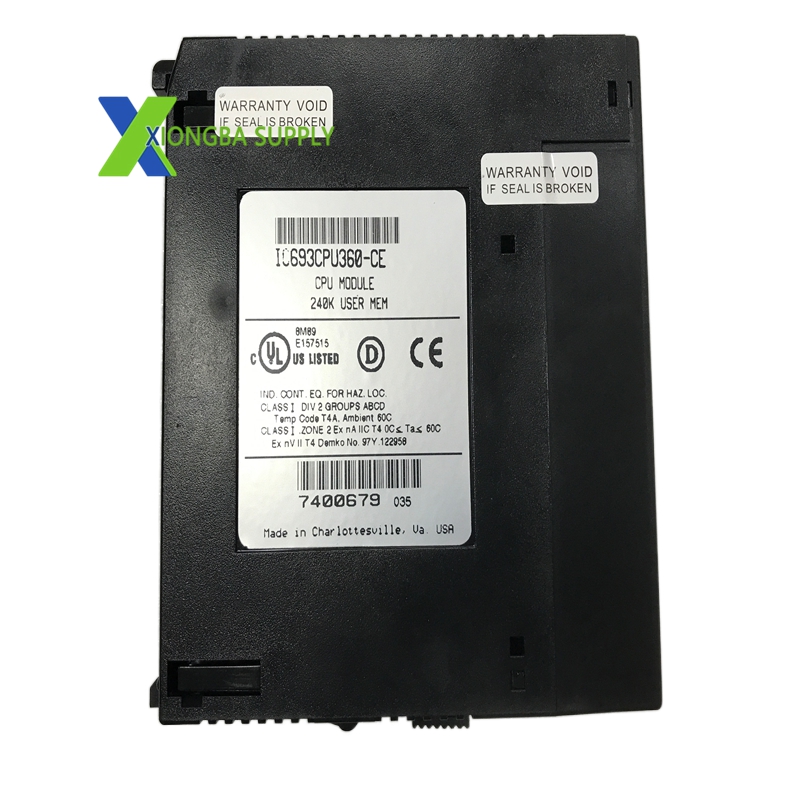

GE IC693CPU360 Series 90-30 PLC CPU Module

Technical Specifications

• Manufacturer: GE Fanuc (Emerson Automation Solutions)
• Model: IC693CPU360
• Series: GE Fanuc Series 90-30 PLC
• Processor: 32-bit 80386EX microprocessor, 25 MHz clock speed
• User Memory: 240 KB configurable (RAM and Flash memory)
• Scan Rate: 0.22 ms per 1K Boolean logic (fast execution)
• I/O Capacity:
  • Discrete: Up to 4,096 total points (2,048 inputs / 2,048 outputs)
  • Analog: Up to 2,048 %AI channels / 512 %AQ channels
• Baseplate Support: Controls up to 8 baseplates (1 CPU + 7 expansion/remote)
• Power Consumption: 670 mA from +5 VDC backplane
• Operating Temperature: 0°C to +60°C (32°F to 140°F)
• Storage Temperature: -40°C to +85°C (-40°F to 185°F)
• Dimensions (H×W×D): 104 × 130 × 36 mm (4.1 × 5.1 × 1.4 in)
• Weight: 0.45 kg (0.99 lbs)
• Programming Software: LogicMaster 90, VersaPro, CIMPLICITY Machine Edition

Key Features

1. High-Speed Processing & Large Memory
   • 32-bit 25 MHz 80386EX CPU delivers rapid logic execution for complex control tasks.
   • 240 KB combined RAM/Flash memory supports large user programs, data logging, and advanced algorithms without program segmentation.
2. Extensive I/O & Network Expansion
   • Controls up to 4,096 discrete and 2,048 analog I/O points across 8 racks, ideal for large-scale systems.
   • Connects to Genius distributed I/O networks and PROFIBUS DP (via communication modules) for distributed control architectures.
3. Robust Program Execution & Data Handling
   • Supports ladder logic, function block diagram (FBD), and structured text programming for flexible design.
   • Battery-backed real-time clock (RTC) ensures data logging accuracy and event timestamping.
   • Flash memory enables firmware updates and program storage without battery power.
4. Industrial-Grade Reliability
   • Single-slot, compact design fits standard Series 90-30 baseplates for easy integration.
   • Wide temperature tolerance and vibration resistance ensure stable operation in harsh factory environments.
   • LED status indicators for power, run, fault, and I/O activity simplify on-site monitoring.

Application Scenarios

• Manufacturing & Automotive
  • Controls assembly lines, robotic workcells, and conveyor systems with high-speed logic and large I/O counts.
  • Manages machine tools, press lines, and material handling equipment in automotive and general manufacturing.
• Process Industries
  • Water & Wastewater: Monitors and controls pumps, valves, and sensors for treatment plant automation.
  • Food & Beverage: Regulates temperature, pressure, and flow in mixing, bottling, and packaging lines.
  • Chemical & Petrochemical: Executes batch control and safety interlocks for reactor and pipeline processes.
• Energy & Infrastructure
  • Power Generation: Controls boiler systems, turbine auxiliaries, and balance-of-plant equipment in thermal power stations.
  • Renewable Energy: Manages wind farm and solar plant I/O networks and data acquisition systems.
• System Modernization & Expansion
  • Upgrades legacy Series 90-30 systems with larger memory and faster processing without full platform migration.
  • Supports brownfield expansions by integrating additional I/O and communication networks seamlessly。
