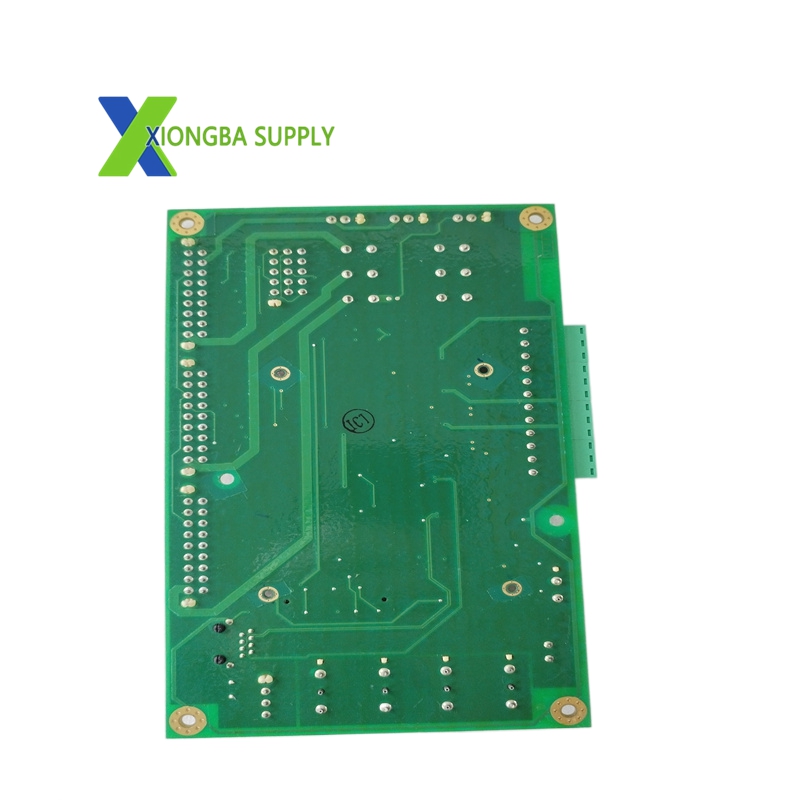

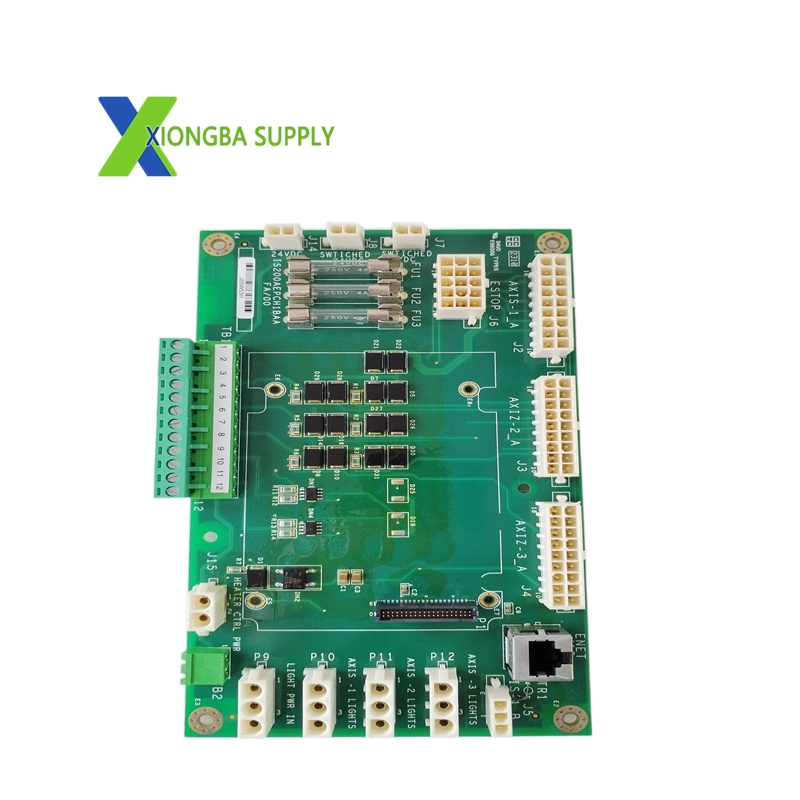

GE Fanuc IS200AEPCH1BAA Ethernet Port Module for Mark VIe

In stock

Product Overview:
The GE Fanuc IS200AEPCH1BAA is a dedicated Ethernet communication interface module for the Mark VIe turbine control system. This module provides the Mark VIe controller with a high-speed Ethernet port for connecting to plant networks, SCADA systems, DCS gateways, and engineering workstations. It supports standard industrial Ethernet protocols and enables remote monitoring, diagnostics, and programming of the Mark VIe controller without requiring a serial connection. It is the primary gateway for IIoT and Industry 4.0 integration in modern power plants.

Technical Specifications:
Series: GE Mark VIe Control System
Ethernet Ports: 2 x 10/100/1000Base-TX RJ45 Ports (Gigabit Ethernet)
Supported Protocols: TCP/IP, UDP, HTTP, HTTPS, FTP, SNMP v1/v2c/v3, DHCP, DNS, NTP, IEC 61850 MMS, Modbus TCP, PROFINET IO
Maximum Connections: 32 Simultaneous TCP Connections
Data Throughput: Up to 100 Mbps (Full Duplex)
Backplane Bus: GEnet (Mark VIe Backplane)
Operating Temperature: 0°C to +60°C
Power Consumption: < 4 Watts
MTBF: > 150,000 Hours

Functional Features:
Dual Gigabit Ports: Two independent Ethernet ports allow separation of control network and IT/SCADA network (DMZ architecture)
Network Redundancy: Supports RSTP (Rapid Spanning Tree Protocol) and MRP (Media Redundancy Protocol) for zero-downtime network failover
Embedded Web Server: Built-in web server allows configuration and monitoring via any standard web browser
SNMP Trap Support: Sends alarms and events to network management systems (NMS)
Secure Communication: Supports HTTPS, SSH, and IPsec for encrypted remote access
NTP Synchronization: Keeps controller time synchronized with plant network time servers

Performance Parameters:
Latency: < 1 ms (Local Network)
Packet Loss Rate: < 0.001%
Jitter: < 100 μs
Isolation: Ethernet Ports Isolated from Backplane > 1500V DC

Material Composition:
PCB: 6-Layer FR-4
Ethernet PHY: Marvell 88E1116 or Broadcom BCM54612 Gigabit PHY
Magnetics: Pulse H6062NL Gigabit Ethernet Transformer Modules
Connector: Shielded RJ45 with Integrated LEDs (Link/Activity/Speed)
Enclosure: Aluminum with EMI Gasket
