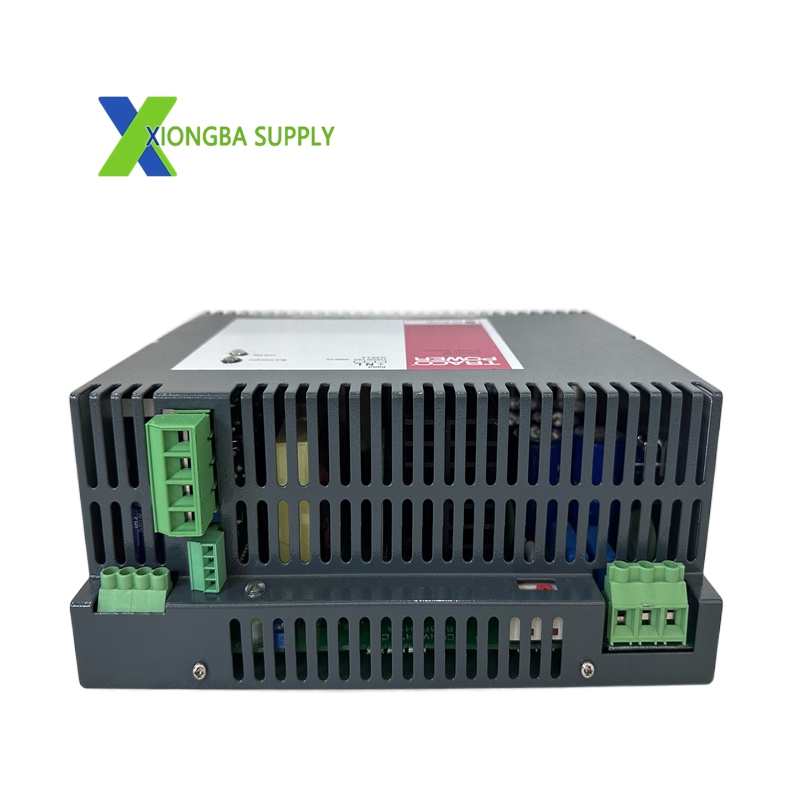

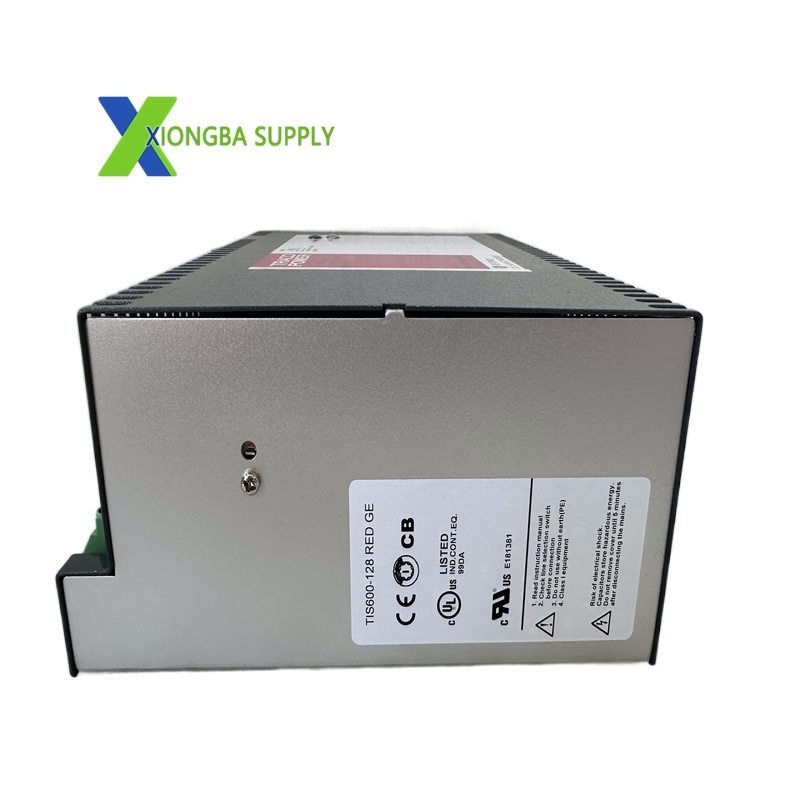

GE Fanuc TIS600-128-RED-GE - Series 600 Redundant Intelligent I/O Module with 128 Points

GE Fanuc TIS600-128-RED-GE – Series 600 Redundant Intelligent I/O Module with 128 Points

In stock

Product Introduction:
The TIS600-128-RED-GE is a high-density, redundant intelligent I/O module from the GE Fanuc Series 600 product family. The “TIS” designation stands for Termination Intelligent System, indicating it is a smart I/O module with local processing. The “600” identifies the Series 600 platform. The “128” indicates 128 total I/O points (a combination of inputs and outputs). The “RED” suffix confirms full redundant operation, meaning the module has dual processors and dual communication paths that operate in lockstep. The “GE” suffix confirms it is manufactured and tested to GE’s quality standards. This module is designed for large-scale applications where both high I/O density and absolute reliability are required.

Technical Specifications:
Platform: GE Fanuc Series 600 Intelligent I/O
Total I/O Points: 128 points (configurable as 64 input / 64 output, or other ratios)
Redundancy: Full redundant CPU and communication (dual everything)
Input Types: 24V DC, 120V AC, 4-20mA, RTD, Thermocouple
Output Types: 24V DC transistor, 120V AC relay, 4-20mA
Scan Time: 10ms for digital I/O, 50ms for analog I/O
Communication: GE Series 600 proprietary bus + Ethernet/IP optional
Isolation: 1500V RMS channel-to-channel isolation
LED Indicators: Per-point status LEDs (green for input active, red for output active)
Power: 24V DC from backplane or external supply
Form Factor: 6U Eurocard

Functional Features:
128 Points in One Slot: Extremely high density reduces the number of racks needed, saving space and cost.
Full Redundancy: Both processors execute the same program simultaneously; if one fails, the other takes over with zero data loss or glitch.
Local Intelligence: On-board processor handles signal filtering, scaling, and alarm processing, reducing CPU load.
Mixed Signal Support: Accepts virtually any field signal type (digital, analog, temperature) on the same module.
Hot Swappable: Can be removed and replaced while the system is running (in redundant configuration).
Self-Diagnosing: Continuously monitors its own health and reports faults to the main controller.

Application Scenarios:
Large Power Plants: Manages hundreds of field signals from a single rack in boiler, turbine, or balance-of-plant systems.
Oil Refineries: Controls large process units with extensive I/O requirements.
Water Treatment: Monitors and controls dozens of pumps, valves, and sensors from one intelligent module.
Manufacturing Lines: Serves as the main I/O rack for large production lines with hundreds of discrete and analog signals.
